SAE certified for reliability and operating on a 12-24VDC system, the Redline Instinct features front and side LEDs for comprehensive 360-degree illumination and is available in 48” and 54” widths.
Equipped with an auto-dimming light sensor to adapt to varying light conditions and an adjustable feet Type C or Low Profile Standard Feet mounting for versatile installation, the Redline Instinct offers programmable settings to tailor your lighting strategy to any scenario. Featured modes include Scene/Alley/Takedown, Cruise, Traffic Advisor, soft flash patterns, and Stop/Turn/Tail.
Also available in an Amber/White only configuration for non-emergency situations.
• 54” and 48” sizes available
• Dual or tri-color lighthead options
• Sensor for auto-dimming
• 360 degree seamless output that meet and exceed SAE standards

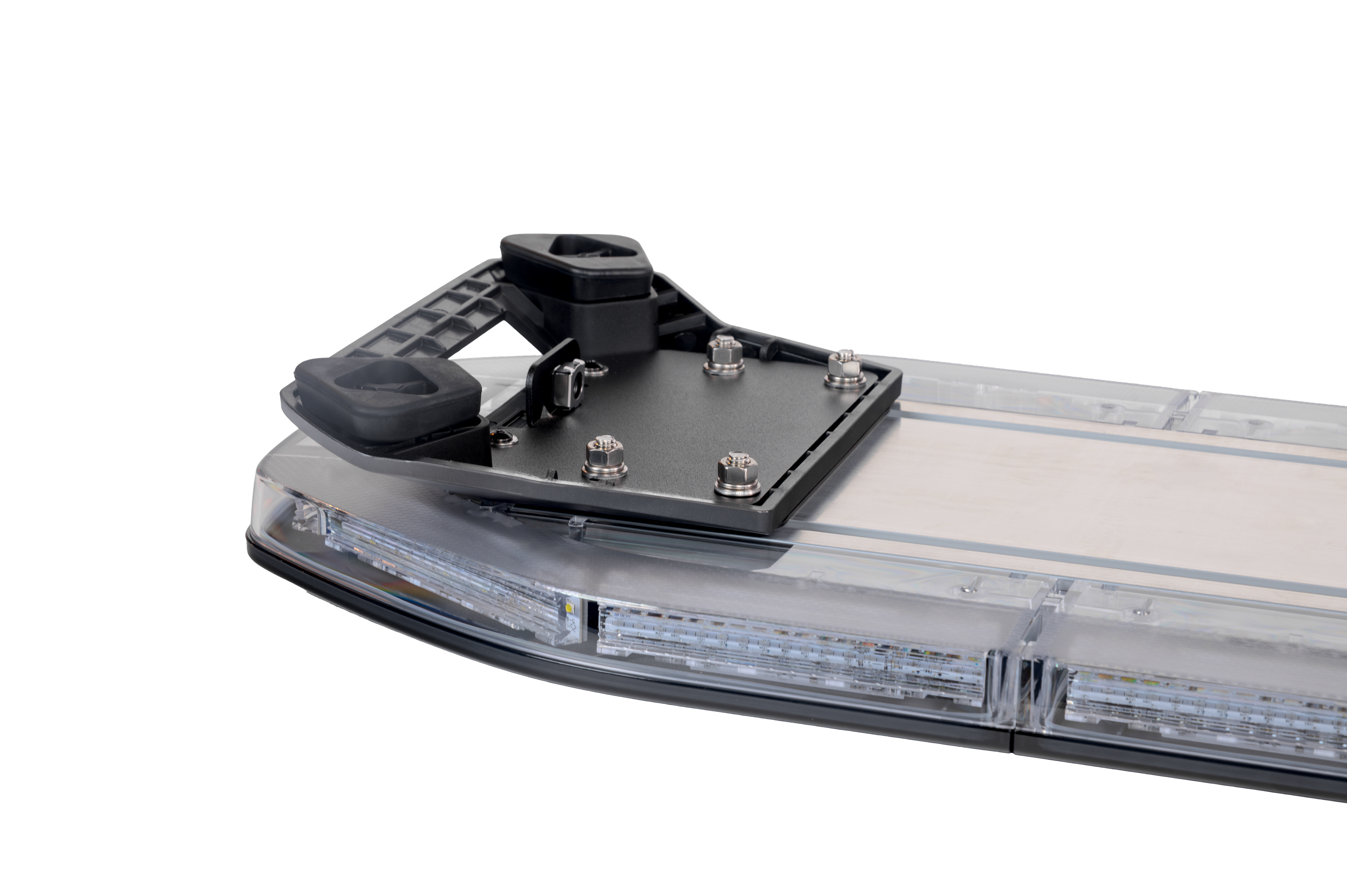

• Headache rack and other mounting options available
• Software programmable
Specifications
INSTINCT Lightbar (all models):
Width × depth: 12.14" × 1.57" (overall length varies; see table)
Power: 12-24V DC
Fuse rating @12V DC: 30A
Mount: Low Profile Feet
Certifications: SAE J845 Class 1, SAE J595 Class 1, CA Title 13, ECE R65 II (TA2/TB2/TR2), ECE R10; CISPR25, ICAO (A)
| Product | Part Number | Colors / configuration | Overall length | Max Amp. @12V DC | Peak Watt. |
|---|---|---|---|---|---|
| INSTINCT 48" LIGHTBAR | RL-INST-48-RBW-RBA | R/B/W front; R/B/A rear | 48" | 19.8A | 253.44W |
| INSTINCT 48" LIGHTBAR | RL-INST-48-AW-AW-STT | A/W with R STT | 48" | 19.8A | 253.44W |
| INSTINCT 54" LIGHTBAR | RL-INST-54-RBW-RBA | R/B/W front; R/B/A rear | 54" | 22A | 281.6W |
| INSTINCT 54" LIGHTBAR | RL-INST-54-AW-AW-STT | A/W with R STT | 54" | 22A | 281.6W |
