FireTech

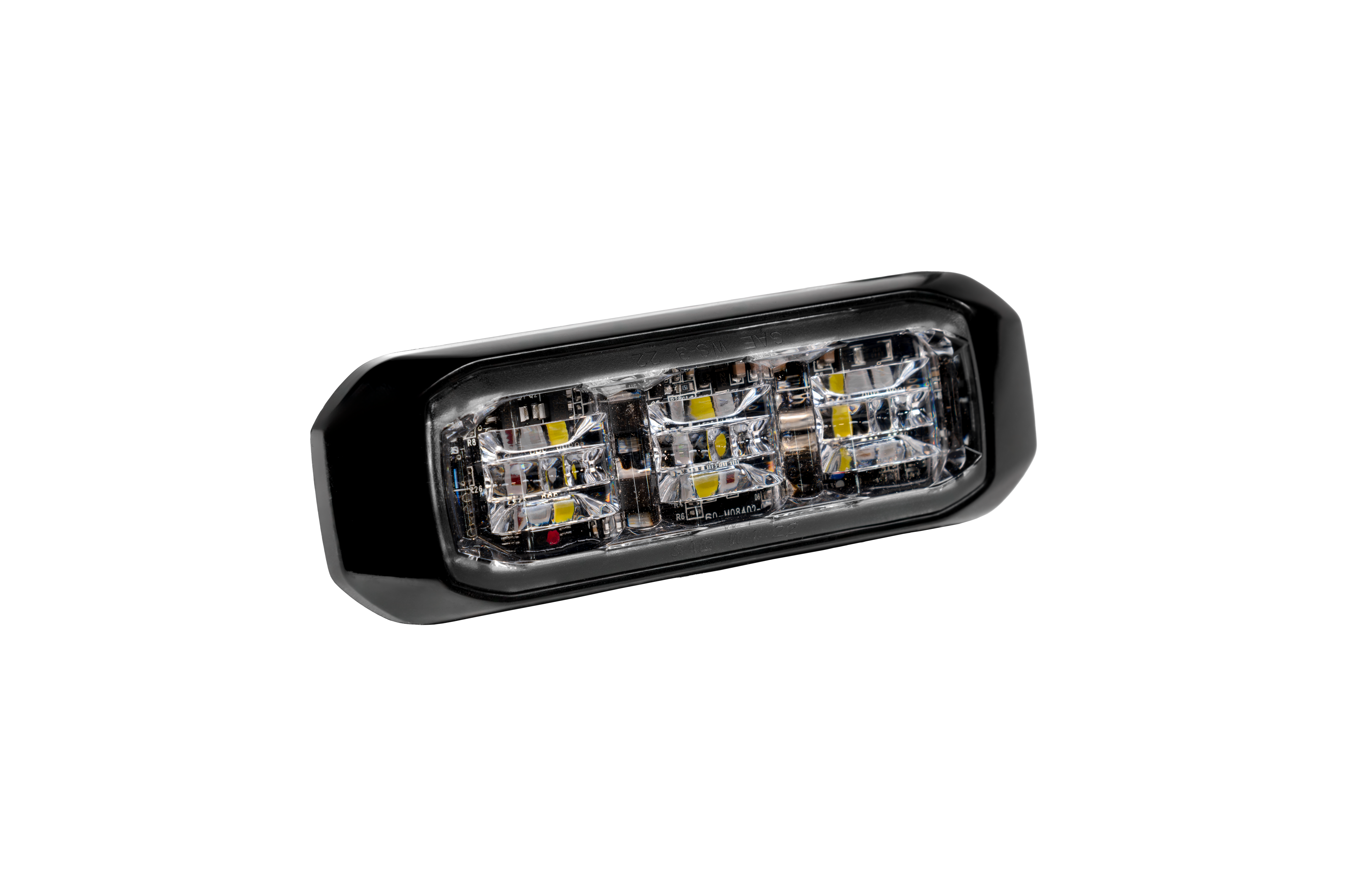

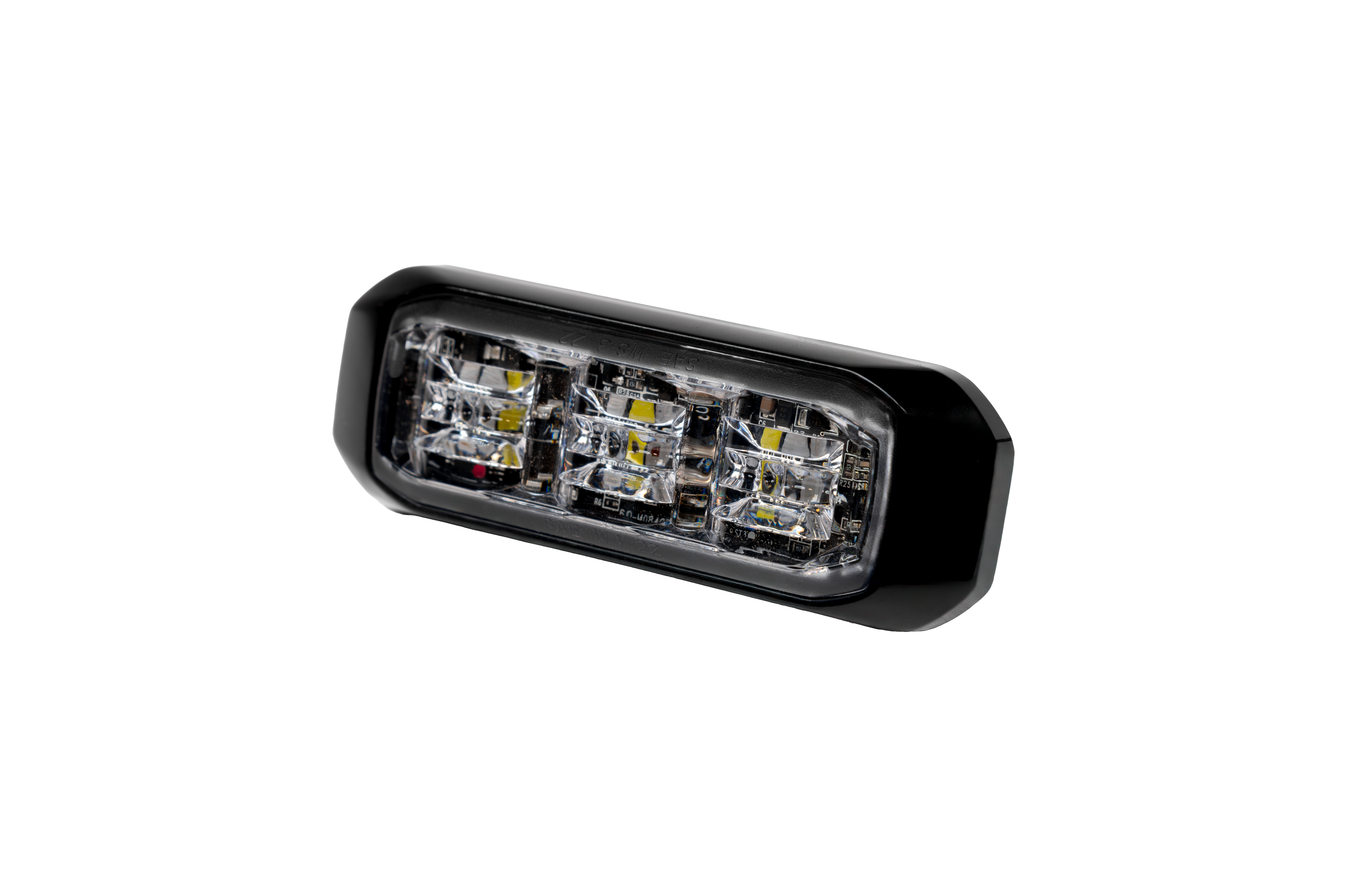

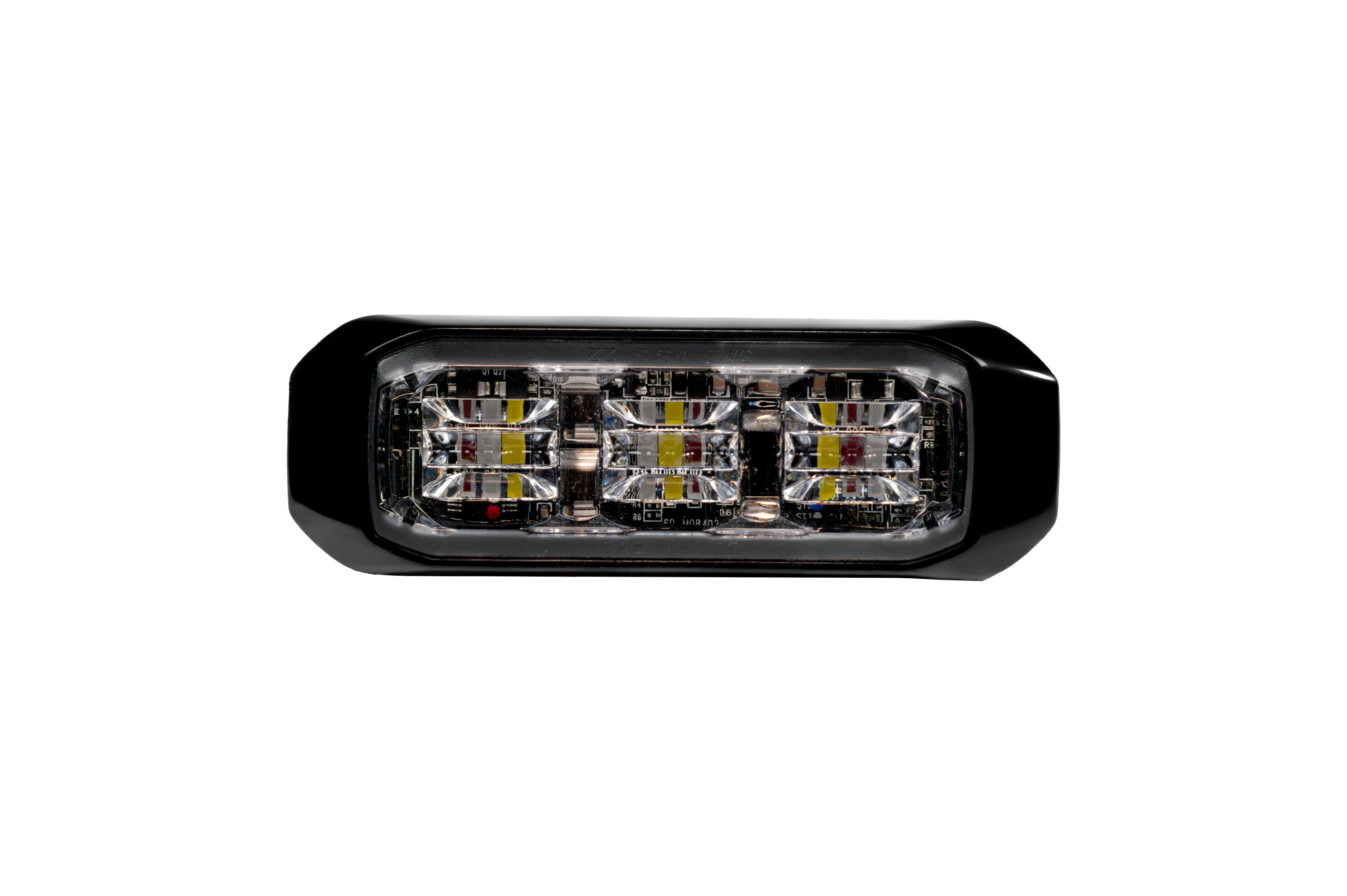

Surge Mini
Choose options
SAE certified for reliability, this module operates on a 12VDC system with 5 wires, offering 3 modes and 8 phases for versatile signaling options. Featuring 9 LEDs in either red/blue/white, red/blue/amber, or amber/white configurations behind a clear lens, it delivers vibrant, eye-catching illumination.
Paired with a durable black flange for easy mounting, the Redline Surge Mini combines sleek design with rugged durability, making it the perfect solution for enhanced visibility and safety on every mission.
• Dual and tri-color LED options available
• Mounting options sold separately
• Chrome bezel available
Specifications
SURGE MINI WARNING LIGHT (all models):
Dimensions (L, W, D): 3.42" × 1.16" × 0.45"
Max Amp. @12V DC: 0.78A
Peak Watt.: 9.36W
Power: 12V DC
Fuse rating @12V DC: 1A
Mount: Surface
Certifications: SAE J595 Class 1 (A, B, R, W), SAE J845 Class 1 (A, B, R, W), CA13 (A, B, R), CISPR25 Class 3, ECE R10
| Product | Part Number | Colors |
|---|---|---|
| SURGE MINI WARNING LIGHT | RL-SRG-MIN-RBA | R/B/A |
| SURGE MINI WARNING LIGHT | RL-SRG-MIN-RBW | R/B/W |
| SURGE MINI WARNING LIGHT | RL-SRG-MIN-AW | A/W |
