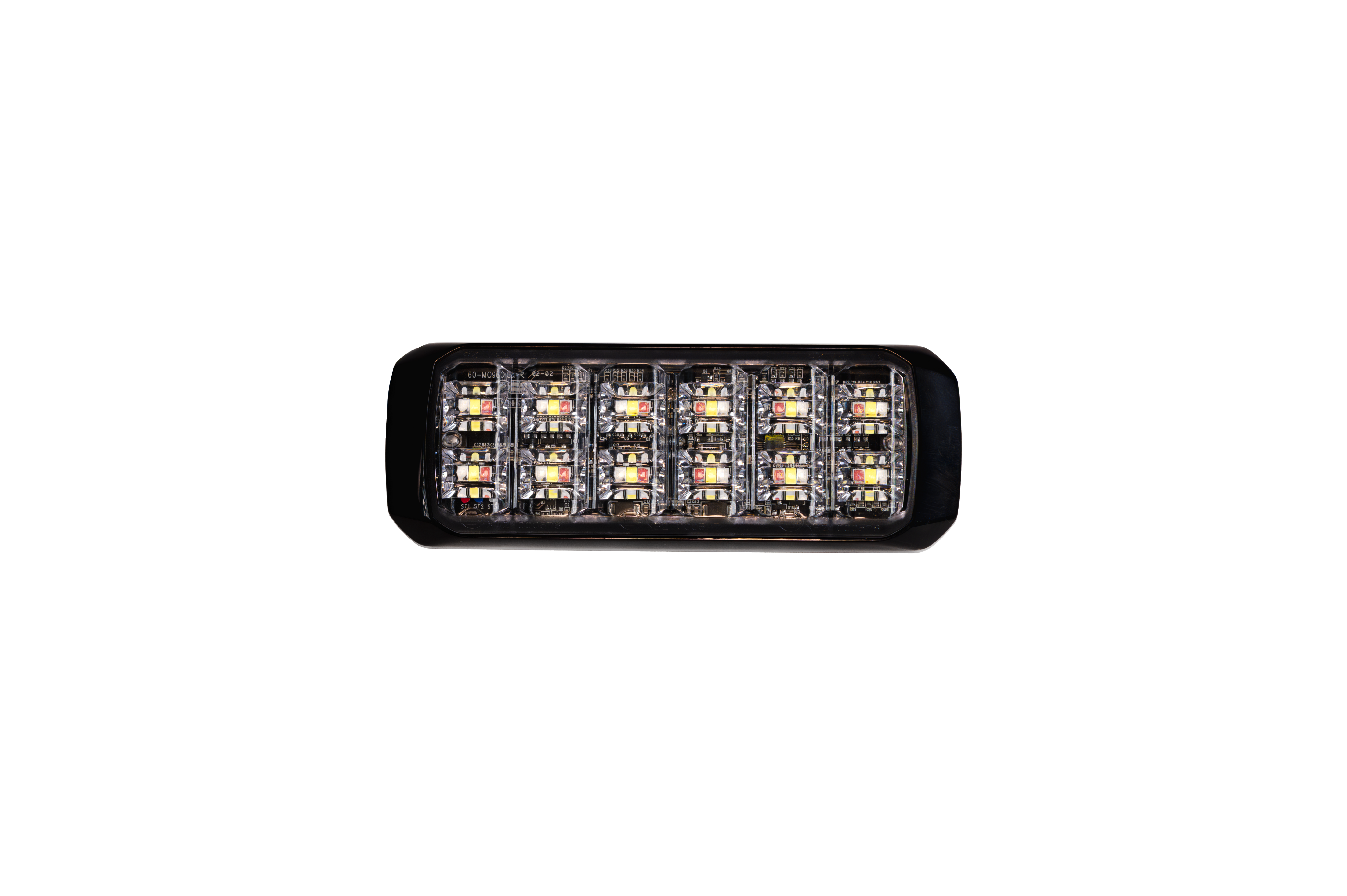

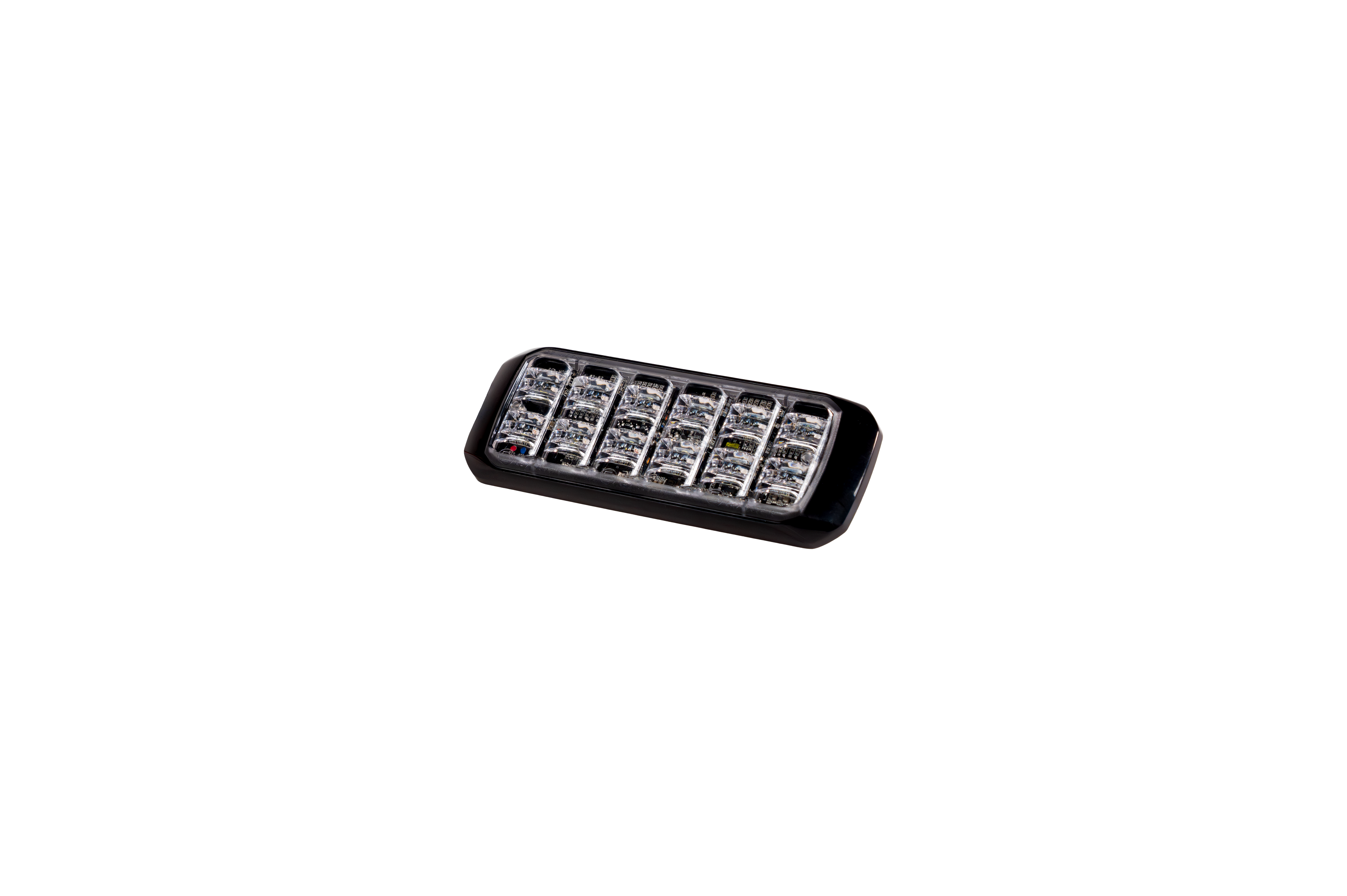

SAE certified for reliability, this robust module operates on a 12-24VDC system with 5 wires, offering 3 modes and 2 phases for adaptable signaling. Featuring 36 tri-color LEDs—available in red/blue/white, red/blue/amber, or amber/white—paired with a clear lens, it delivers intense, multi-color illumination to ensure you stand out in any condition.
Complete with a durable black flange for secure mounting, the Redline Surge Max combines cutting-edge technology with rugged construction, making it the go-to choice for enhancing safety and command presence on every mission.
• Dual and tri-color LED options available
• Optional covert tinted cover
• Mounting options sold separately
• Chrome bezel available
Specifications
SURGE MAX WARNING LIGHT (all models):
Dimensions (L, W, D): 5.22" × 1.88" × 0.46"
Max Amp. @12V DC: 2.24A
Peak Watt.: 26.88W
Power: 12-24V DC
Fuse rating @12V DC: 3A
Mount: Surface
Certifications: SAE J595 Class 1, SAE J845 Class 1, ECE R10, ECE R65 Cat. HT Class 2 (B), ECE R65 Cat. X Class 1 (A, B, R), CISPR 25 Class 3, IPX7, CA 13
| Product | Part Number | Colors |
|---|---|---|
| SURGE MAX WARNING LIGHT | RL-SRG-MAX-RBA | R/B/A |
| SURGE MAX WARNING LIGHT | RL-SRG-MAX-RBW | R/B/W |
| SURGE MAX WARNING LIGHT | RL-SRG-MAX-AW | A/W |
