See the Difference

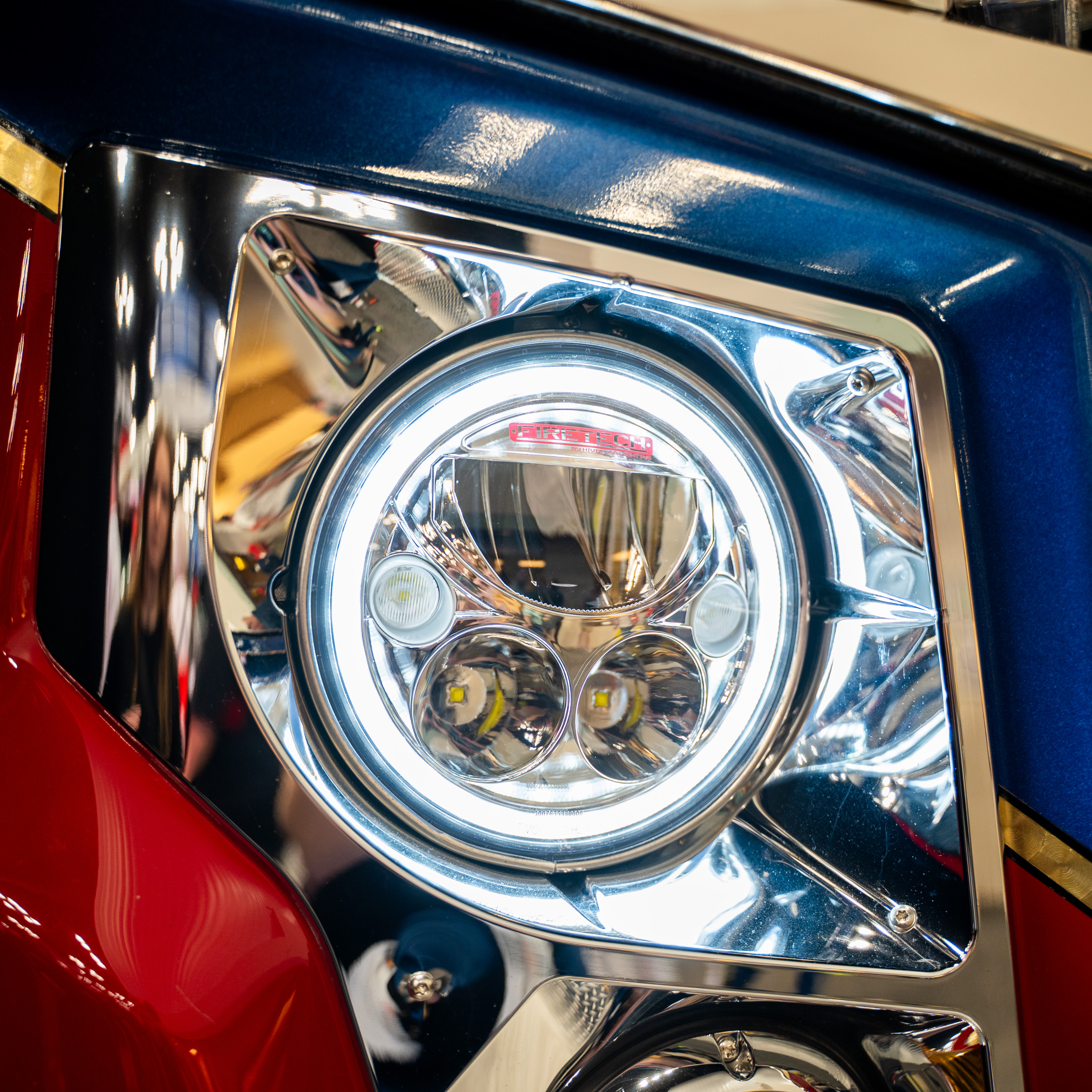

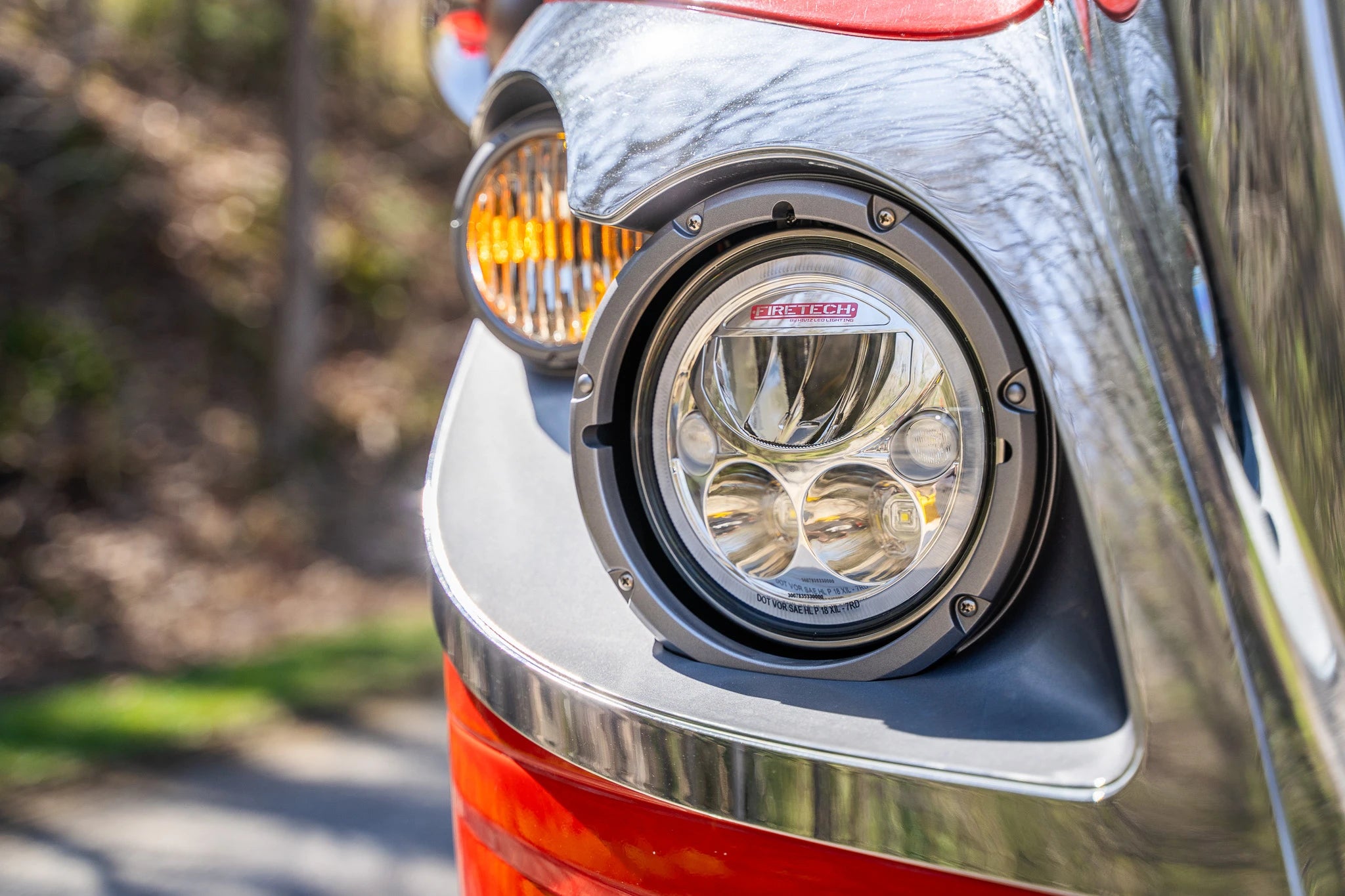

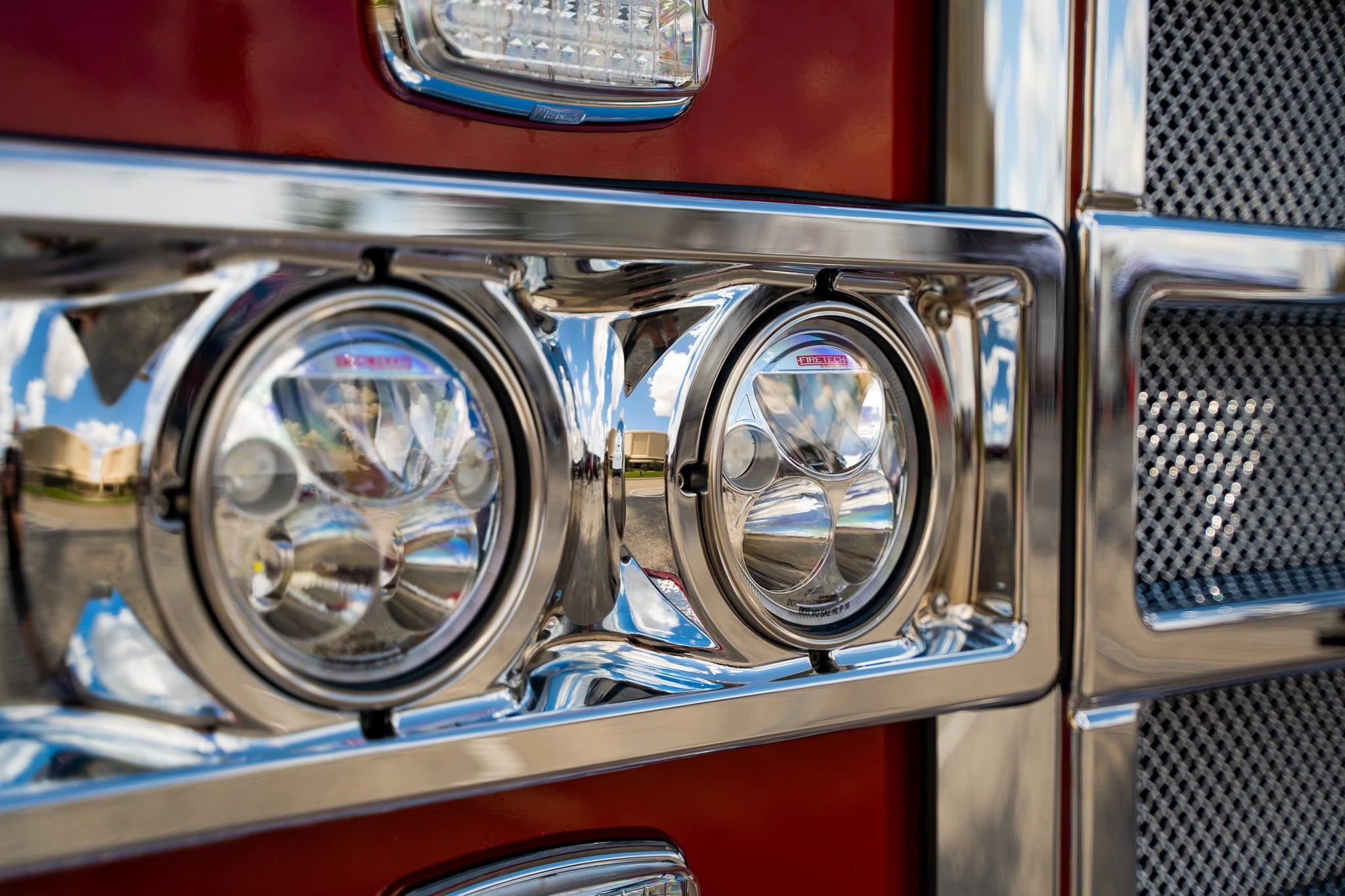

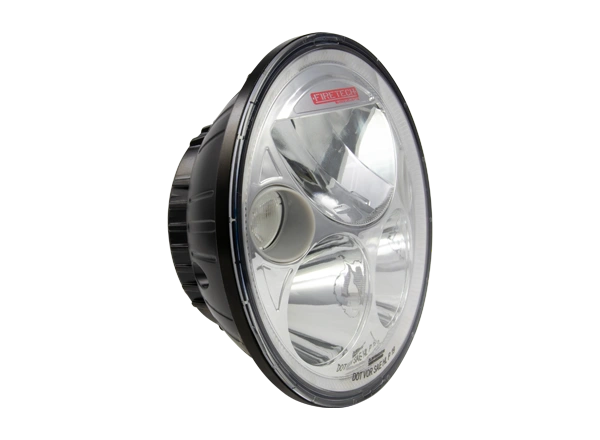

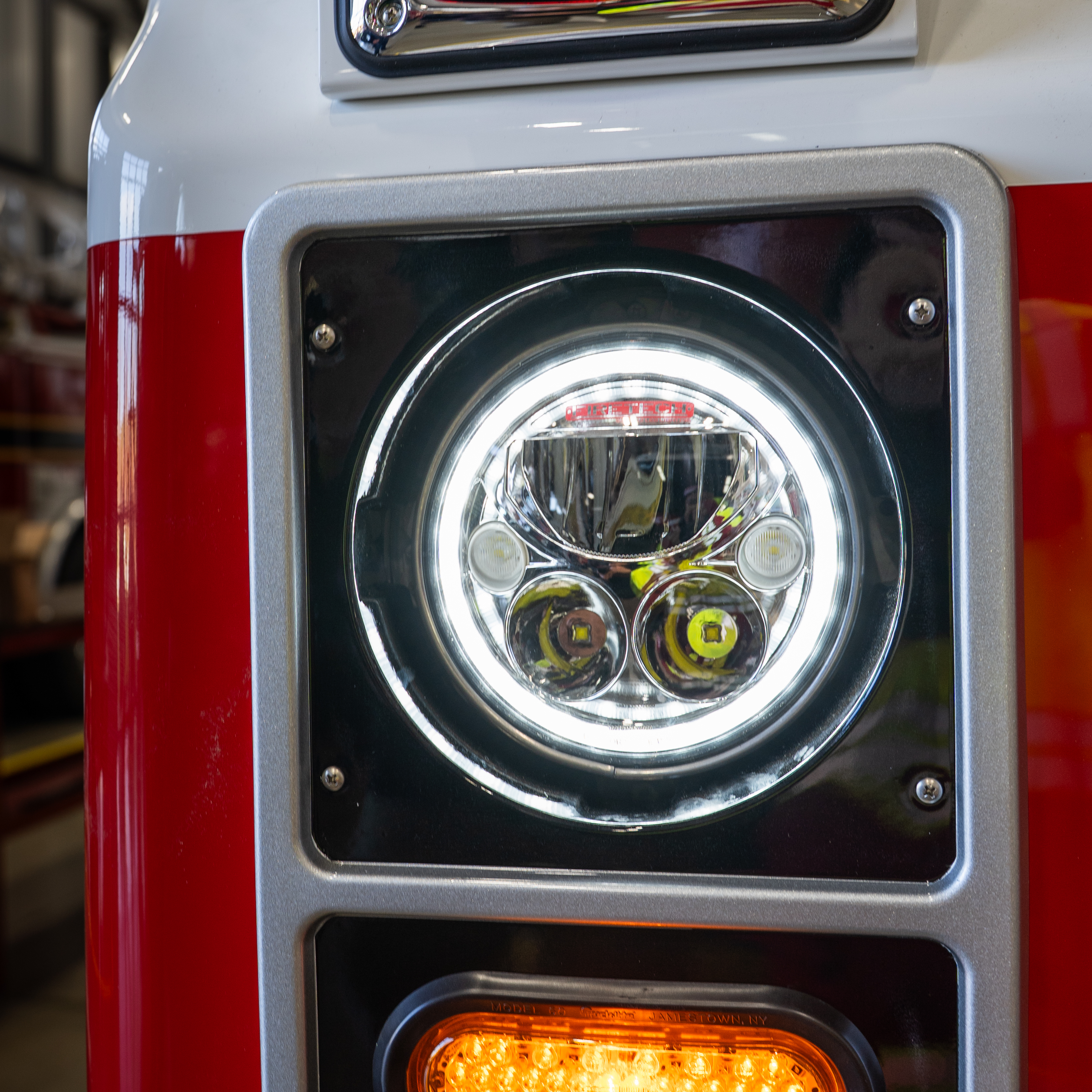

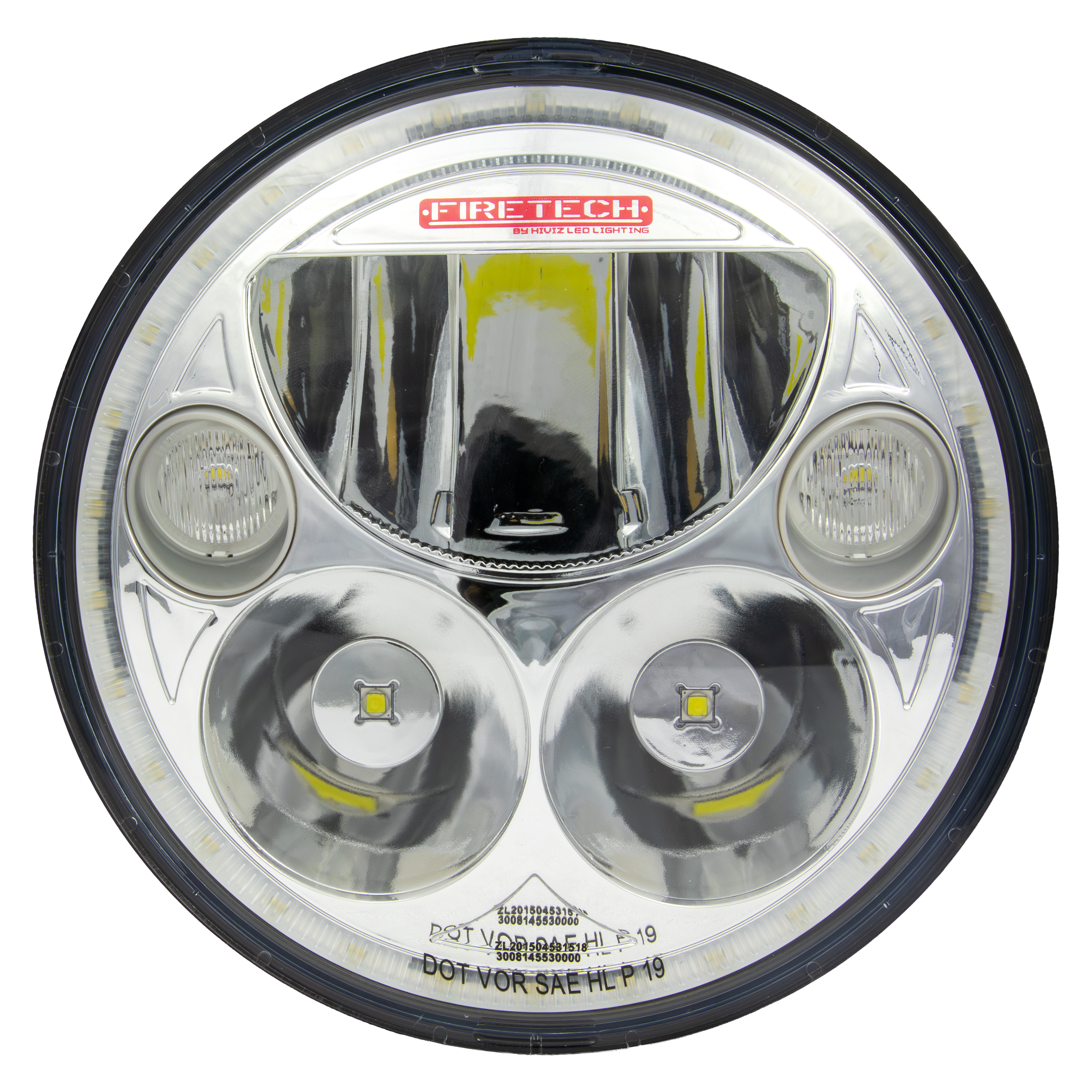

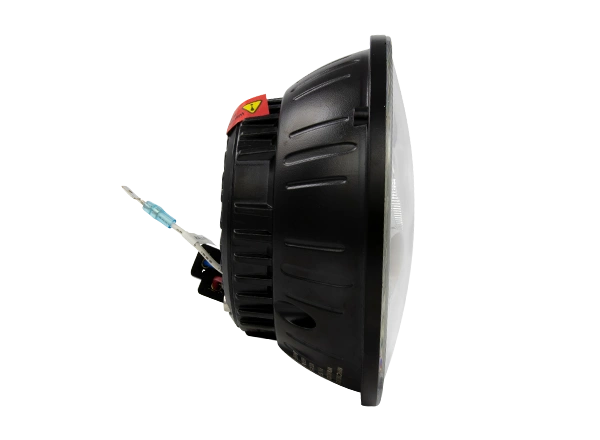

FireTech LED Headlights are a simple way to dramatically boost the total light output of your emergency vehicle. These headlight fixtures are a direct replacement for most of the stock headlights found on today’s apparatus. Other than superior light output, what sets our headlights apart specifically for the fire industry is the integration of an elliptical beam. This beam will provide light from the bumper, right up to where your low beams kick in. This important feature allows you to have usable light when you need to be working around the front of the apparatus. Within one housing, FireTech headlights have your low beam, high beam, elliptical beam, and an integrated halo ring park lamp around the outer edge. Meeting DOT requirements and featuring a lifetime warranty, there’s no reason not to choose these for your new or existing apparatus.

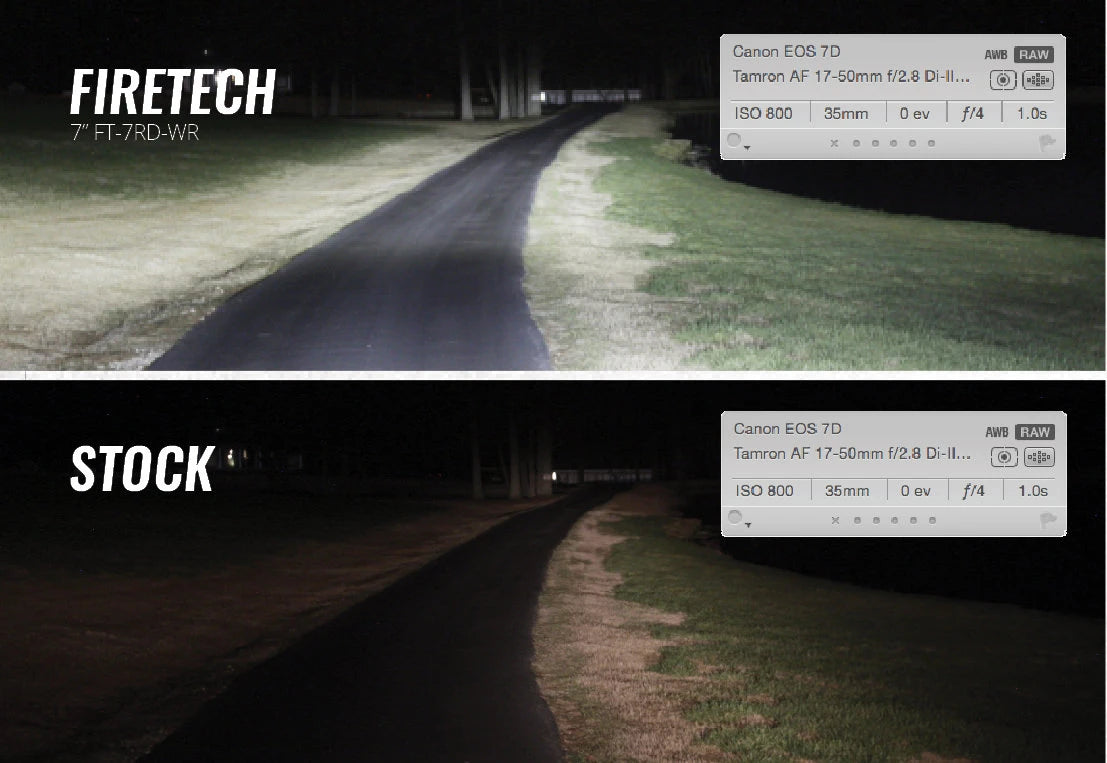

These photos were taken with the exact same camera settings. Take a look for yourself and see how the Firetech LED Headlights compare to a set of stock headlights!
Specifications
5.75" Headlights (all models): 9-32V DC input, IP68/69K, 21 GRMS vibration rating, 1,000 ft usable light.
| Model | Part # | Dimensions (LxWxH) | Max A @12.8V | Peak W |
|---|---|---|---|---|
| 5.75" Headlight DOT High Only | FT-575RD-H | 5.65" x 5.65" x 2.88" | 2.67A | 34.2W |
| 5.75" Headlight DOT High/Low (for low beam use) | FT-575RD-HL | 5.65" x 5.65" x 2.88" | 2.35A | 30.2W |
| 5.75" Kit with 2 High/Low Headlights | FT-575RD-HL-KIT | 5.65" x 5.65" x 2.88" | 4.7A | 60.4W |
| 5.75" Kit with 4 Headlights (2 High/Low + 2 High Only) | FT-575RD-4KIT | 5.65" x 5.65" x 2.88" | 10.04A | 128.8W |
