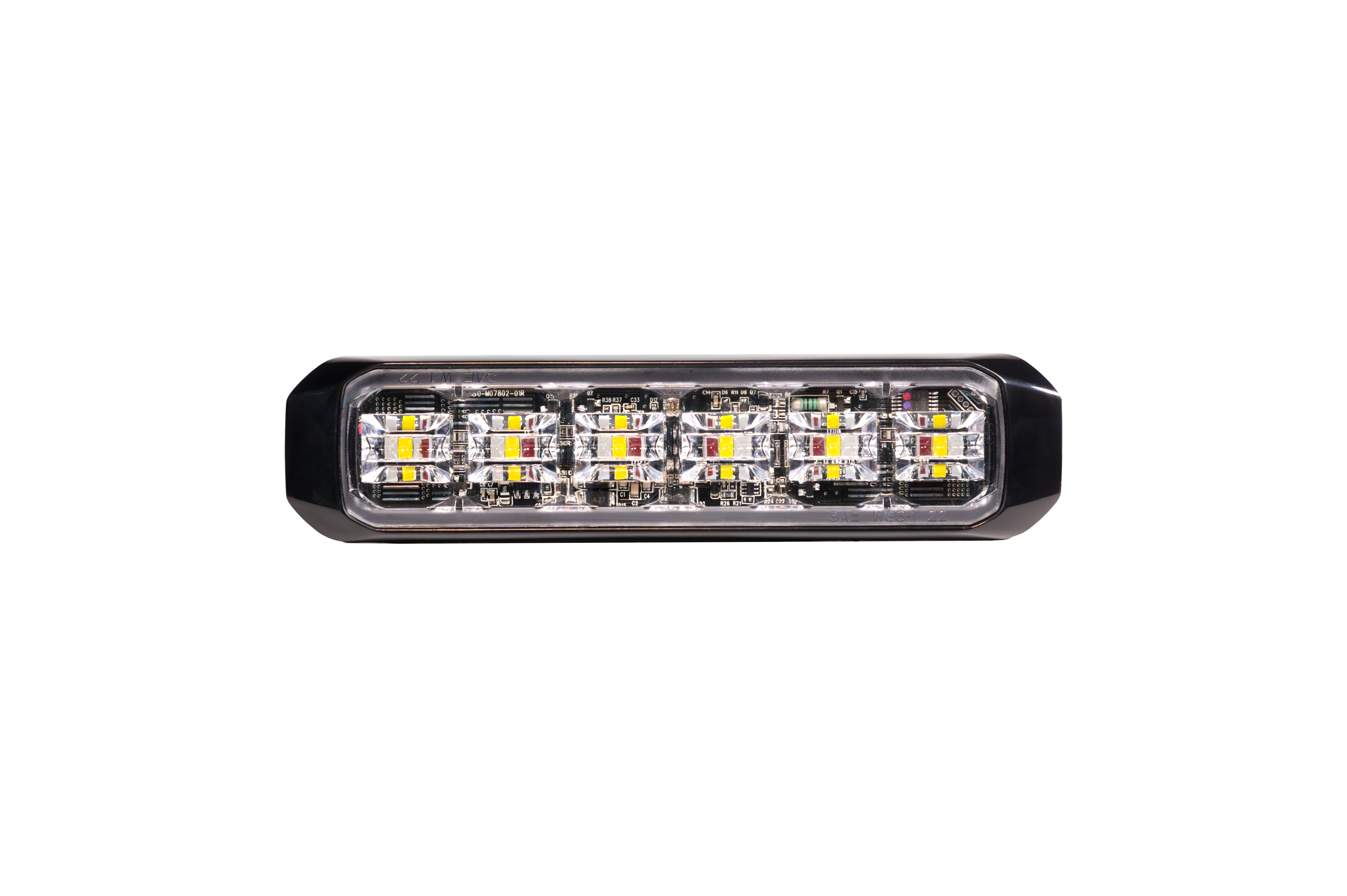

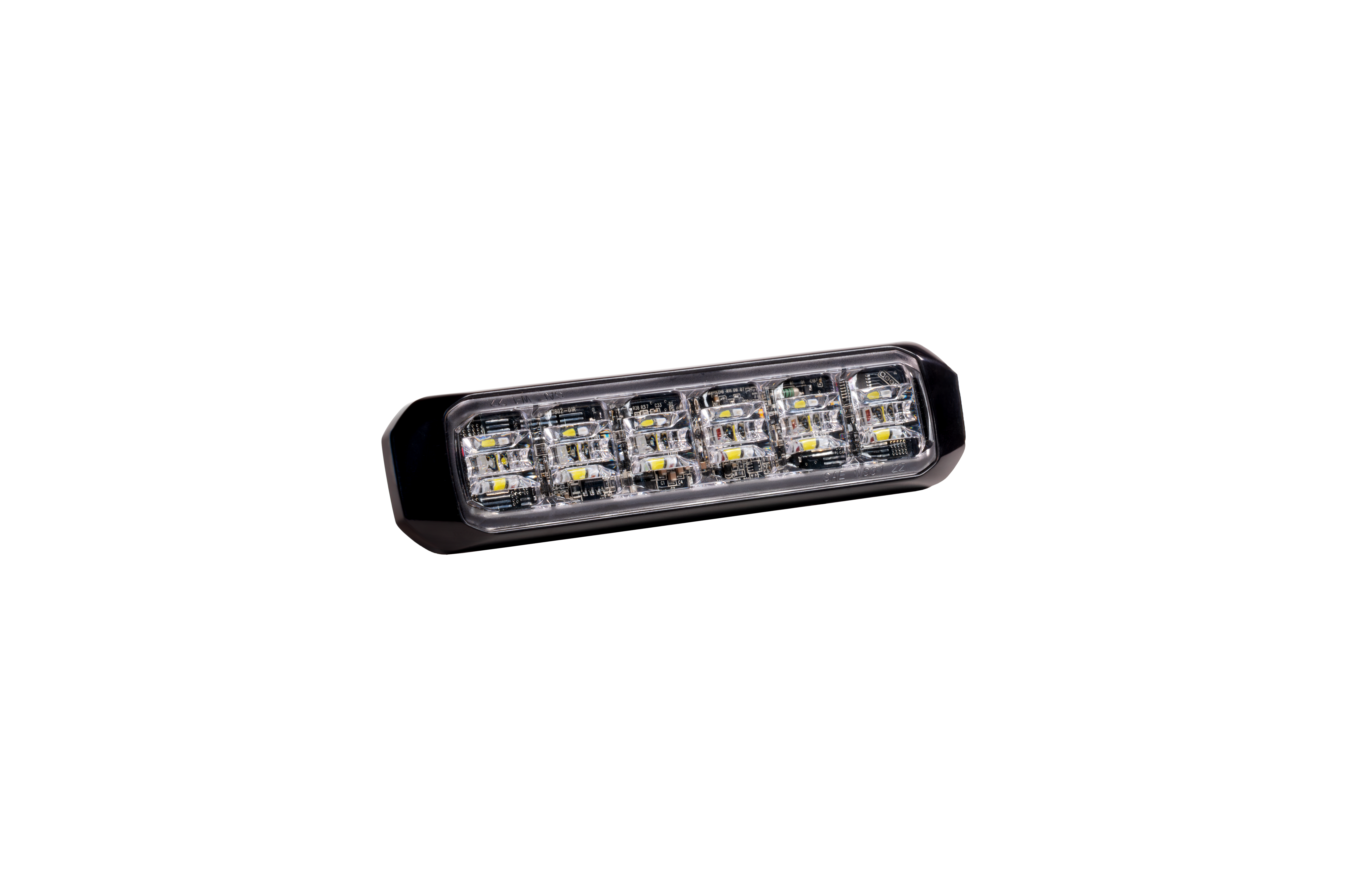

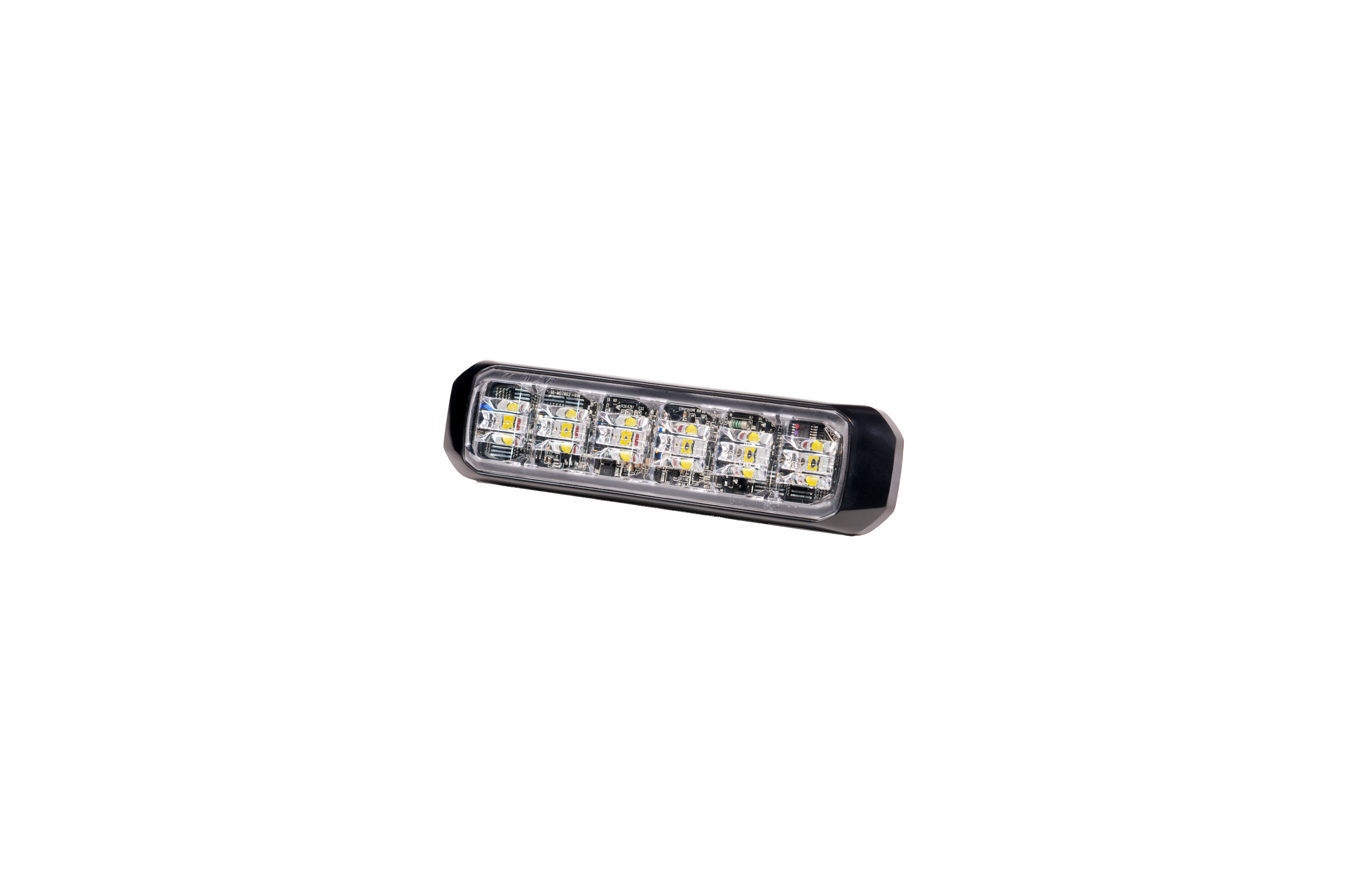

SAE certified for reliability, this compact module operates on a 12VDC system with 5 wires for flexible installation, offering 3 modes and 8 phases to adapt to any scenario. Featuring 18 tri-color LEDs—available in red/blue/amber, red/blue/white, or amber/white—paired with a clear lens and black bezel, the Redline Surge delivers vibrant, eye-catching illumination to enhance safety and visibility.
• Dual and tri-color LED options available
• Optional covert tinted cover
• Brackets and 3M adhesive mounting options sold separately
• Chrome bezel available
Specifications
SURGE WARNING LIGHT (all models):
Dimensions (L, W, D): 5.22" × 1.25" × 0.46"
Max Amp. @12V DC: 1.04A
Peak Watt.: 12.48W
Power: 12V DC
Fuse rating @12V DC: 2A
Mount: Surface
Certifications: SAE J595 Class 1, SAE J845 Class 1, CA 13, ECE R10, ECE R65 Cat. HT Class 2 (B) ECE R65 Cat. X Class 1 (A, B, R), CISPR 25 Class 3, IPX7
| Product | Part Number | Colors |
|---|---|---|
| SURGE WARNING LIGHT | RL-SRG-RBA | R/B/A |
| SURGE WARNING LIGHT | RL-SRG-RBW | R/B/W |
| SURGE WARNING LIGHT | RL-SRG-AW | A/W |
