This is Post 3 in FireTech's brow light series.
The classic FireTech Brow Light is still the fixture most people mean when they write “FireTech brow.” Not because it's old. Because it's the one that made a brow light a real product instead of a scene bar on the roof. Multi-circuit optics in one housing. Optional DOT markers on their own circuit. A rail that holds the extrusion so it doesn't flex and leak. And a 3-piece kit for the cabs that laugh at a straight 72-inch stick.
Thinner, brighter, and guaranteed for the life of the apparatus. That line has been on FireTech literature for a reason.
Five lights in one housing
A classic Brow Light isn't a single flood bar with a fancy name. Inside the extrusion you get distinct optical groups on split circuits:
- Wide flood for coverage close to the truck
- Narrower flood for the mid field
- Spot for distance: addresses, upper stories, the thing you need to see before you need to see everything
That's the “dominate the scene” claim in practical terms. Range and coverage from one fixture, switched the way the department actually works, instead of three separate lights fighting for the same six inches of roof.
Optional integrated marker lights ride in the same housing on a separate circuit. They're optically grouped, independent LEDs and optics that share a housing, not optically combined. Marker function doesn't depend on the scene circuits being on, and the fixture is built to stay on the right side of FMVSS 108 and SAE J2042. FireTech has a full explainer if your spec writer wants the legal version: What Are Marker Lights?
Current Brow Light lineup
All models: 9–32V DC, IP67/69K (the 3-piece kits are listed IP68/69K on their product page), 21 GRMS vibration. Housings in white or black.
Confirm the 54" 2-piece part number with FireTech when you write the spec. The current product table on the Brow Lights page reuses a marker-light SKU in that row; treat it as a “call us” line, not a copy-paste.

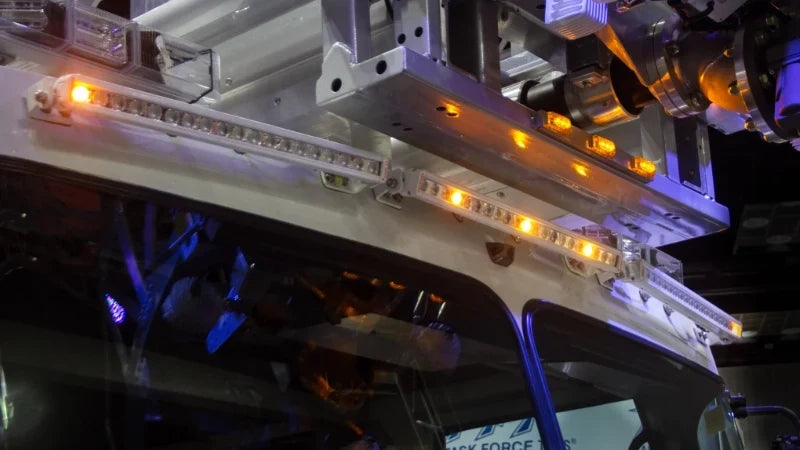

Why the 72" 3-piece kit exists
A 72-inch one-piece brow is a beautiful thing on a cab with a straight leading edge. On a radiused roof it's a liability. The bar wants to sit as a chord across a curve. Feet end up loaded wrong. The housing can flex. Flex is how moisture gets in.
The 3-piece kit breaks that 72-inch idea into three shorter sections that follow the roof line:
- One center section at 27.32"
- Two outboard sections at 23.52" (24.8" on the marker-light kit)
Output stays in the same neighborhood as the one-piece 72", about 29,700 raw lumens without markers, 28,512 with the five-marker package. You're not giving up the light to get the fit.
Cabs FireTech calls out as strong candidates:
- E-ONE Quest
- Sutphen
- Rosenbauer
If you're looking at a rounded cab and the bid just says “72-inch FireTech brow,” write the 3-piece kit on purpose. Sam Massa has made that point in the trade press: the multipart brow is engineered for rounded cabs so more departments can actually run the light.
The 54" two-piece for aerials
Aerial cabs and some body geometries don't want a single long extrusion across the front. The 54" 2-piece kit (two ~27" sections, 21,882 raw lumens) is the split built for that problem. Same family, different chop.
Mounting that doesn't flex the housing
The unglamorous reason these lights last is the rail. Feet attach along the extrusion, roughly every 12 inches in the original design intent, so the housing is supported as a structure instead of a span.
Common hardware:
- Cab bracket — 3" radius surfaces, shared with single-stack MiniBrow
- Pedestal bracket — flat surfaces
- L-foot — vertical surface, fixture still supported along its length, remains vertically adjustable
- J-foot — mounts a Brow or MiniBrow directly under an OMEN warning lightbar, which keeps you from punching a second set of holes in the cab roof
Aim stays in the deal after the feet are tight. That's the difference between a brow light and a flood you hope was pointed at the right patch of pavement on install day.
Spec tips
- Match length to cab width and the marker plan. Don't order a no-marker 72" and then try to float three ID lights in the leftover gaps.
- If markers are in the brow, treat them as part of the FMVSS 108 story, not decoration. Spacing still matters.
- Call the 3-piece kit by name on radiused cabs. “72-inch brow” is mush in a bid.
- White versus black is a finish choice. It's not a performance choice.
- Classic Brow Lights and MiniBrow share mounting language on purpose. A cab brow plus body MiniBrows is one package, not two random vendors.
