Thinner, Brighter, and Guaranteed Forever. That’s the FireTech way.
The FireTech Brow Light is the ultimate lighting solution for the front of your Fire Apparatus. Available with optional Integrated DOT Marker lights and split circuits, this product is the first fixture specifically designed from the ground up for use on the front of an apparatus cab. Designed by firefighters for firefighters, this multi-part brow light option is specifically engineered to meet the needs of emergency personnel in the circumstances where they cannot afford losing even a lumen of light. As many apparatuses are designed with rounded cabs these days, our 3-piece FireTech Brow Light allows many more firefighters access to the light of our brow lights!
Multiple Mounting Options
Cab Bracket
For use on 3” radius surfaces with single stack MiniBrow and brow lights.
Pedestal Bracket
For use on flat surfaces.
L-Foot Bracket
The P-MB-LFOOT kit enables mounting of a FireTech Brow Light to a vertical surface while still supporting the fixture along the length of the extrusion.
Once mounted, the light remains adjustable vertically. This means that you are able to mount one of our emergency scene lights and know that it can still be flexible enough to serve your needs.
Available in White or Black.
Specifications
72" 3-Piece (all models): 285W peak, 9-32V DC input, IP68/69K, 21 GRMS vibration rating.
| Model | Part Number | Length | Raw Lumens | Circuits | Marker Lights | Max. Amp. @12.8V |
|---|---|---|---|---|---|---|

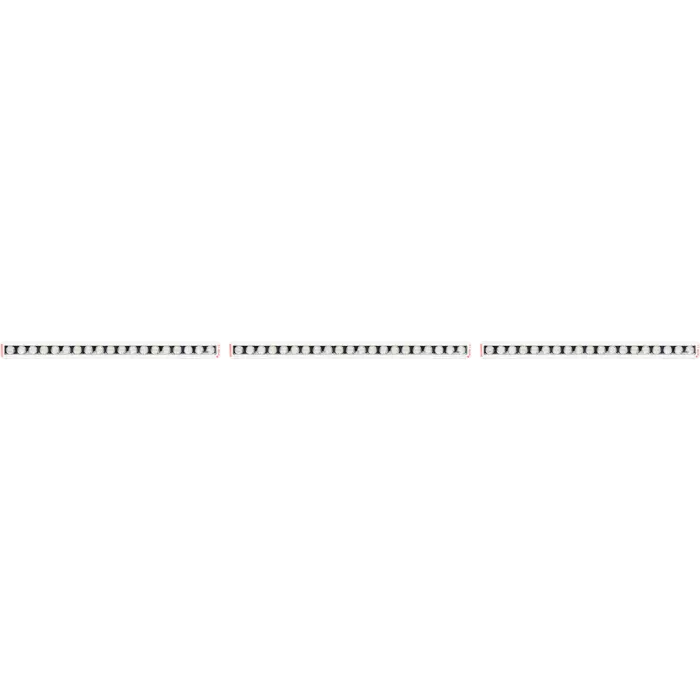

| 72" 3-Piece Brow Light Kit | FT-B-72-3PKIT-* | 1× 27.32" 2× 23.52" | 29,697 lm | 3 | 0 | 23.89A |

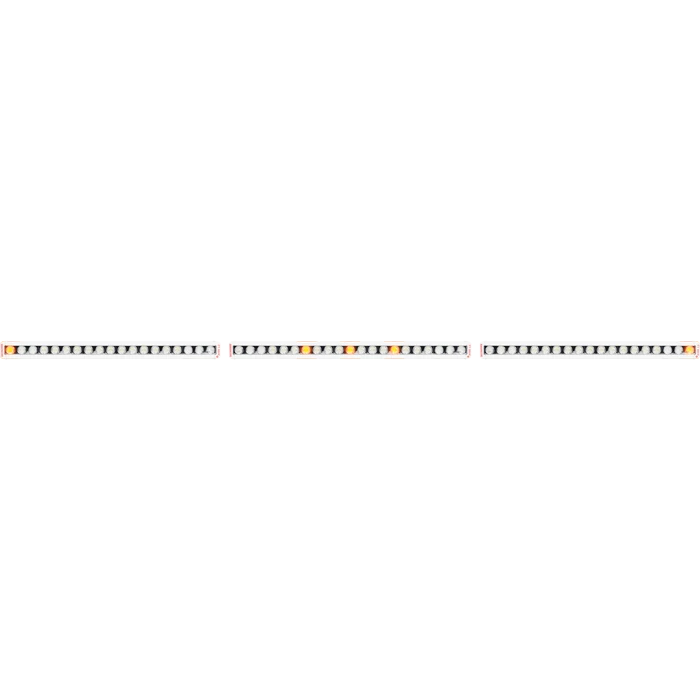

| 72" 3-Piece Brow Light Kit With Marker Lights | FT-B-72-ML-3PKIT-* | 1× 27.32" 2× 24.8" | 28,512 lm | 4 | 5 | 23.8A |
* Housing color options: “B” — Black, “W” — White
