Dominate The Scene

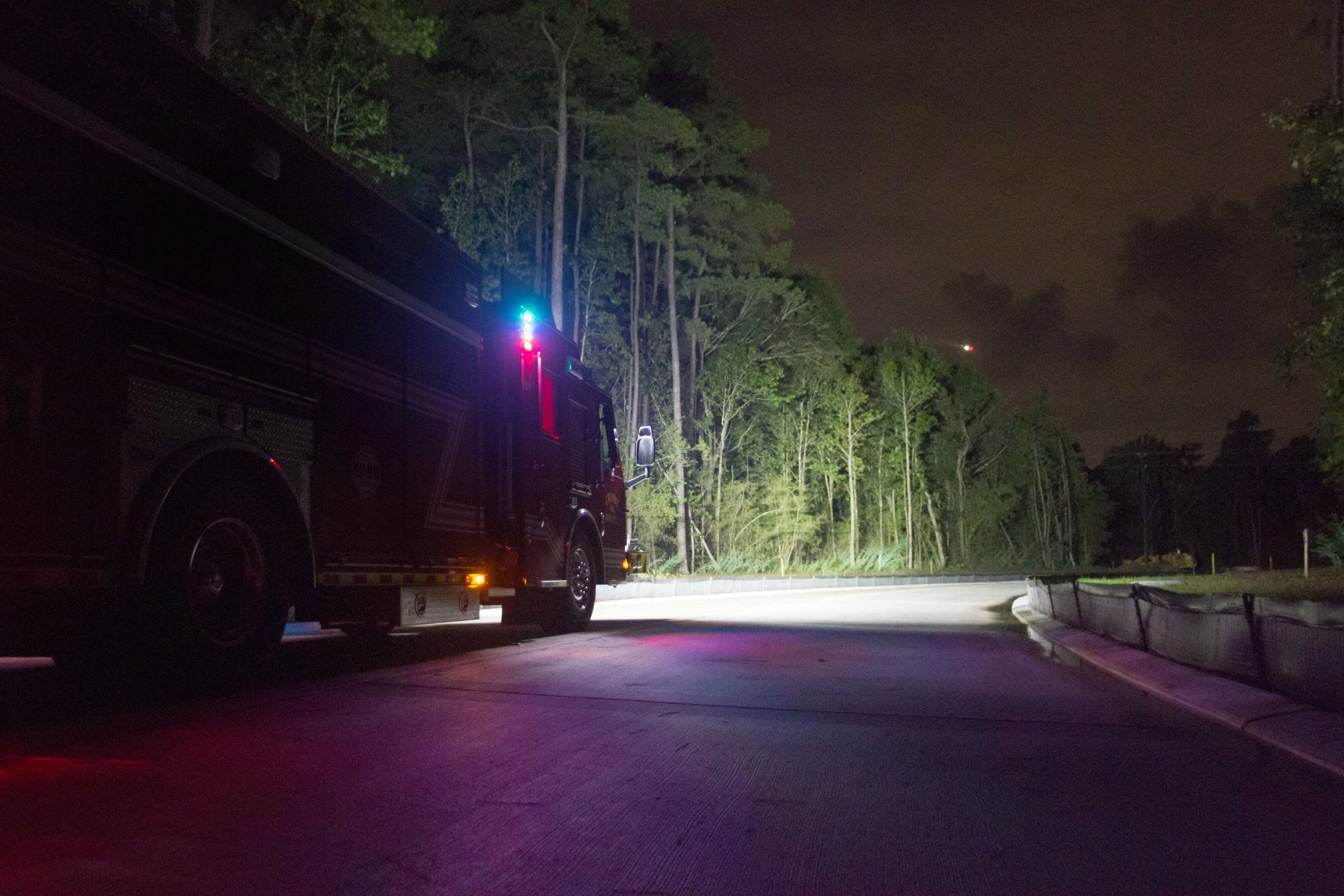

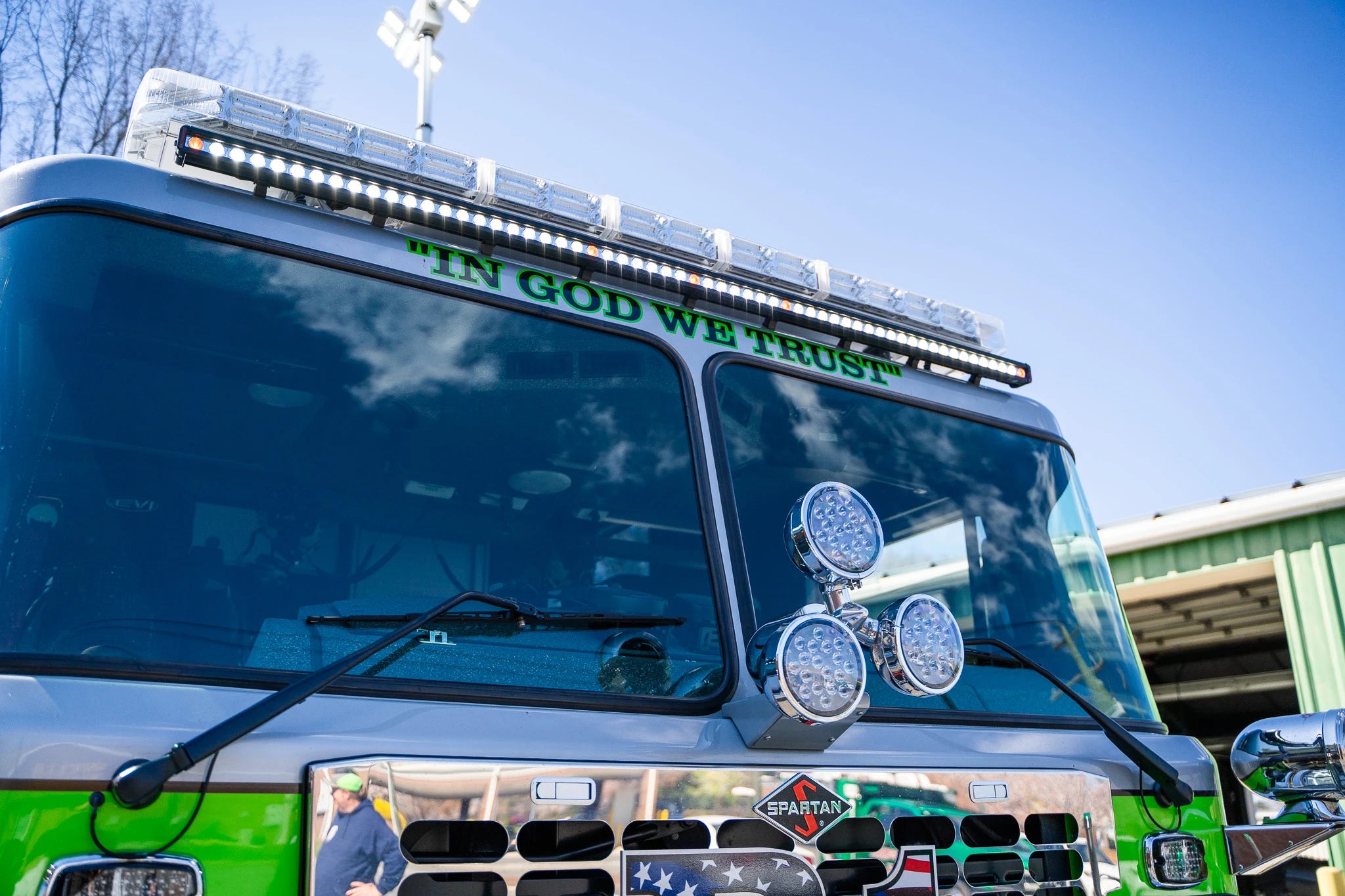

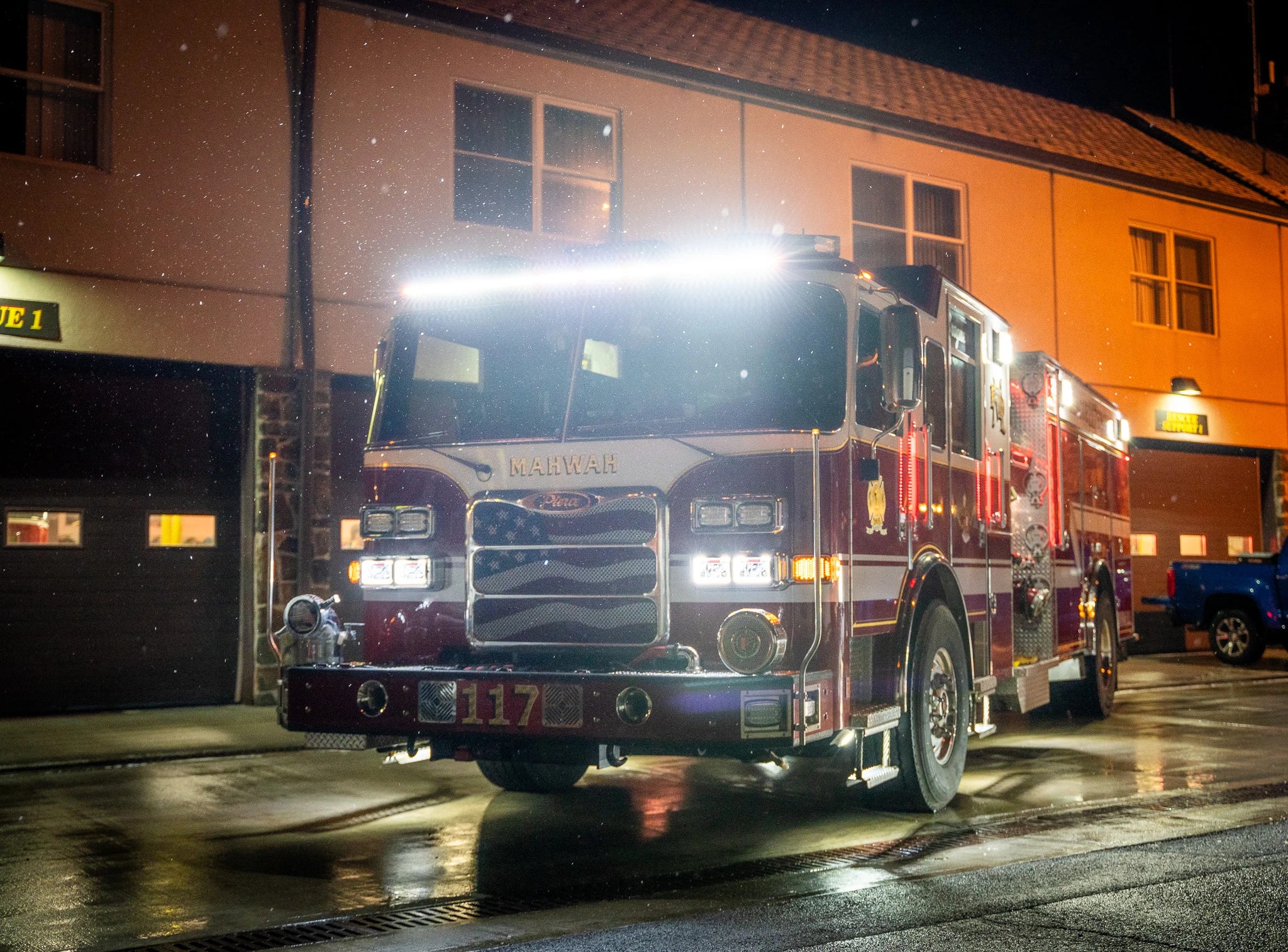

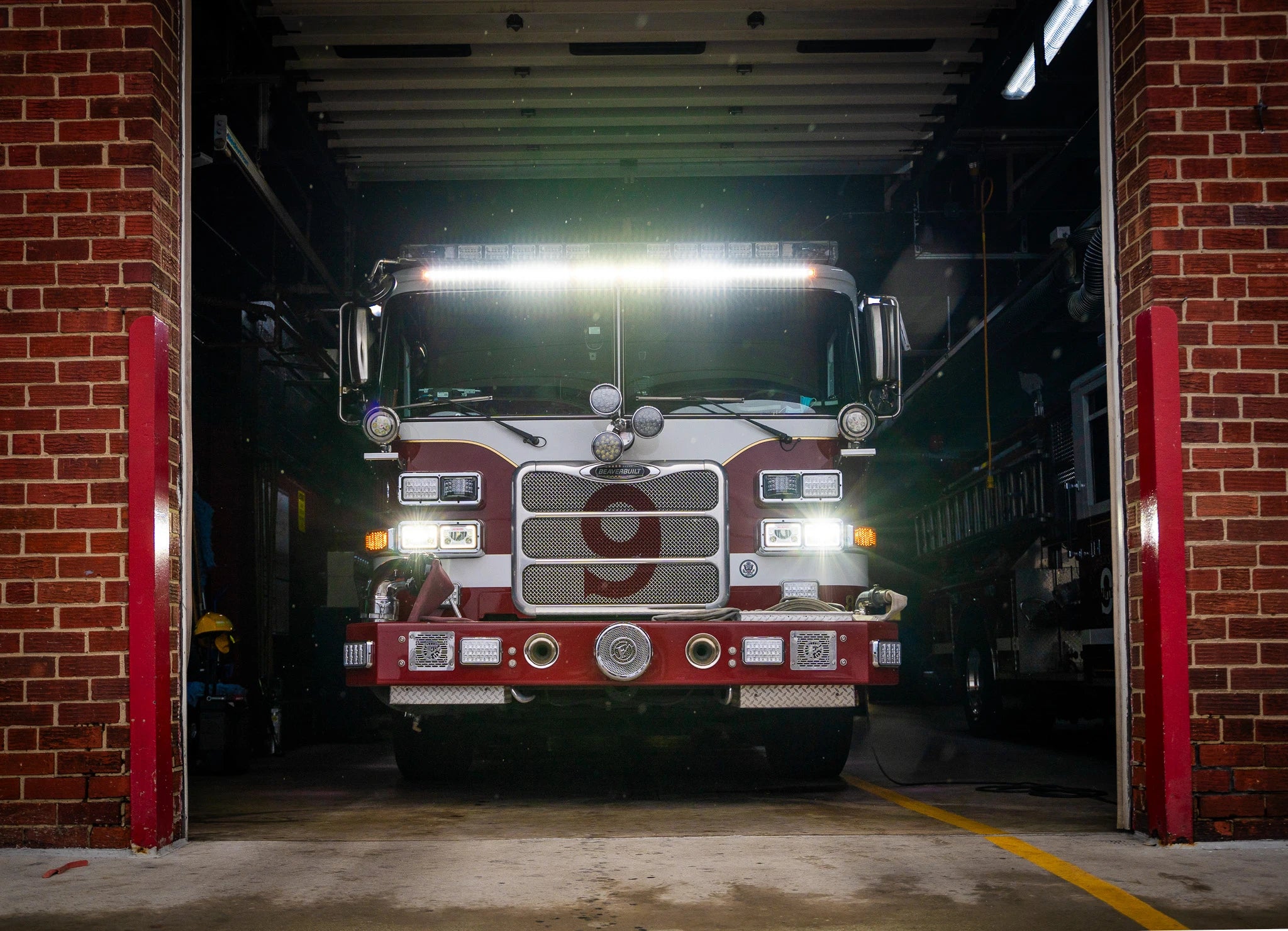

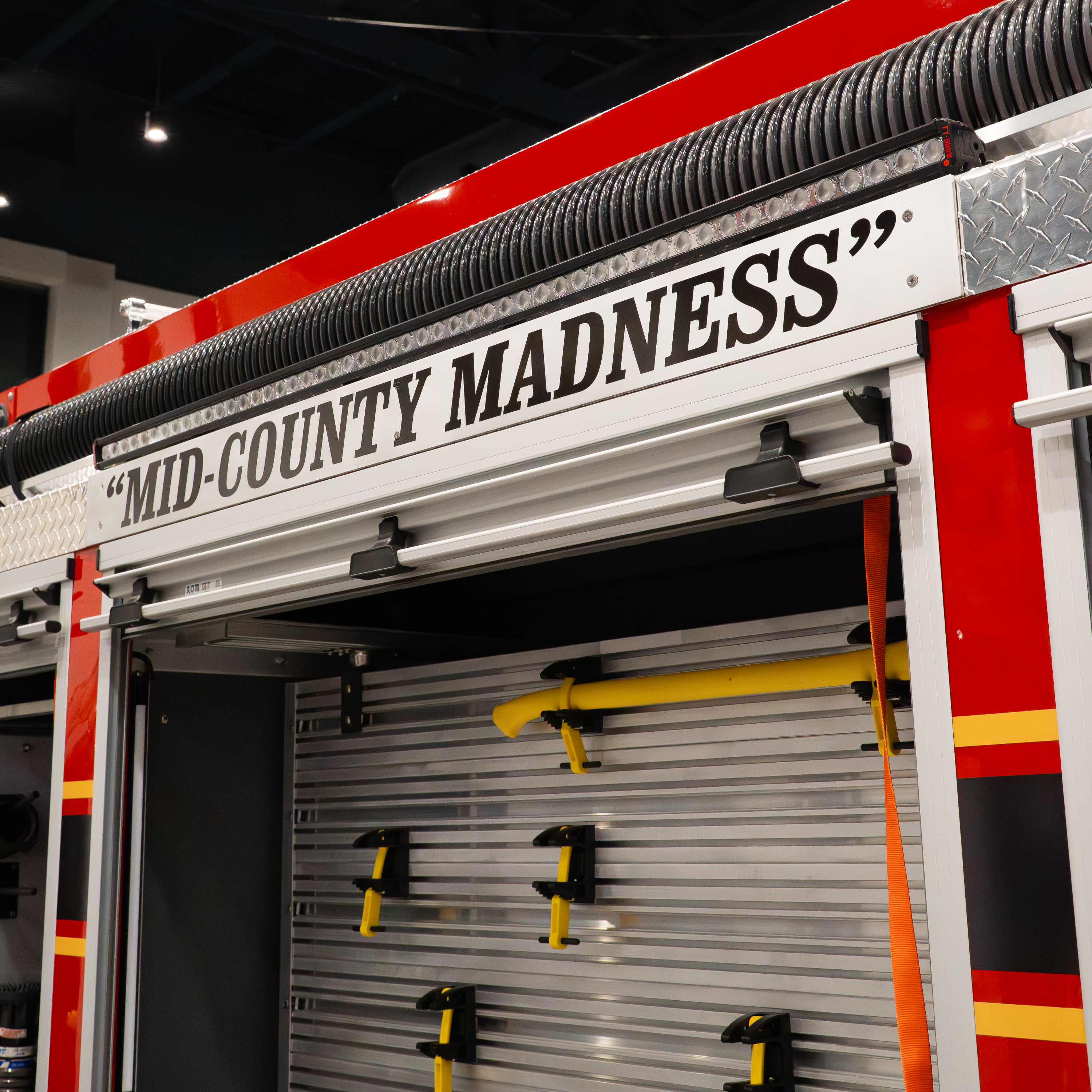

The FireTech Brow Lights give you the right type of lighting for the leading edge of your apparatus cab. By combining a long distance spot beam with multiple flood beams, your apparatus will have both range and coverage.

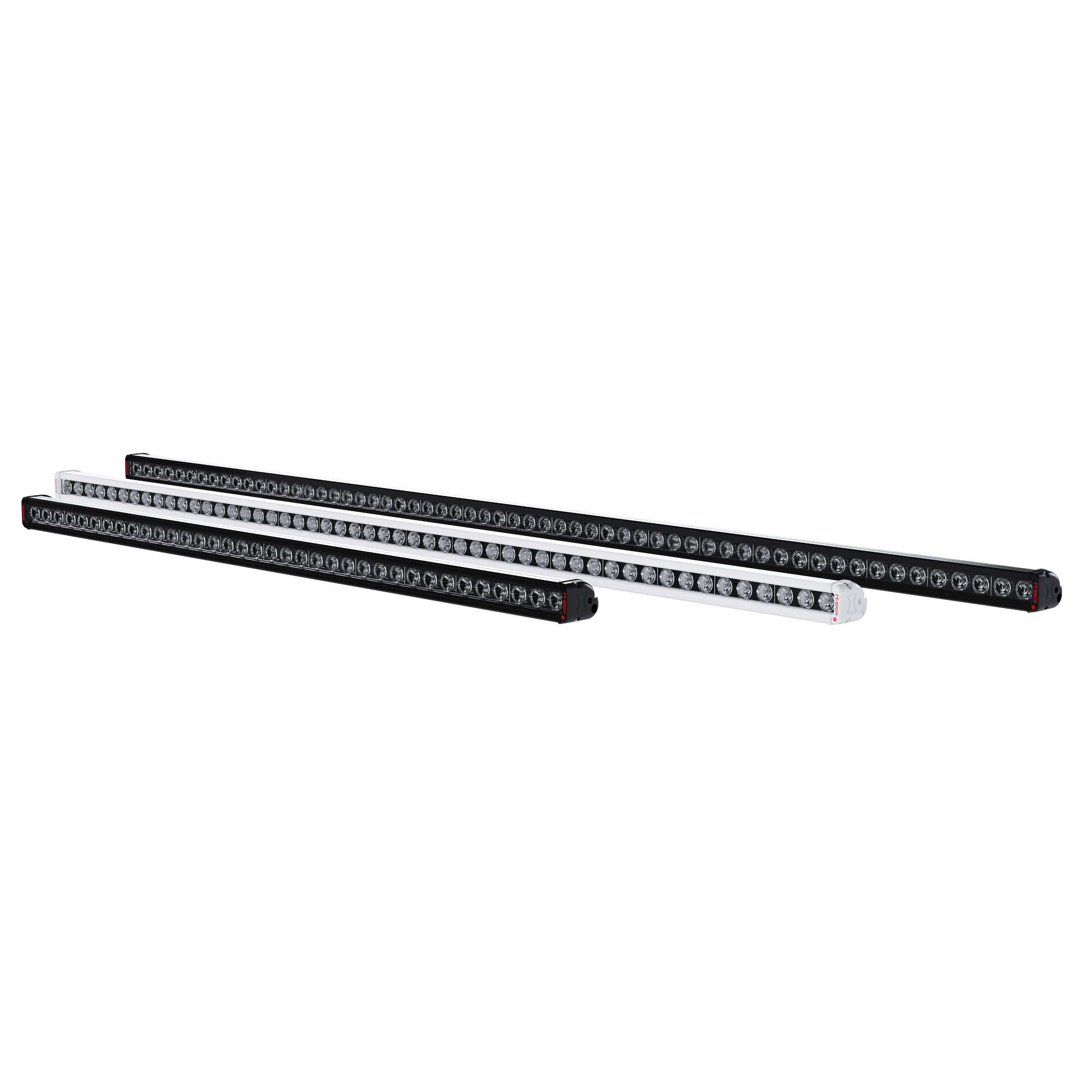

Three Sizes with Optional Marker Lights

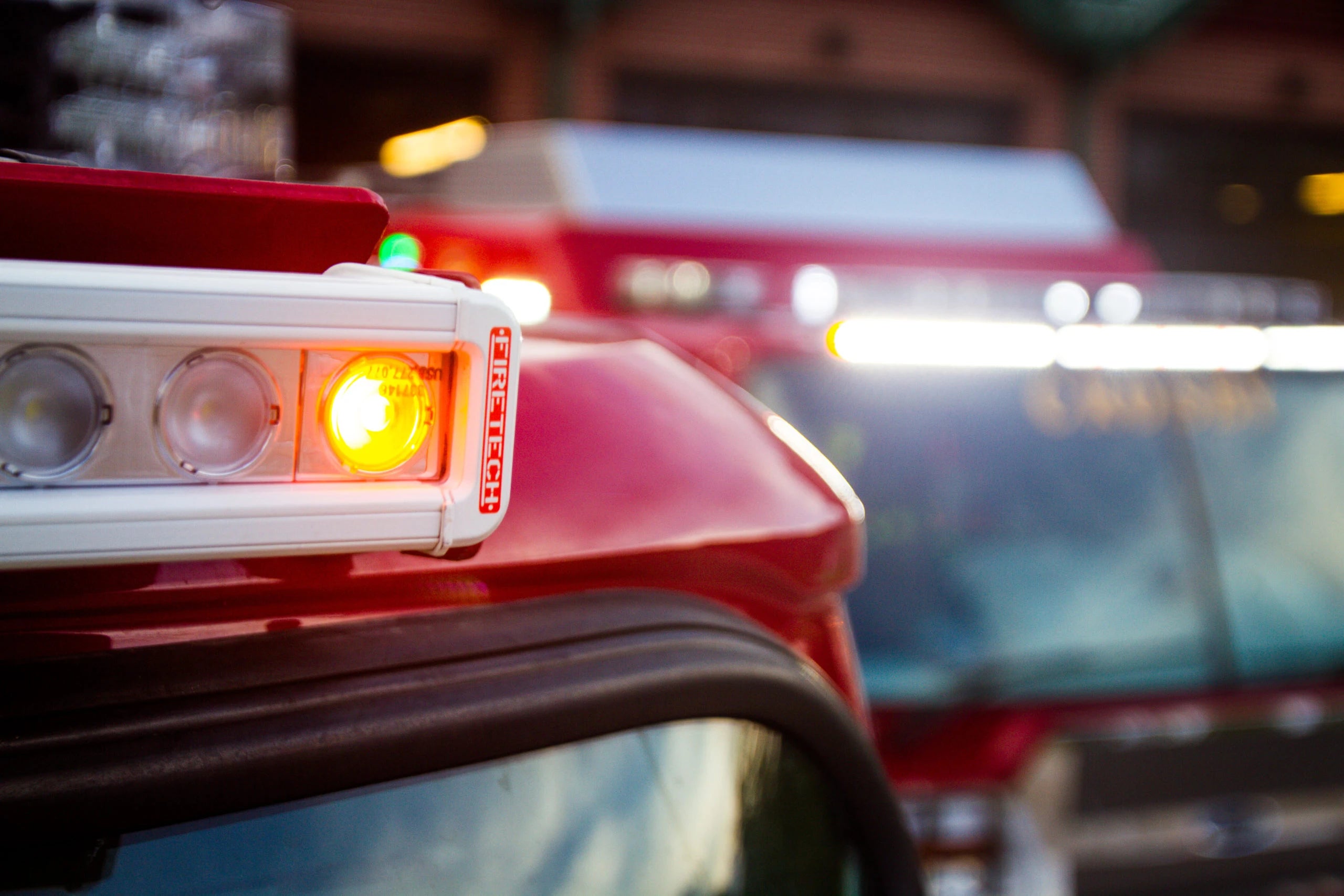

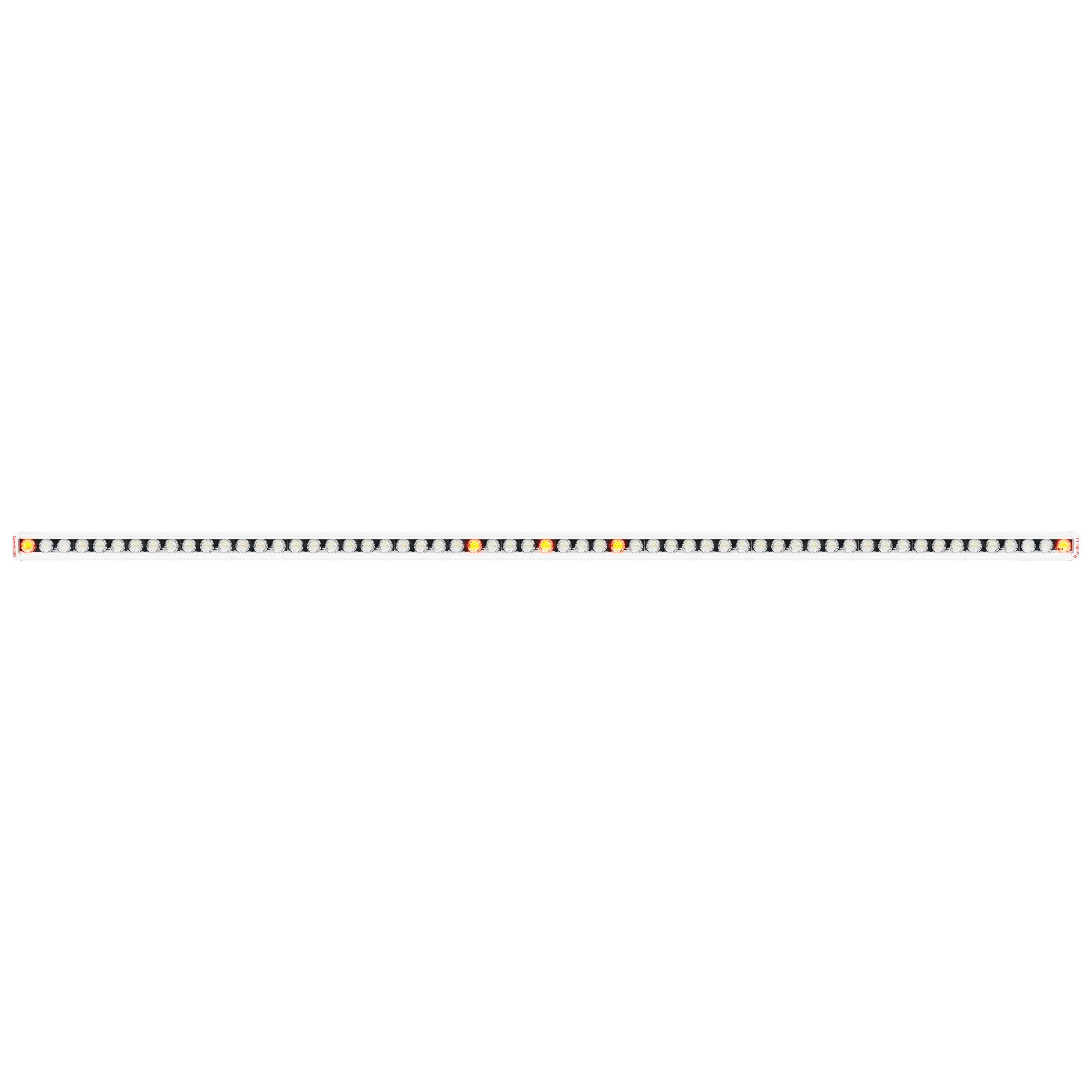

Each FireTech Brow Light has the added option of integrated DOT Approved marker light to help increase safety and awareness.
Multiple Mounting Options
Cab Bracket
For use on 3” radius surfaces with single stack MiniBrow and brow lights.
Pedestal Bracket
For use on flat surfaces.
L-Foot Bracket

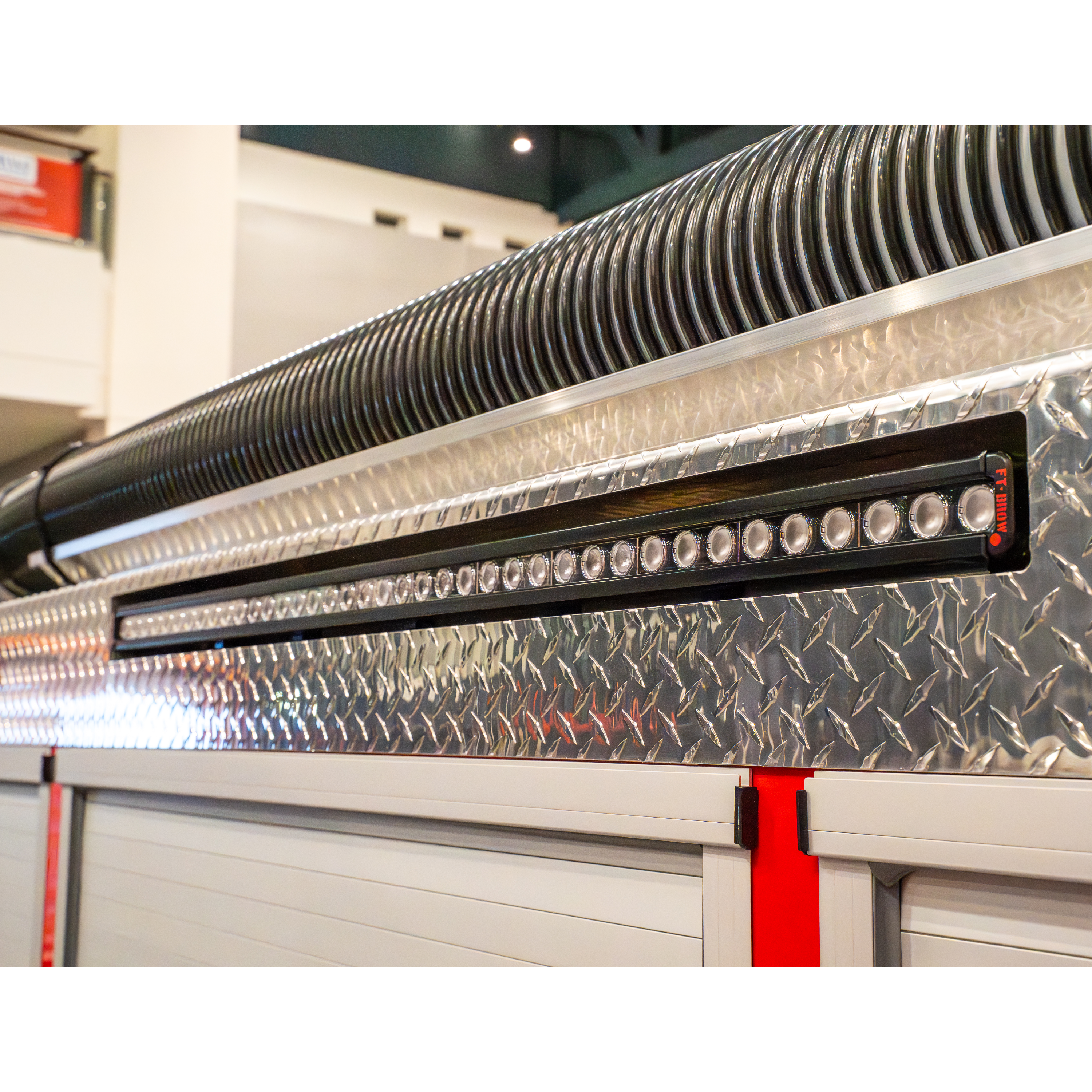

The P-MB-LFOOT kit enables mounting of a FireTech Brow Light to a vertical surface while still supporting the fixture along the length of the extrusion.
Once mounted, the light remains adjustable vertically. This means that you are able to mount one of our emergency scene lights and know that it can still be flexible enough to serve your needs.
Available in White or Black.
J-Foot Bracket
For use mounting FireTech Brow Lights MiniBrow lights directly to the OMEN™ warning lightbar.
Specifications
Brow Lights (all models): 9-32V DC input, IP67/69K, 21 GRMS vibration rating.
| Model | Part # | Dimensions | Raw Lumens | Circuits | Marker Lights | Max A @12.8V | Peak W |
|---|---|---|---|---|---|---|---|
| 46" Brow Light | FT-B-46-* | 46.22" | 19,008 lm | 3 | 0 | 14.1A | 180W |
| 50" Brow Light With Marker Lights † | FT-B-46-ML-3-* | 50.01" | 19,008 lm | 4 | 3 | 14.8A | 189W |
| 54" 2-Piece Brow Light Kit (For Aerials) † | FT-B-46-ML-3-* | 2x 27.33" | 21,882 lm | 1 | 0 | 17.5A | 210W |
| 65" Brow Light | FT-B-65-* | 65.23" | 26,928 lm | 3 | 0 | 19.9A | 255W |
| 72" Brow Light | FT-B-72-* | 72.69" | 30,096 lm | 3 | 0 | 22.3A | 285W |
| 72" 3-Piece Brow Light Kit | FT-B-72-3PKIT-* | 1x 27.32" + 2x 23.52" | 29,697 lm | 3 | 0 | 23.89A | 285W |
| 72" Brow Light With Marker Lights | FT-B-72-ML-* | 75.12" | 28,512 lm | 4 | 5 | 22.3A | 285W |
| 72" 3-Piece Brow Light Kit With Marker Lights | FT-B-72-ML-3PKIT-* | 1x 27.32" + 2x 24.8" | 28,512 lm | 4 | 5 | 23.8A | 285W |
| 80" Brow Light | FT-B-80-ML-* | 82.92" | 31,680 lm | 4 | 5 | 24.6A | 315W |
