Scene lights are one of those choices that looks simple until you start drilling holes.

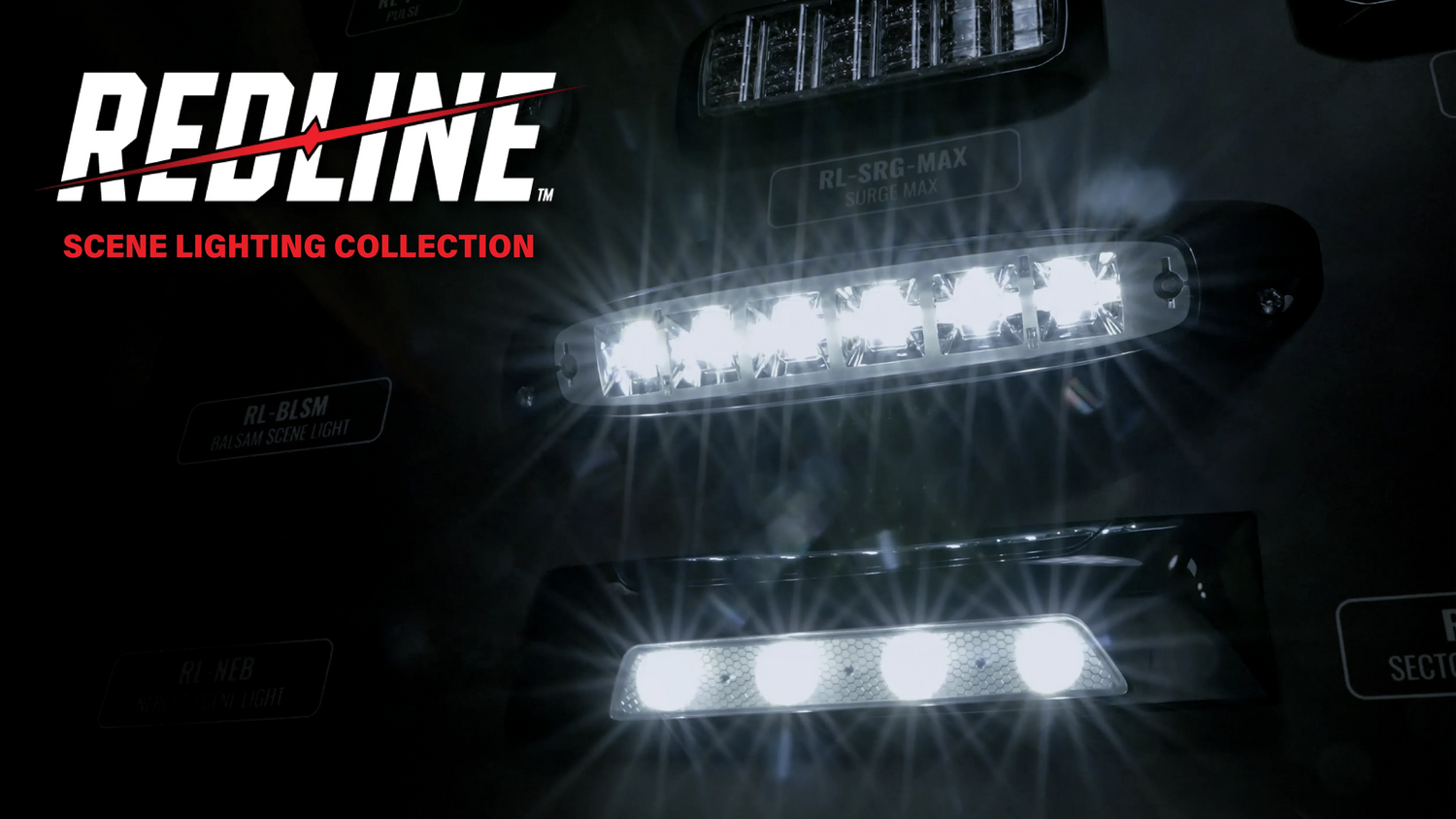

Three lights from Redline handle the bulk of the work: Dawn, Balsam, and Nebula. They are not the same light at different price points. Each one solves a different problem on the vehicle. The trick is knowing which problem you actually have.
Dawn when you need warning and work light in the same spot
Dawn is two lights in one housing. The top section is a single-color warning light, red, blue, or amber. The bottom section is a flood light. They share a housing but not optics. The warning section is built for warning. The flood section is built for work lighting. Two separate jobs, two separate sets of optics, parked next to each other in the same fixture.
Keep the two functions separate optically and neither one has to compromise. A fixture that tries to do both jobs with the same set of optics is going to be mediocre at both.
Dawn is a good fit for the sides of workbody trucks, SUVs, rescue UTVs and the back of a roof rack where you need both functions but only have space for one fixture. Two of them on the back of a roof rack give you work lights and warning lights in the same footprint.
Read more about Woodbury VFD's Redline scene lighting setup for their rescue UTV
Read more about Woodbury VFD's Redline scene lighting setup for their rescue UTV
The warning section is single color only. Red, blue, or amber. Confirm the part number for your color before you order.
It is also worth a look on European-style ambulance bodies where there is not a lot of real estate on the side of the box. In the US market the same logic applies to any utility body with limited mounting space.
The optically separated approach matters more than most people think. A combined fixture that tries to do both jobs with the same set of optics will be mediocre at both. Dawn gives you two purpose-built sections in one mount.
Balsam when the scene light needs to take a beating
Balsam is the tough one.
It has a cast-aluminum housing and a radiused front lens. Six LEDs. 1,400 lumens. Flood beam pattern. Die-cast aluminum base. 7.22 inches long, 1.68 inches wide, 0.87 inches deep. Uses about 1.2 amps at 12V. Mounts to a surface.
Throw these in your hose bed and you do not have to worry about the couplings busting up your light.
That is the application for Balsam. It belongs on the back of the truck where equipment is going to hit it. Hose couplings, ladder brackets, tool boxes stacked against it. The cast-aluminum housing means it will survive contact that would crack a plastic housing.
The radiused front lens also changes the beam shape. Instead of projecting straight out from the side of the vehicle like a standard scene light, Balsam sweeps the light across a wider area and angles it down. The beam is asymmetric even though the individual optics are symmetrical. That means you get better coverage along the side of the apparatus rather than a narrow spot right next to the mounting location.
There is not a plastic scene light on the market that survives a hose bed the same way. That is the main reason to choose Balsam. If the light is going somewhere it will get hit, Balsam is the answer.
Nebula when the install matters as much as the light
Nebula is the cleaner installation.
It has a curved body design. Four LEDs. 1,730 lumens. Flood beam pattern. Die-cast aluminum base. 8.93 inches long, 2.04 inches wide, 1.64 inches deep. Runs about 1.12 amps at 12V. Rated IPX7. Surface mount. Available with a chrome bezel option.
The mounting holes are covered. That gives the installation a finished look instead of having exposed screw heads on the face of the light. You can also swap the black bezel for chrome if the vehicle calls for a brighter trim treatment.
The 1,730 lumen output is higher than Balsam's 1,400 lumens, but do not let that drive the decision alone. Nebula is a four-LED light with a curved lens that puts more total lumens into a flood pattern. Balsam is a six-LED light with a radiused lens that uses its optical design differently. The two are not on the same performance curve. They are different tools.
Nebula belongs in locations where the installation appearance matters. Compartments, side panels, under a tailboard, anywhere the crew will see the light regularly and the mounting finish should look intentional. The covered screw holes and the bezel option make it the right choice when the vehicle is on display at a show or running in service where appearance counts.
How to pick
Do not start with lumens. Start with the vehicle and the location.
If the location needs both warning and work lighting and you only have one mounting position, Dawn is the only choice that handles both in one housing. It does not do one job at the expense of the other. It does both because the two sections are built separately.
If the scene light is going somewhere it will get hit, pick Balsam. That is what the cast-aluminum housing and the radiused lens are for. Hose bed, step area, anywhere couplings and tools make contact with the fixture.
If the scene light is going somewhere the install finish matters and contact is not the main concern, pick Nebula. The covered mounting holes, the bezel option, and the IPX7 rating make it a clean, weather-sealed scene light for compartment and body-mount applications.
None of these three is the "best" scene light. They are different answers to different questions. Match the light to the vehicle and the light will work.
Check current dimensions, lumen output, mounting hardware, wiring, and certifications before ordering. Product specs change and the right answer today depends on what is shipping.
