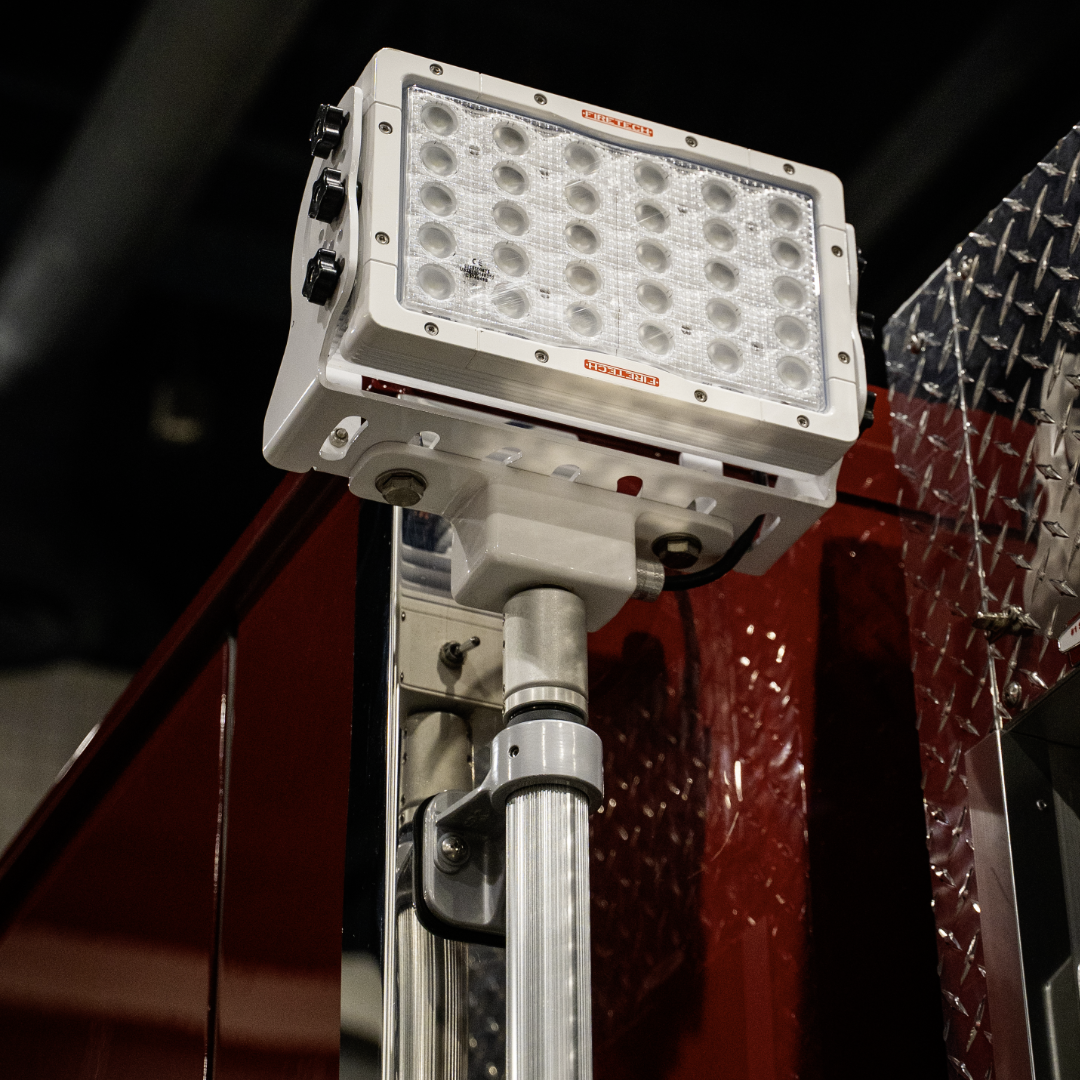

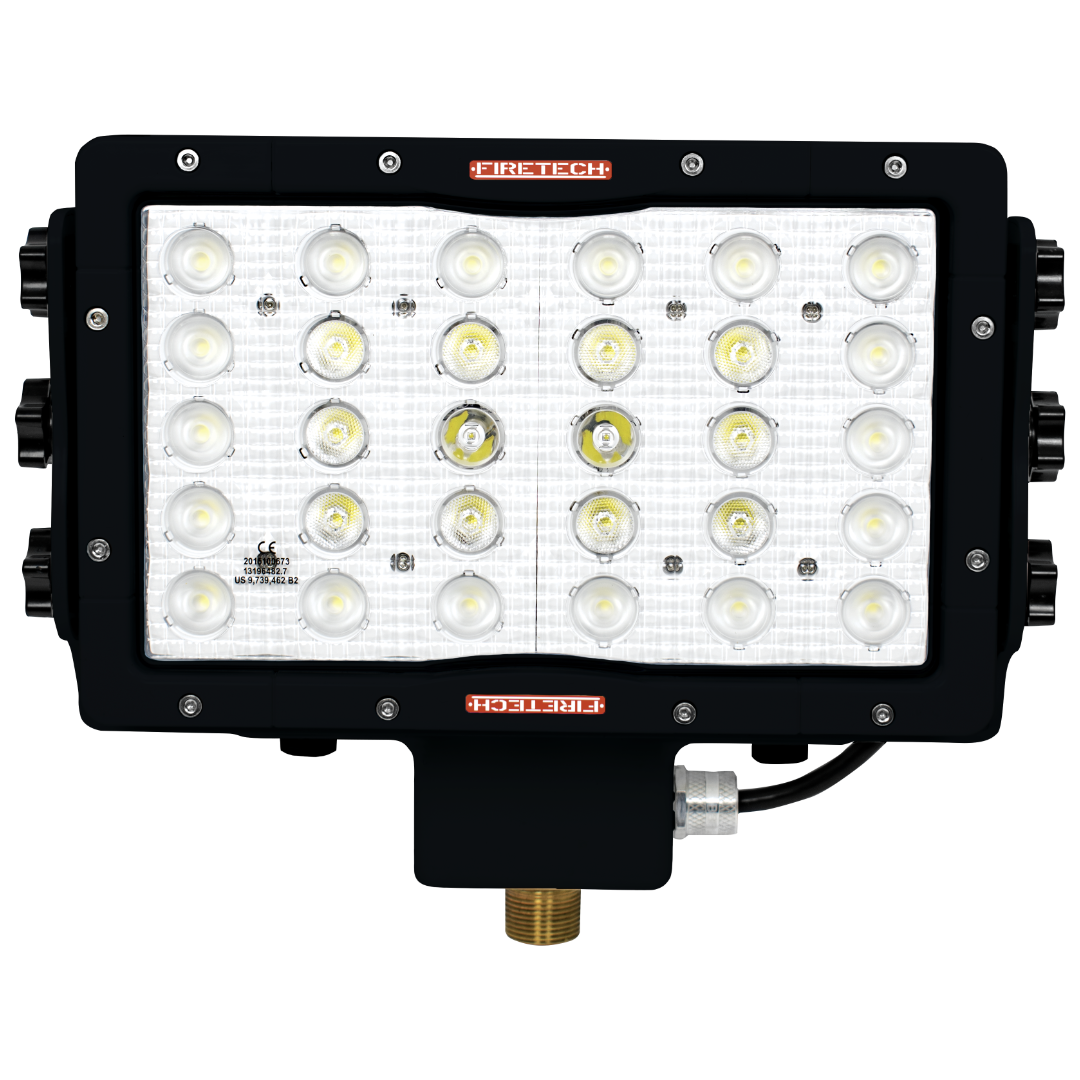

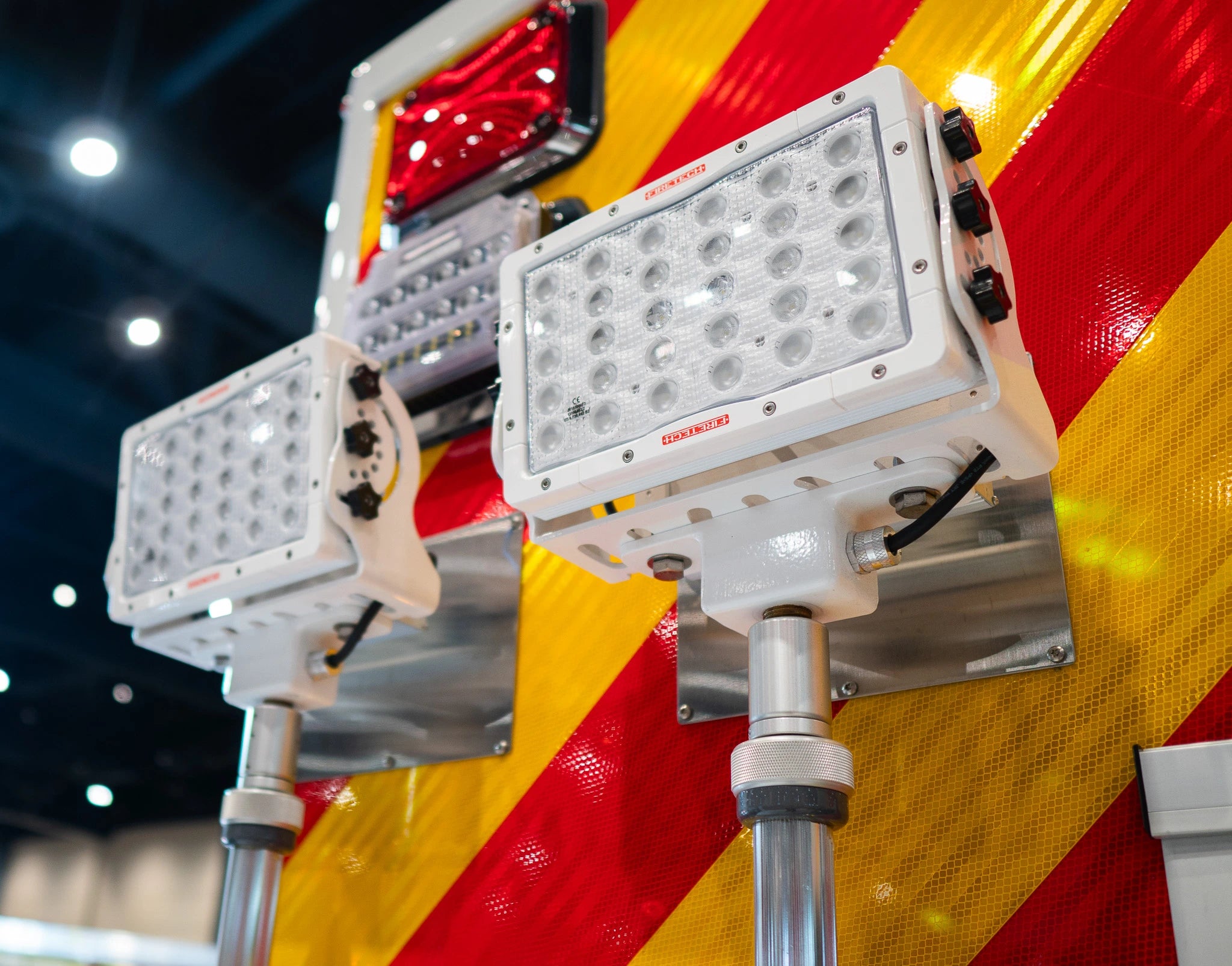

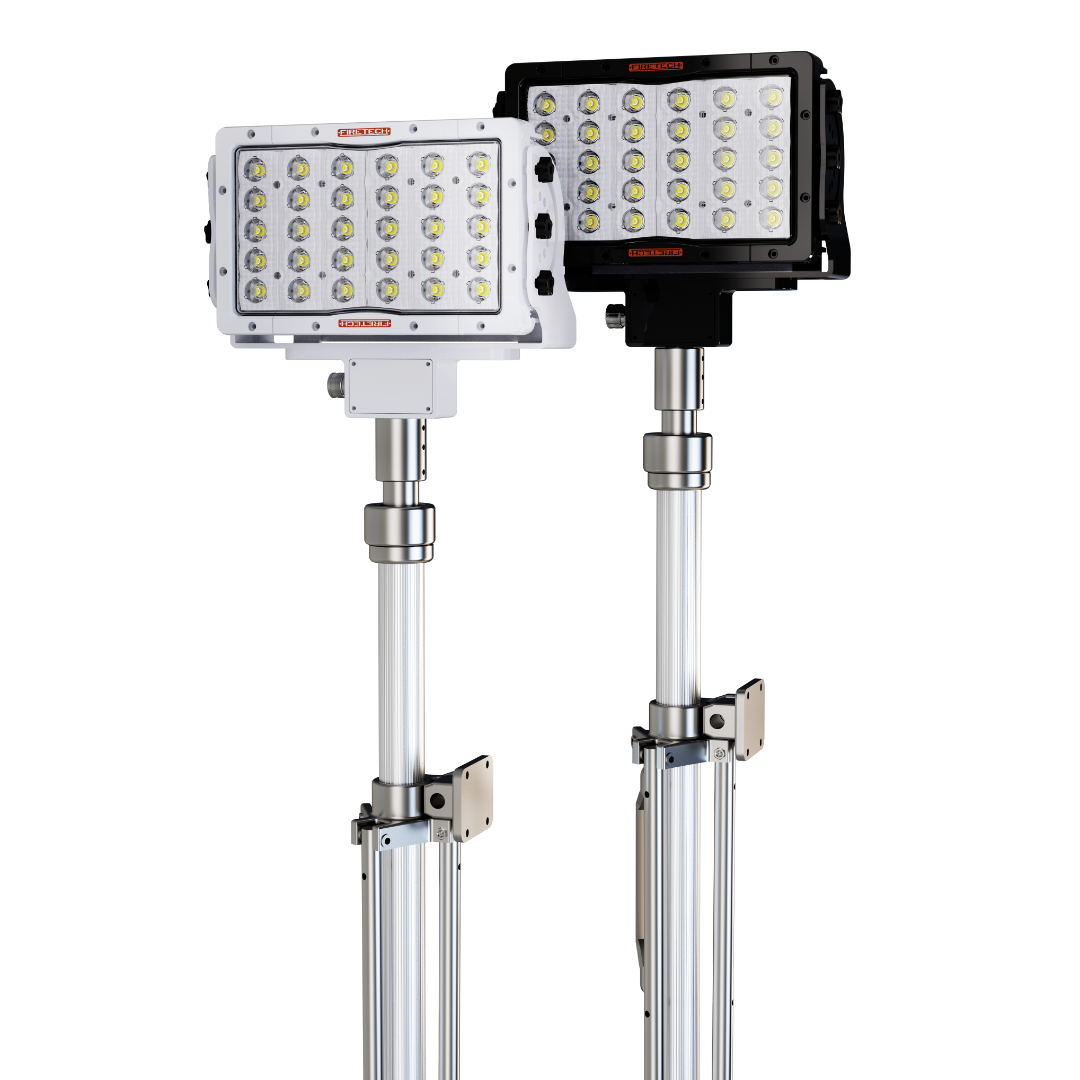

Designed to be the most reliable LED scene light ever produced

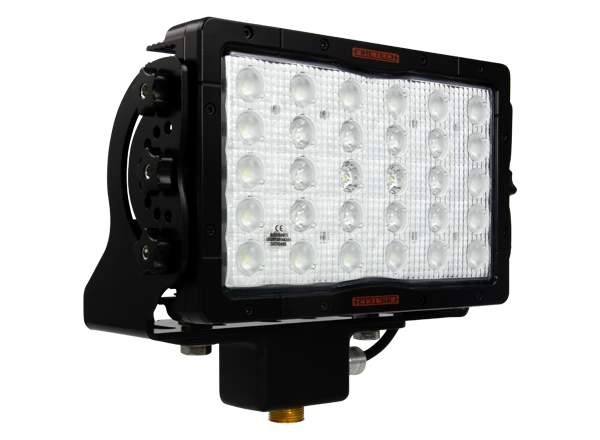

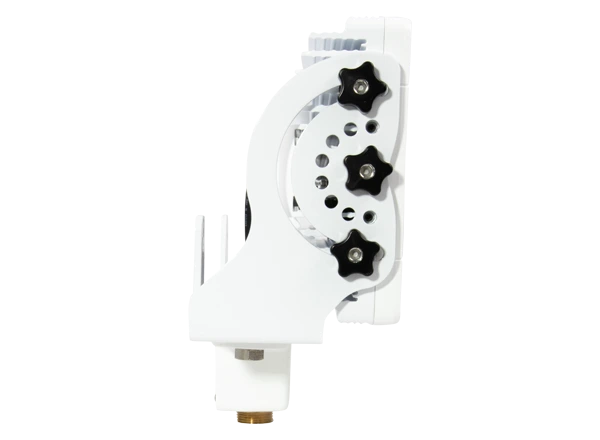

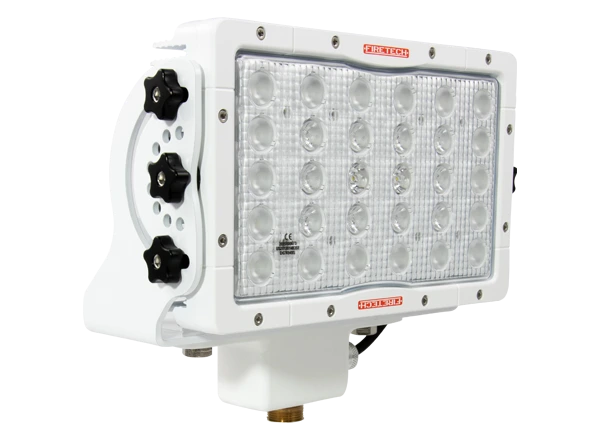

The combination of a die-cast 6061 aluminum housing, unbreakable polycarbonate lens, integrated deutsch connector, reinforced gasketed bezel and a strengthened trunnion bracket create a one of a kind, high-powered light that will outshine and outlast the competition.
The FT-SL-15 LED Scene light is available in a variety of optic configurations and will operate on 11-65V DC or 90-277V AC.
Specifications
20,000 Lumen Pole Mounted LED Scene Light (all SKUs): Peak Watt: 150W, IP Rating: IP68/69K, Vibration Rating: 60 GRMS.
| Model | Part Number | Dimensions (LxWxH) | Optics | Housing Color | Max. Amp. | Input Voltage |
|---|---|---|---|---|---|---|
| 20,000 Lumen Pole Mounted LED Scene Light (DC) | FT-SL-15-FT-* | 12.4"X 5.07"X 9.97" | Combination | * | 12.5A @12.8V DC | 11-65V DC |
| 20,000 Lumen Pole Mounted LED Scene Light (DC) † | FT-SL-15-F-* | 12.4"X 5.07"X 9.97" | Flood | * | 12.5A @12.8V DC | 11-65V DC |
| 20,000 Lumen Pole Mounted LED Scene Light: With Switch (DC) † | FT-SL-15-FT-SW-* | 12.4"X 6.54"X 9.97" | Combination | * | 12.5A @12.8V DC | 11-65V DC |
| 20,000 Lumen Pole Mounted LED Scene Light: With Switch (DC) † | FT-SL-15-F-W-SW | 12.4"X 6.54"X 9.97" | Flood | White | 12.5A @12.8V DC | 11-65V DC |
| 20,000 Lumen Pole Mounted LED Scene Light (AC) | FT-SL-15-FT-110-* | 12.4"X 5.07"X 9.97" | Combination | * | 1.25A @120V AC | 90-277V AC |
| 20,000 Lumen Pole Mounted LED Scene Light (AC) † | FT-SL-15-F-110-* | 12.4"X 5.07"X 9.97" | Flood | * | 1.25A @120V AC | 90-277V AC |
| 20,000 Lumen Pole Mounted LED Scene Light: With Switch (AC) † | FT-SL-15-FT-110-SW-* | 12.4"X 6.54"X 9.97" | Combination | * | 1.25A @120V AC | 90-277V AC |
| 20,000 Lumen Pole Mounted LED Scene Light: With Switch (AC) † | FT-SL-15-F-110-SW-W | 12.4"X 6.54"X 9.97" | Flood | White | 1.25A @120V AC | 90-277V AC |
† - Special build item with an MOQ of 20 or a 10% short run surcharge

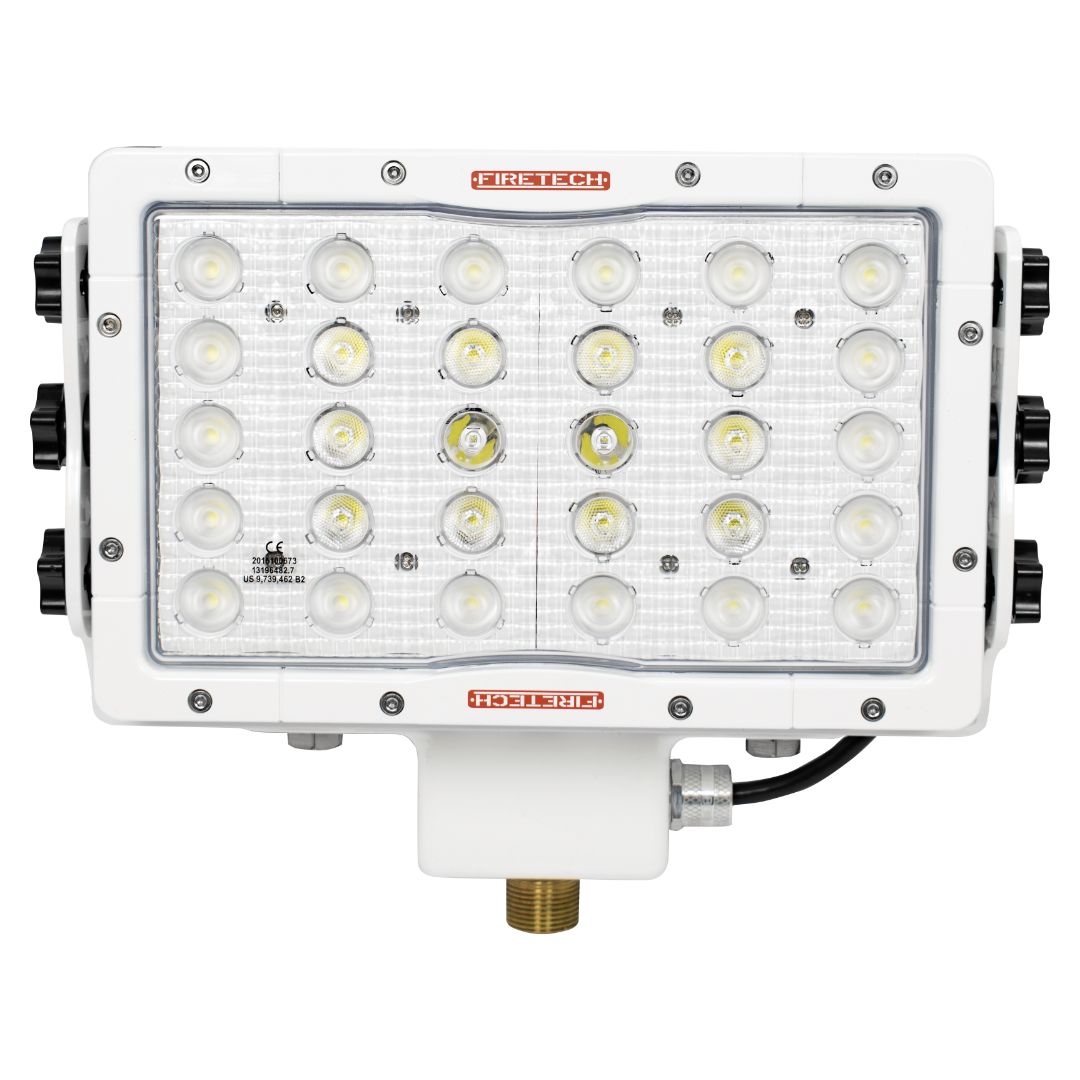

* - Housing Color options: “B” - Black, “W” - White
