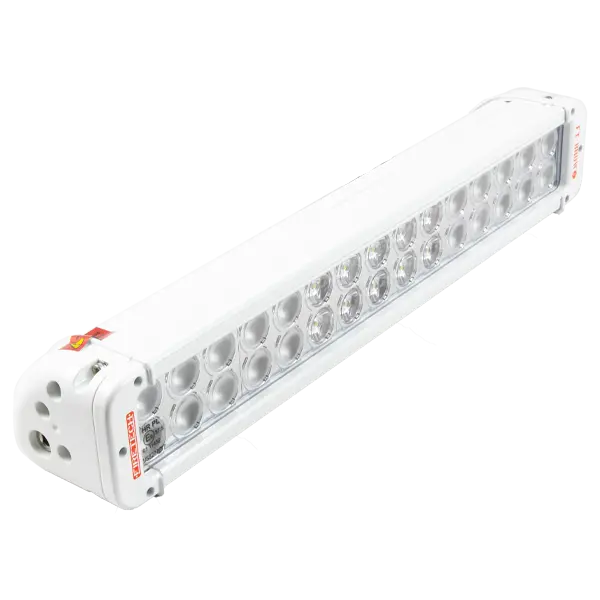

An angled view of a white Double Stack MiniBrow LED Light by FireTech that can be mounted on any area of a fire apparatus.
Double Stack MiniBrow® Lights
Double Stack MiniBrow® Lights
Double Stack MiniBrow® Lights
Double Stack MiniBrow® Lights
Double Stack MiniBrow® Lights
Double Stack MiniBrow® Lights
Double Stack MiniBrow® Lights
Double Stack MiniBrow® Lights
Double Stack MiniBrow® Lights
Double Stack MiniBrow® Lights
Double Stack MiniBrow® Lights
Double Stack MiniBrow® Lights

FireTech

Double Stack MiniBrow® Lights

The MiniBrow Series uses the same core extrusion technology as the FireTech Brow Light, but are offered as single-circuit solutions for use in virtually any other area of a fire apparatus. This means you can have the reliable and bright light of our brow lights wherever you choose to mount the MiniBrow series on your vehicle. With two separate mounting options, trunnion and pedestal, you can be sure that your scene lighting solution will fit on your apparatus.

MiniBrow Scene Light for Firefighters and EMS

Our Brow Light and MiniBrow Scene Light technology are designed by firefighters for firefighters. That means that we’re acutely aware of what you need from your lights and how to best provide it in a package that can fit on many different apparatuses. We know that you don’t need to worry about whether your scene light will work in an emergency, but only need to worry about the illumination necessary to do your job. That’s why the FireTech MiniBrow Series is backed by the industry’s leading limited LIFETIME warranty. The shallow mounting depth and low-profile design allow the FireTech MiniBrow series to provide powerful light output while integrating neatly into the lines of your apparatus cab and body.

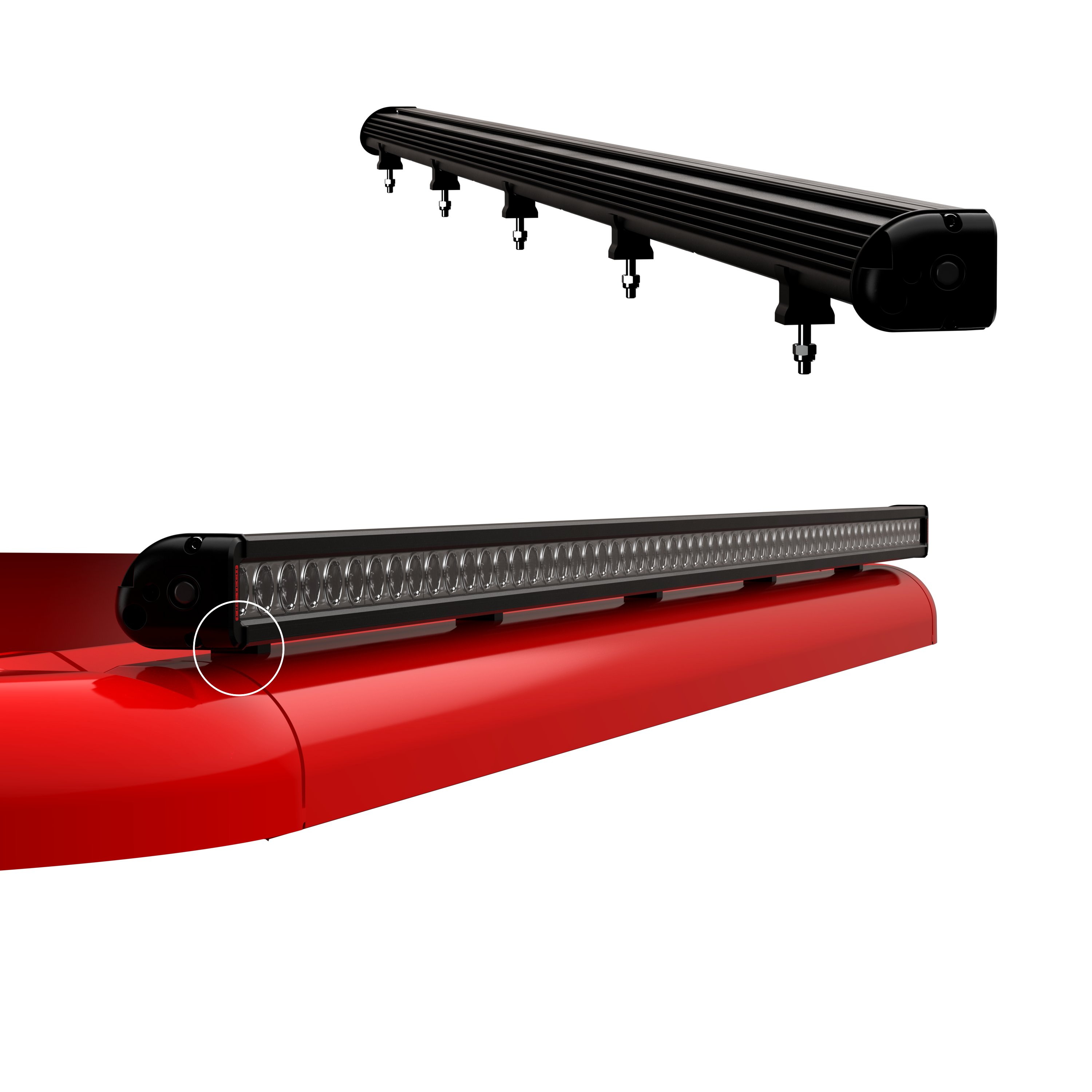

Mounting Options

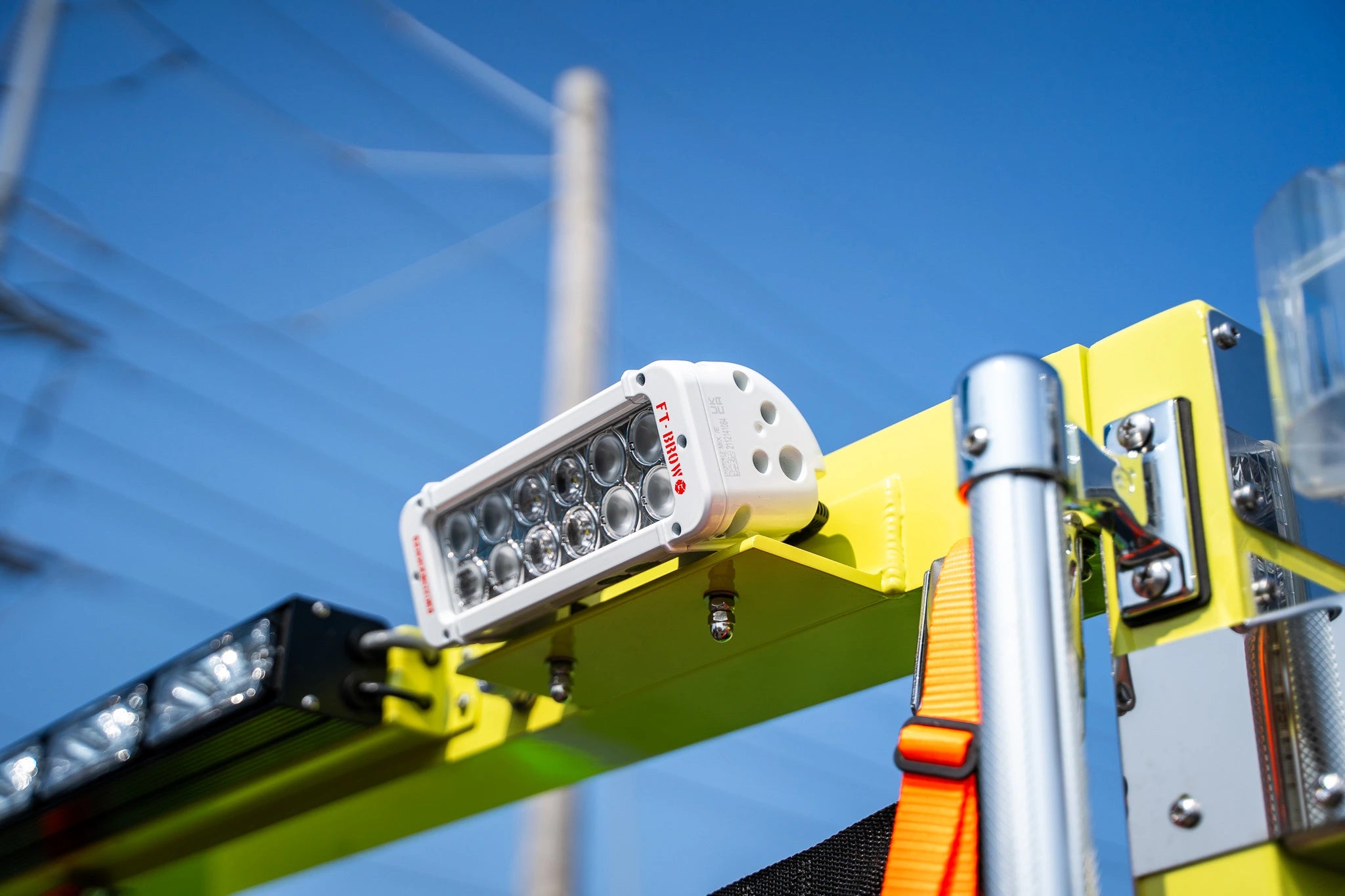

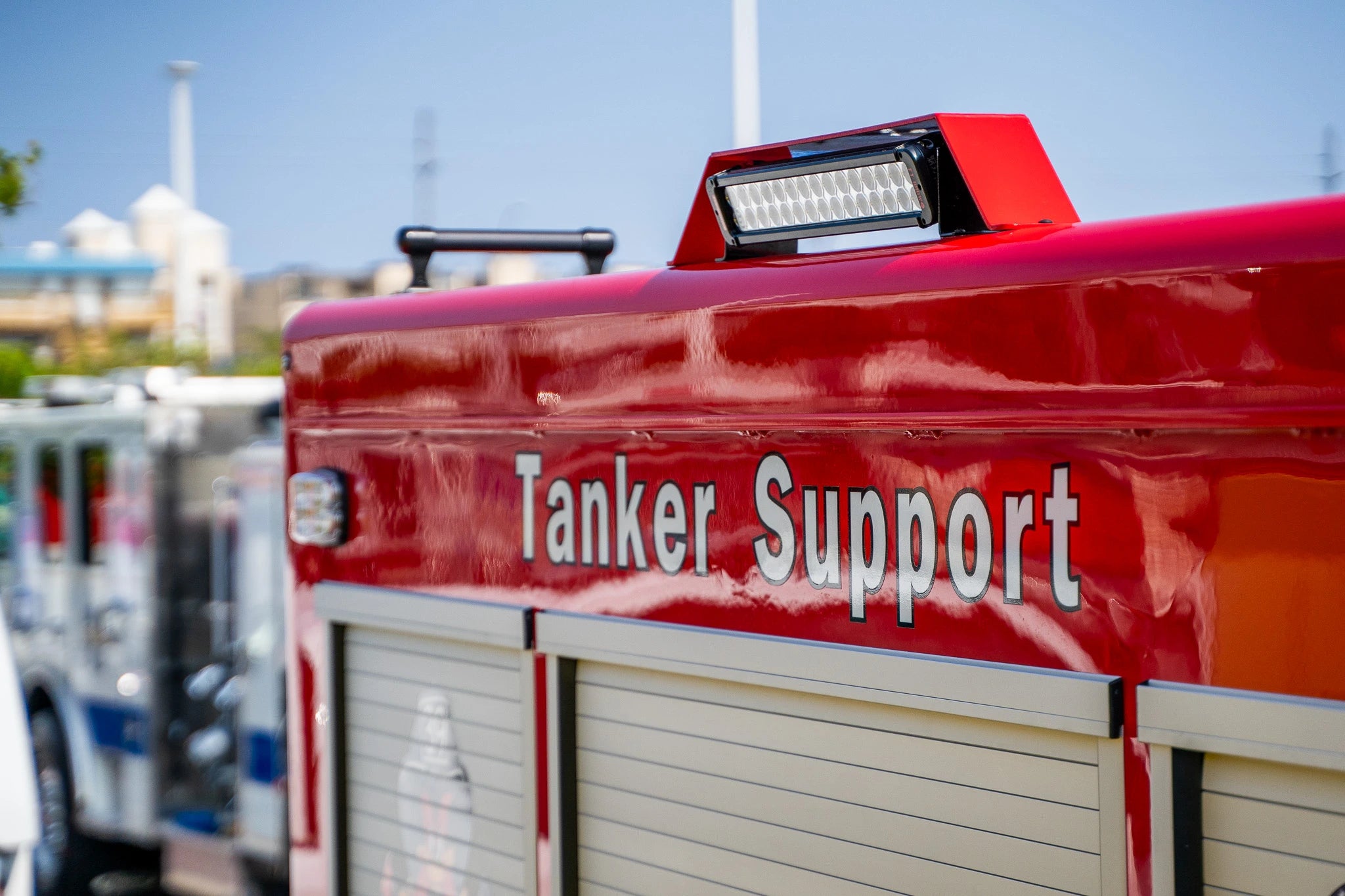

Pedestal Bracket

For mounting on flat surfaces.

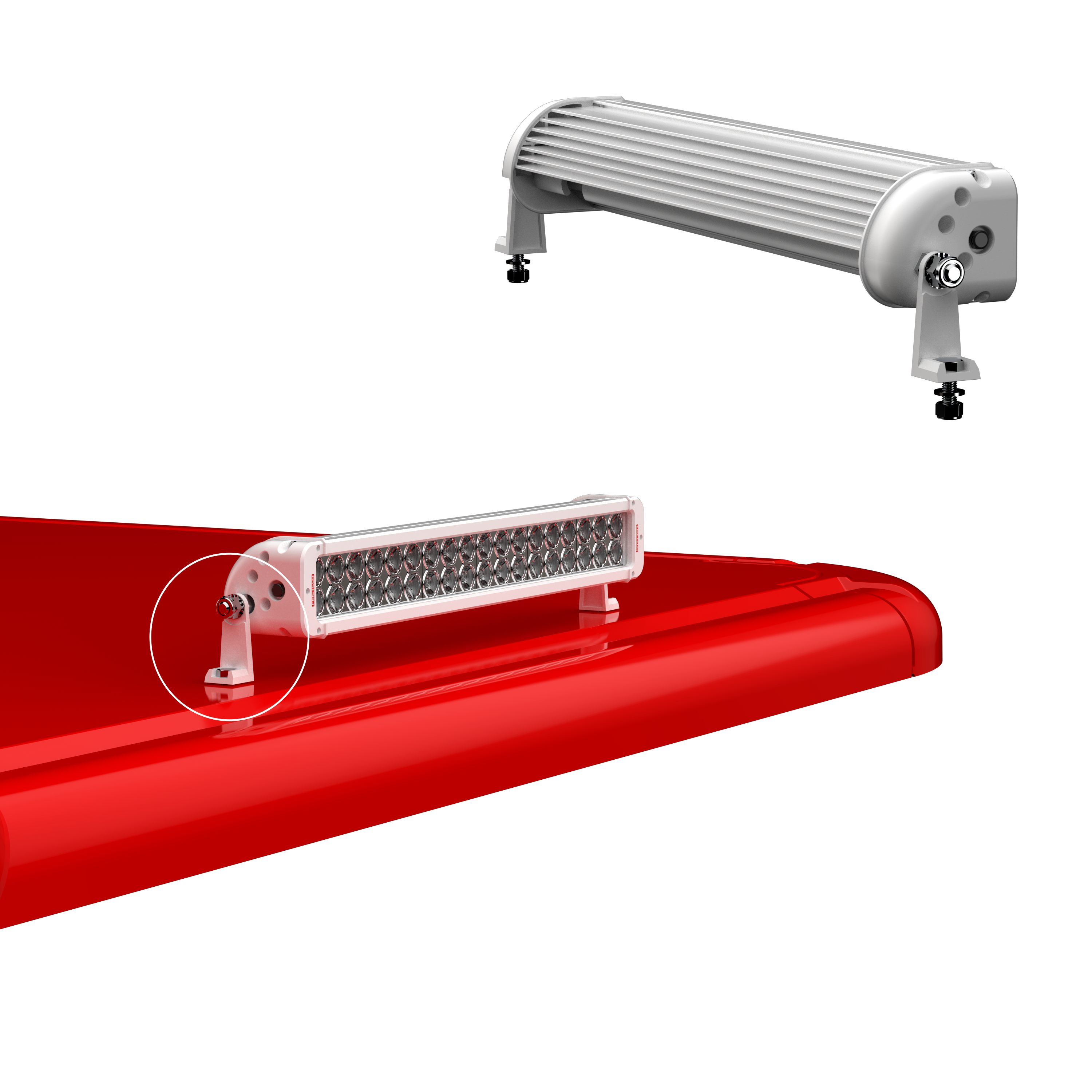

PX Bracket

For mounting on flat surfaces.



Specifications

Double Stack MiniBrow® (all models): 9-32V DC input, IP67/69K, 21 GRMS vibration rating.

Model Part # Dimensions Standard Optics Special Build Options Raw Lumens Max A @12.8V Peak W
12 LED Double Stack MiniBrow®FT-MB-2.6-FT-B7.90"CombinationSpot or Flood6,336 lm5A60W
12 LED Double Stack MiniBrow®FT-MB-2.6-F-W7.90"FloodCombination6,336 lm5A60W
18 LED Double Stack MiniBrow®FT-MB-2.9-F-*11.10"FloodCombination9,504 lm7.5A90W
30 LED Double Stack MiniBrow®FT-MB-2.15-FT-*17.50"Combination15,840 lm12.5A150W
30 LED Double Stack MiniBrow®FT-MB-2.15-F-*17.50"Flood15,840 lm12.5A150W
36 LED Double Stack MiniBrow®FT-MB-2.18-FT-*20.60"CombinationSpot or Flood19,008 lm15A180W
54 LED Double Stack MiniBrow®FT-MB-2.27-FT-*30.20"CombinationSpot or Flood28,512 lm22.5A270W
72 LED Double Stack MiniBrow®FT-MB-2.36-FT-*39.80"CombinationFlood38,016 lm30A360W
90 LED Double Stack MiniBrow® †FT-MB-2.45-FT-*49.37"Combination or Flood47,520 lm37.5A450W

* Housing Color options: “B” - Black, “W” - White.

† Special build item with an MOQ of 20 or a 10% short run surcharge.
