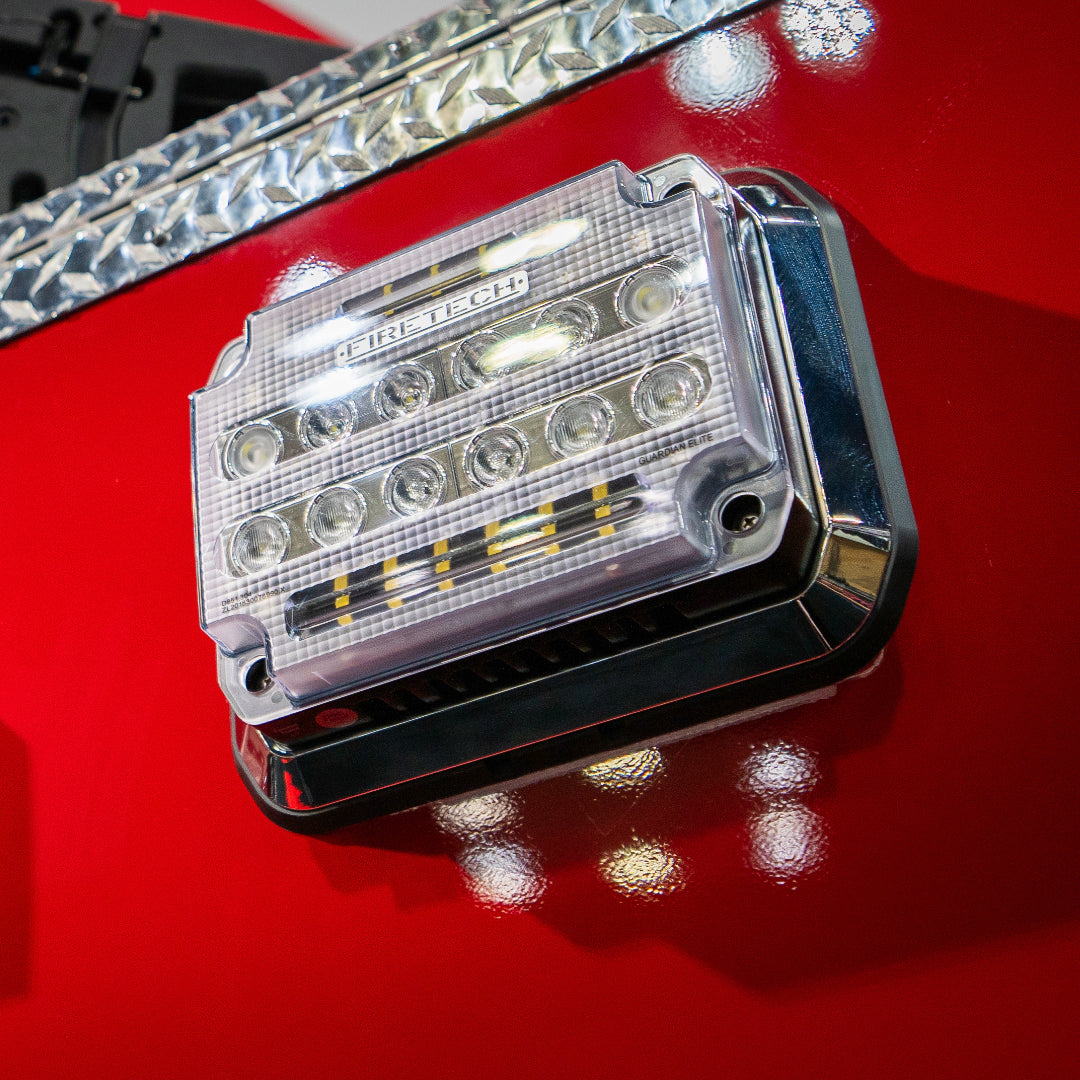

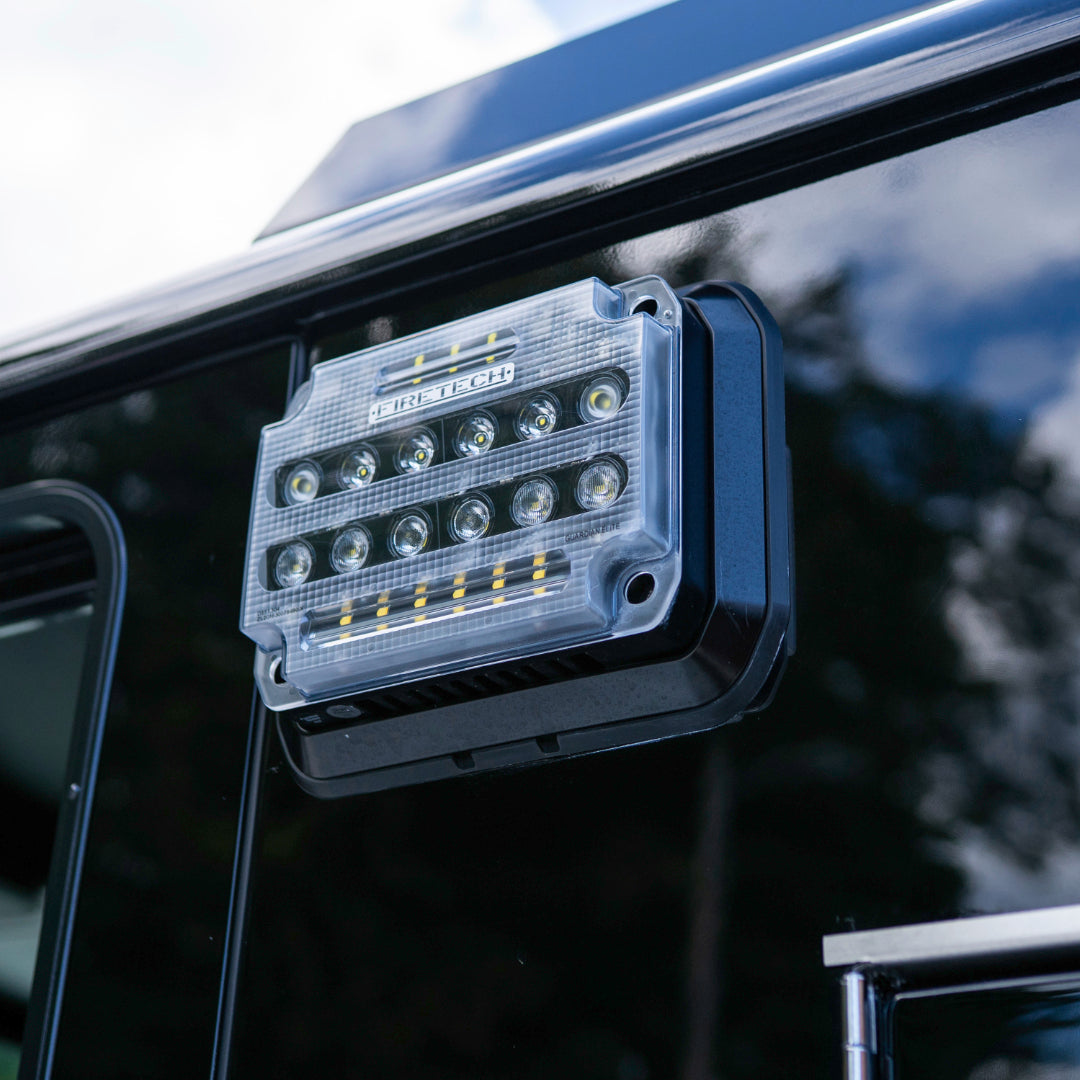

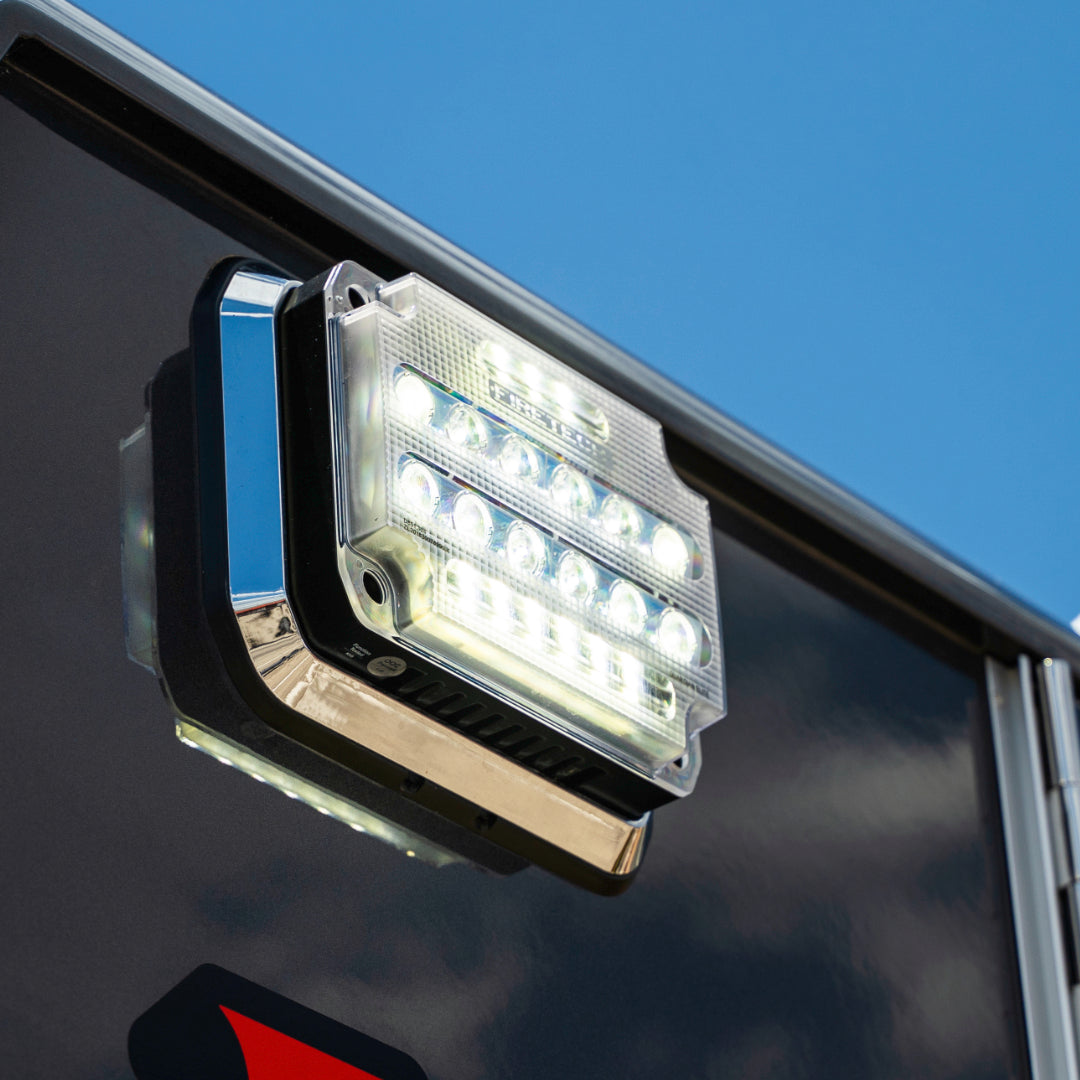

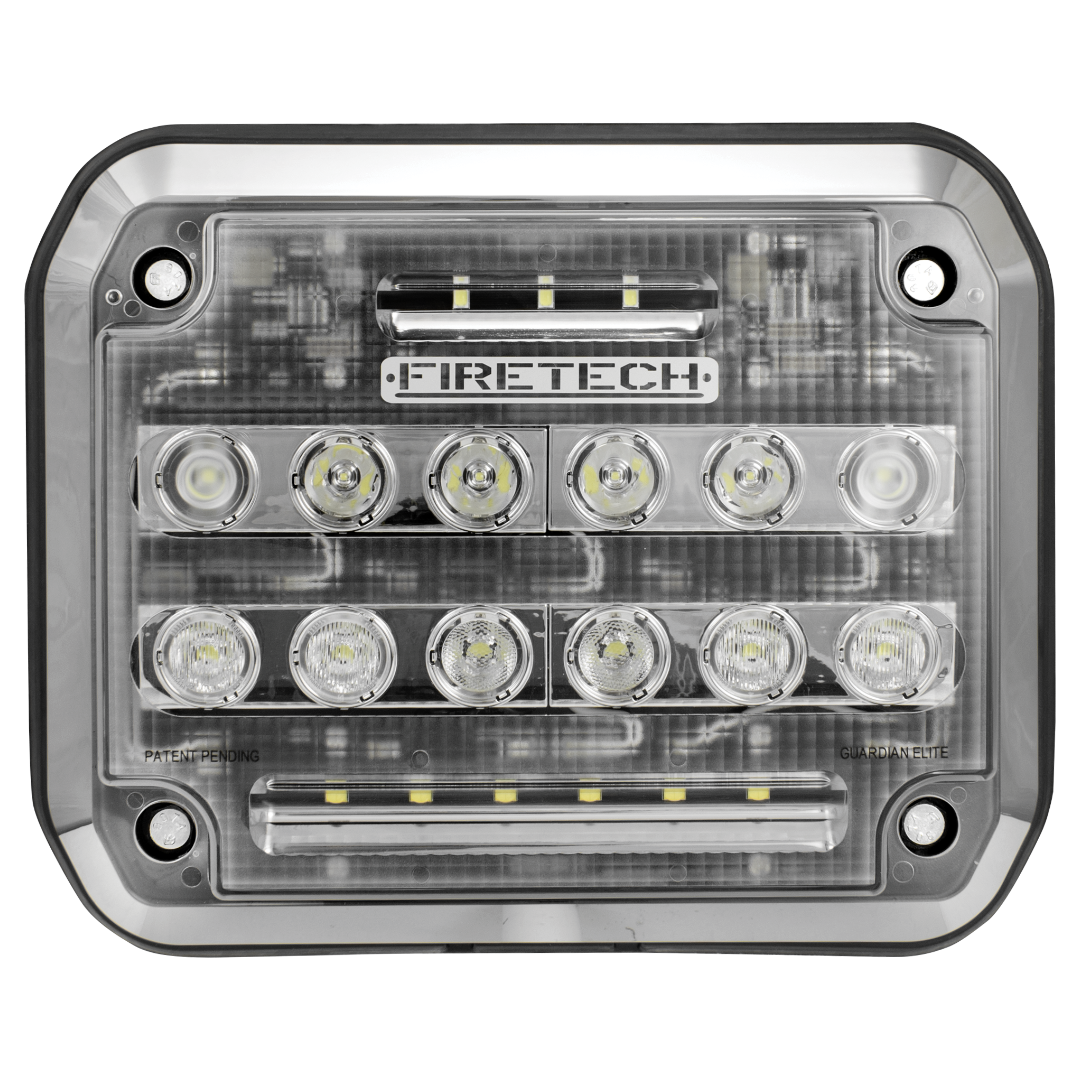

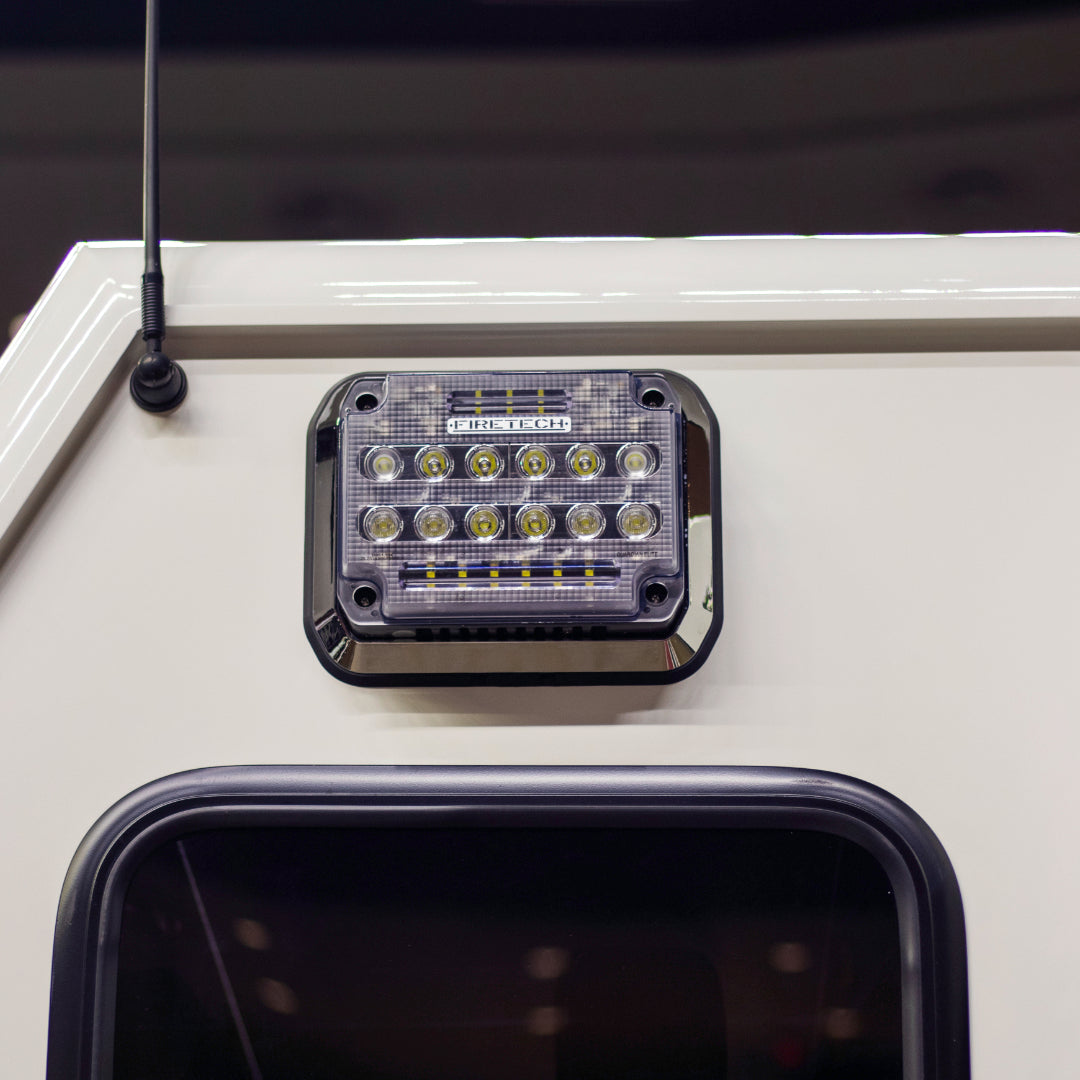

The Guardian Elite Surface Mounted Scene light is a 7"×9" 900 series-sized fixture that produces up to four times the light output, for similar cost, with a lifetime warranty.
The Guardian Elite offers as much useable light as fixtures commonly advertised as 20,000 lumens in the fire market despite it being close to 1/2 the size (and cost). The Guardian Elite will produce an earth-shattering 12,500 effective lumens, which compares favorably against fixtures commonly advertised in the fire industry as 20,000 lumens or more.
Industry Standard Size
The Guardian Elite scene light uses a 7.25”x 5.25” mounting hole layout which matches the most common 7×9 “900 series” fixtures in the industry. This uniformity across the industry makes the Guardian Elite Scene Light a perfect self-installable replacement, all without needing to drill any new holes in your rig.
Specifications
Guardian Elite Scene Light (all models):
Dimensions: 10.6” x 2.8” x 8.7”
Raw Lumens: 20,500 lm
Max. Amp. @12.8V: 10.41A
Peak Watt.: 120W
Input Voltage: 9-32V DC
IP Rating: IP68/69K
Vibration Rating: 21 GRMS
| Model | Part Number | Bezel Color |
|---|---|---|
| Guardian Elite Scene Light | FT-GESM | Chrome |
| Guardian Elite Scene Light | FT-GESM-B | Black |
