Thin, bright, and built to last: the FireTech ® G-Series warning lights are aluminum warning light that fit virtually anywhere.

Small but Mighty

Thin, bright, and built to last: the FireTech ® G-Series warning lights are aluminum warning lights that fit virtually anywhere.

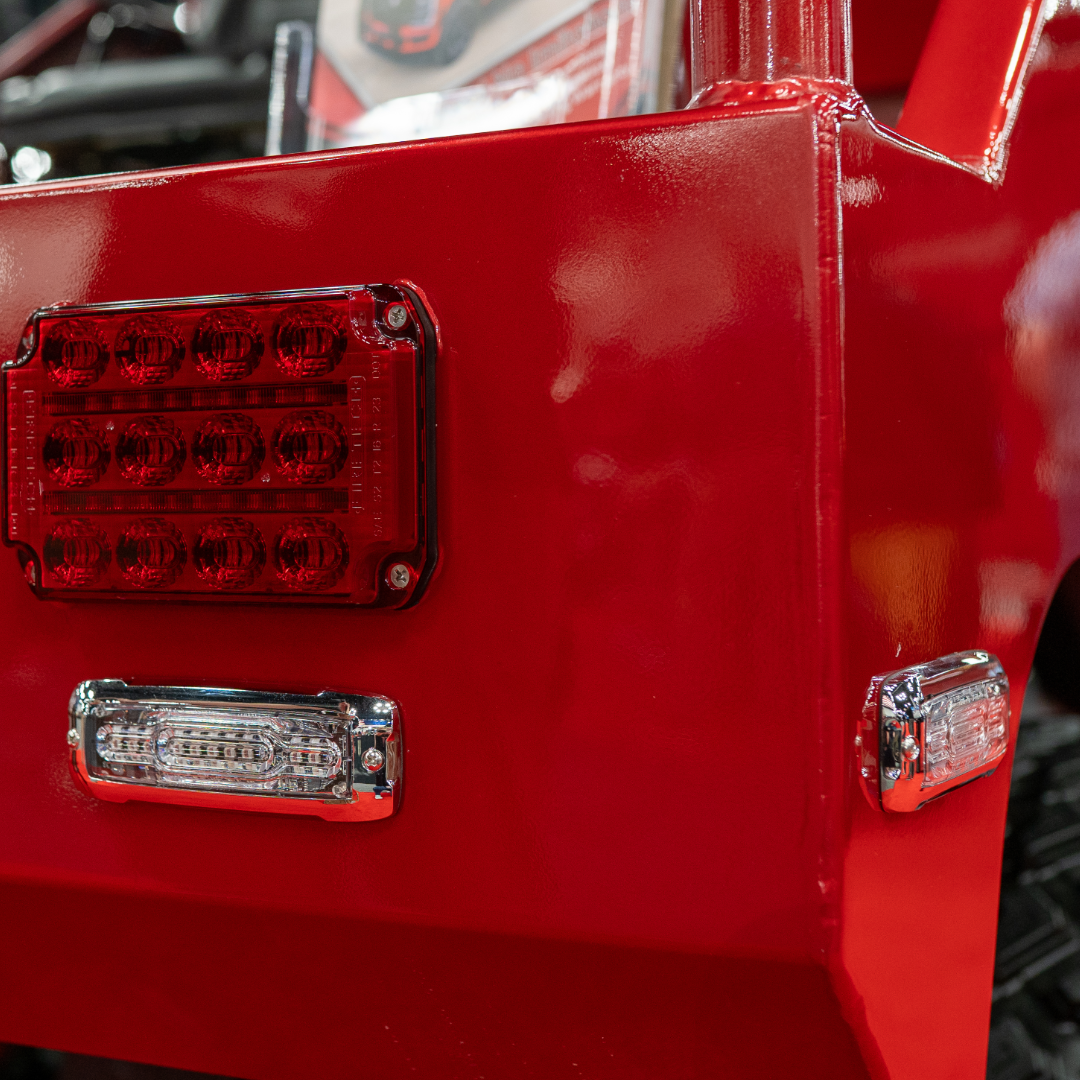

G25 is available in dual configurations. On a fire apparatus, these fixtures can be installed in the rub rail, on the bumper, or in other areas where a smaller footprint is required and durability is key. Additionally, these fixtures can be set to steady burn and be controlled by a variety of water level indicator driver modules, or “smart” lighting systems with user programmable outputs.

Their beam dispersion's are optimized for applications lower on the vehicle, where the fixtures are mounted close to eye-level of oncoming traffic. This is created through high-precision optics, giving a narrow focus to the light in the vertical plane while displaying a wide breadth of light horizontally.

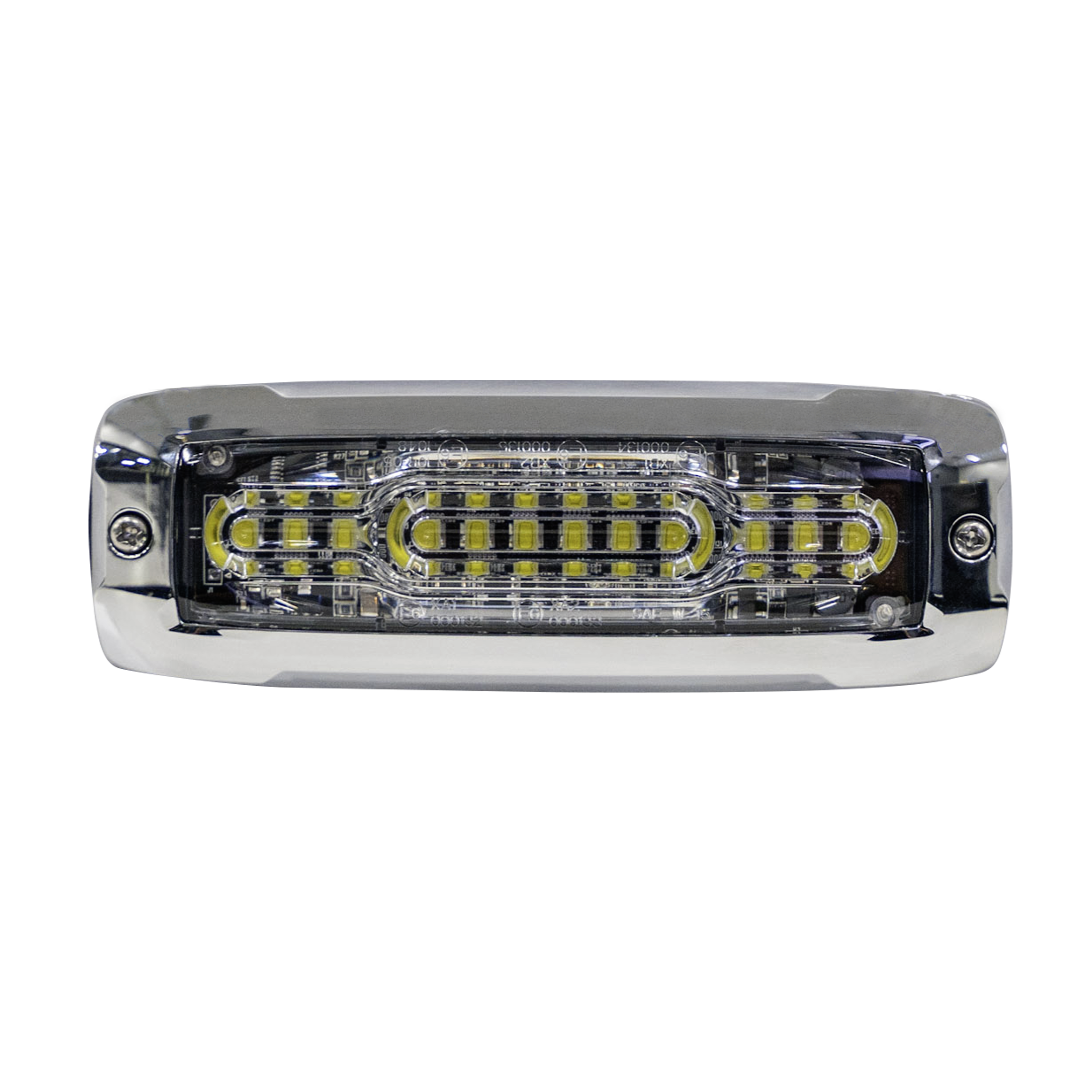

Each fixture ships with a Chrome bezel; blackout bezels are available as optional accessories.





Specifications

G25 Warning Light (all models):
Dimensions: 5.2” x 1.8” x 0.4”
Weight: 0.2 lbs.
Max. Amp. @12.8V: 1.6A
Peak Watt.: 21.1W
Input Voltage: 9-32V DC
IP Rating: IPX8
Vibration Rating: 21 GRMS

Model Part Number LED Color
G25 Warning LightFT-G25-AMBERAmber
G25 Warning LightFT-G25-BLUEBlue
G25 Warning LightFT-G25-GREENGreen
G25 Warning LightFT-G25-REDRed
G25 Warning LightFT-G25-WHITEWhite
G25 Warning LightFT-G25-AWAmber/White
G25 Warning LightFT-G25-RWRed/White
G25 Blackout BezelP-G25-BOBEZEL
