Transferring the maximum light from the source to the scene
The Guardian® Pole Mounted Scene Light is available in 10,000 lumen equivalent light output.

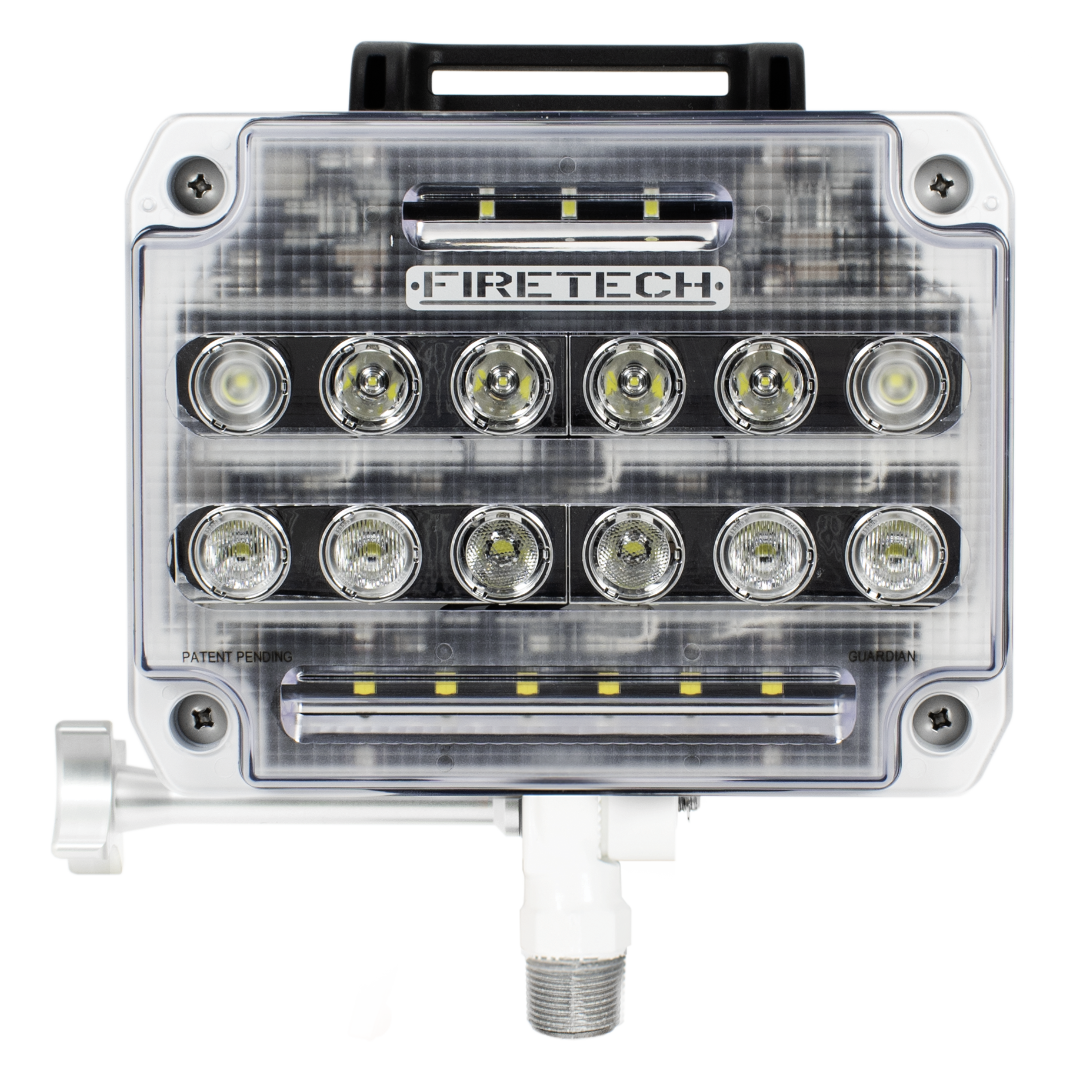

The Pole Mounted Guardian series fixtures use large LEDs, under-driven for extreme luminous efficacy, and articulated circuit boards so our symmetrical collimator optics can transfer the maximum light from the SOURCE to the SCENE.
Specifications
Pole Mounted Guardian (all models): 75W peak, IP68/69K, 21 GRMS vibration rating.
Pole Mounted Guardian (No Switch)
| Model | Part Number | Dimensions (LxWxH) | Raw Lumens | Housing Color | Max. Amp. | Input Voltage |
|---|---|---|---|---|---|---|
| Pole Mounted Guardian (DC) | FT-SL-GSM-B | 8.66" x 5.31" x 9.70" | 10,000 lm | Black | 5.83A @12.8V DC | 9-32V DC |
| Pole Mounted Guardian (DC) | FT-SL-GSM-W | 8.66" x 5.31" x 9.70" | 10,000 lm | White | 5.83A @12.8V DC | 9-32V DC |
| Pole Mounted Guardian (AC) | FT-SL-GSM-110-B | 8.66" x 5.31" x 9.70" | 10,000 lm | Black | 0.583A @120V AC | 0-277V AC |
| Pole Mounted Guardian (AC) | FT-SL-GSM-110-W | 8.66" x 5.31" x 9.70" | 10,000 lm | White | 0.583A @120V AC | 0-277V AC |
Pole Mounted Guardian (With Switch)
| Model | Part Number | Dimensions (LxWxH) | Raw Lumens | Housing Color | Max. Amp. | Input Voltage |
|---|---|---|---|---|---|---|
| Pole Mounted Guardian: With Switch (AC) | FT-SL-GSM-110-SW-B | 8.66" x 5.31" x 9.70" | 10,000 lm | Black | 0.583A @120V AC | 0-277V AC |
| Pole Mounted Guardian: With Switch (AC) | FT-SL-GSM-110-SW-W | 8.66" x 5.31" x 9.70" | 10,000 lm | White | 0.583A @120V AC | 0-277V AC |
| Pole Mounted Guardian: With Switch (DC) | FT-SL-GSM-SW-B | 8.66" x 5.31" x 9.70" | 10,000 lm | Black | 5.83A @12.8V DC | 9-32V DC |
| Pole Mounted Guardian: With Switch (DC) | FT-SL-GSM-SW-W | 8.66" x 5.31" x 9.70" | 10,000 lm | White | 5.83A @12.8V DC | 9-32V DC |
