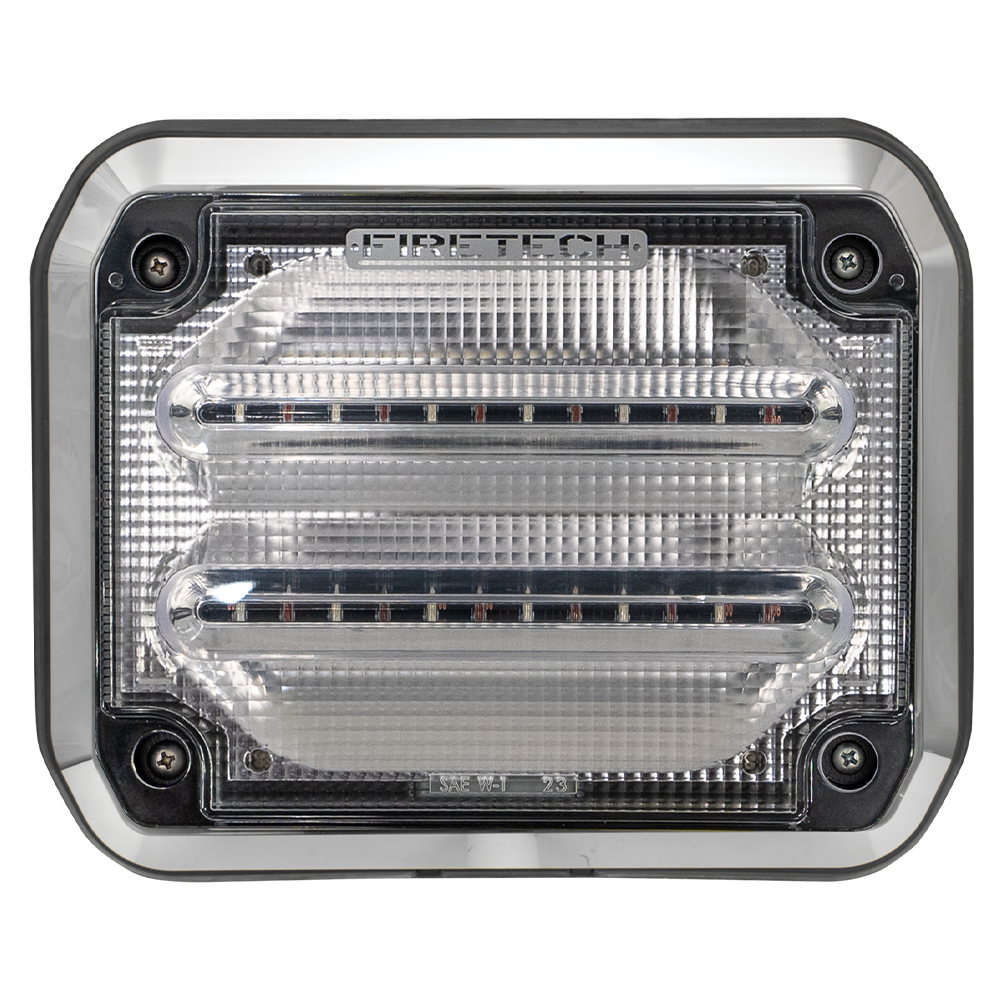

A singular white rectangular light
HVC Guardian®
HVC Guardian®
HVC Guardian®
HVC Guardian®

FireTech

HVC Guardian®

The HVC Guardian Warning Lights are super durable because they are the only fixtures in their class to feature a full-sized aluminum heat sink and a lens that never comes in contact with the mounting hardware. Overheated circuitry is the number one killer of LEDs in public safety vehicles and moisture intrusion is a close runner up. With the HiViz Connect™ Guardian Series Warning Lights, you can rest assured we’ve got both areas covered and, if we’re wrong, we will replace the fixture through our industry-leading advance exchange lifetime warranty.

The Ultimate Surface Mounted Warning Lights

These lights are infinitely updatable with unlimited flash patterns. They also feature forward-facing single or dual color LEDs with chrome reflectors and optical collimators for high intensity light output, plus side-firing LEDs that illuminate the side of the truck which increases its visibility to other drivers.

Crack-Free Corner Design

Screws never come in contact with lens, preventing cracking and moisture intrusion. They’re so strong you can hang a Hummer from them!

Precision Linear Optics

Using a linear optic this fixture can generate an ultra-wide beam that is visible for miles.

High Performance Aluminum Heat Sink

Excessive temperature is the #1 killer of LED products in the public safety industry. Most warning lights are designed with a thin plate of sheet metal behind the LEDs. Instead, we use an oversized aluminum heat sink which keeps the fixture cooler. A cooler fixture means you’re less likely to need our warranty. But if you do, we’ve got your back for life.

Nitto Temish Vent

The second most common killer of LED lights in our industry is moisture. Our Nitto TEMISH Vent allows moisture to vent ensuring no unwanted condensation or water droplets trapped in the lens. Combining crack-proof corners with the TEMISH vent, you can leave your worries at the station.

Wireless Connectivity

Configure features and settings from a smartphone app, or leverage wireless smart synchronization limiting the need to re-run wiring during apparatus retrofit.

Side Firing LEDs

Viewing angle matters, and more angles means more visibility – especially on windy roads. The HVC Guardian Warning Lights feature both forward-facing LEDs, plus side-firing LEDs that illuminate the side of the truck making the truck more visible to other drivers. Parking off-angle? We’ve got you covered.

Specifications

HVC Guardian® Warning Lights (all models):
Dimensions: 10.6” x 1.9” x 8.7”
Weight: 4.4 lbs.
Max. Amp. @12.8V: 2.12A
Peak Watt.: 42.6W
Input Voltage: 11-16V DC
IP Rating: IP68/69K
Vibration Rating: 21 GRMS

Model Part Number LED Color
HVC Guardian® Warning LightFT-HVC-GSM-WN-RRed
HVC Guardian® Warning LightFT-HVC-GSM-WN-WWhite
HVC Guardian® Warning LightFT-HVC-GSM-WN-BBlue
HVC Guardian® Warning LightFT-HVC-GSM-WN-AAmber
HVC Guardian® Warning LightFT-HVC-GSM-WN-BWBlue/White
HVC Guardian® Warning LightFT-HVC-GSM-WN-RARed/Amber
HVC Guardian® Warning LightFT-HVC-GSM-WN-RGRed/Green
HVC Guardian® Warning LightFT-HVC-GSM-WN-RWRed/White
HVC Guardian® Warning LightFT-HVC-GSM-WN-RBRed/Blue
HVC Guardian® Warning LightFT-HVC-GSM-WN-AWAmber/White
