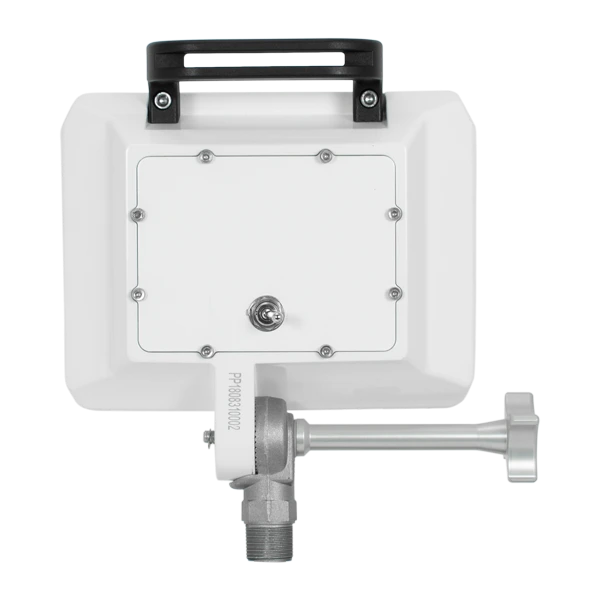

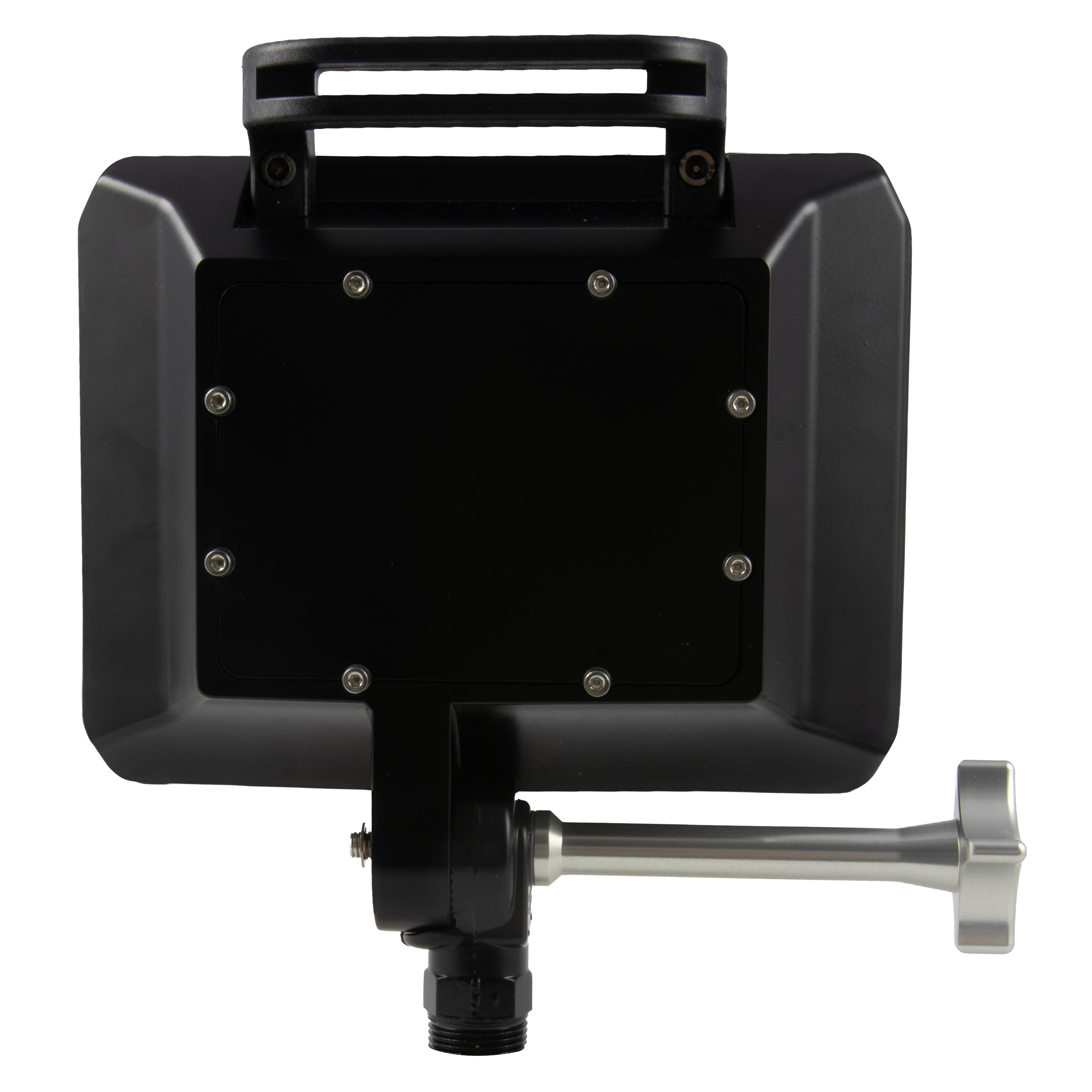

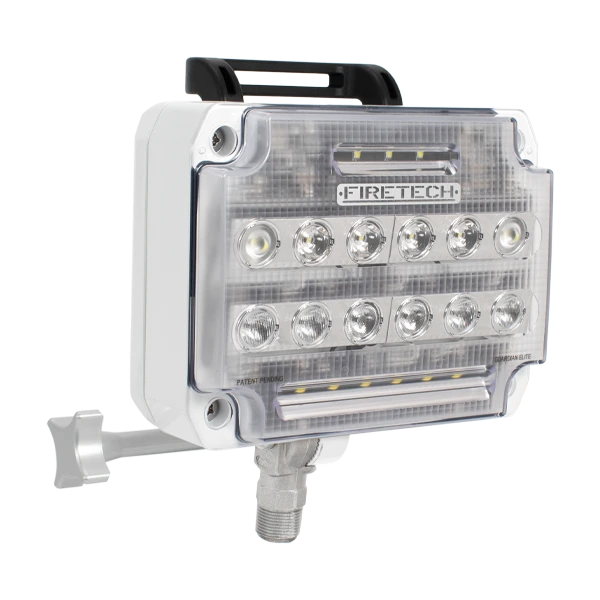

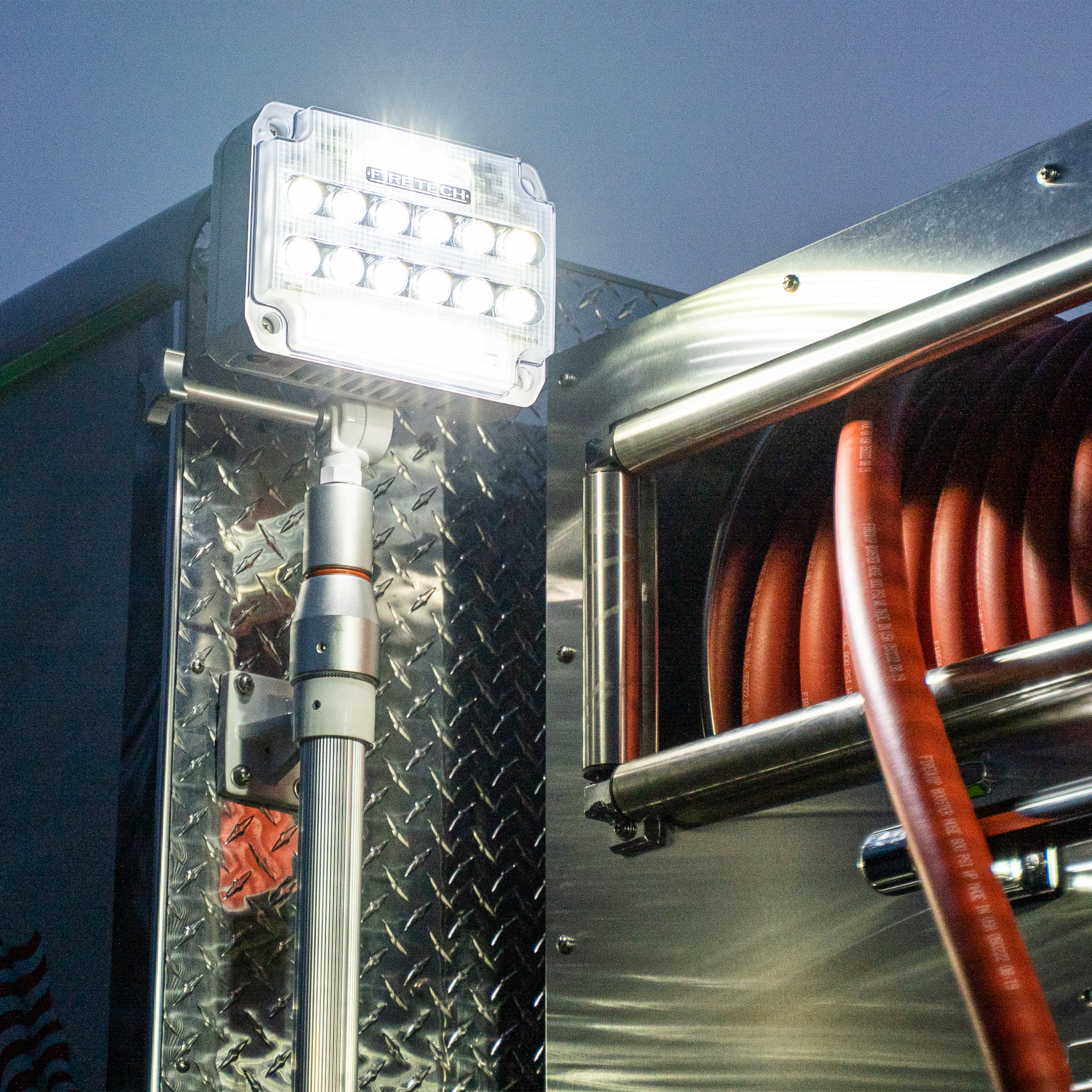

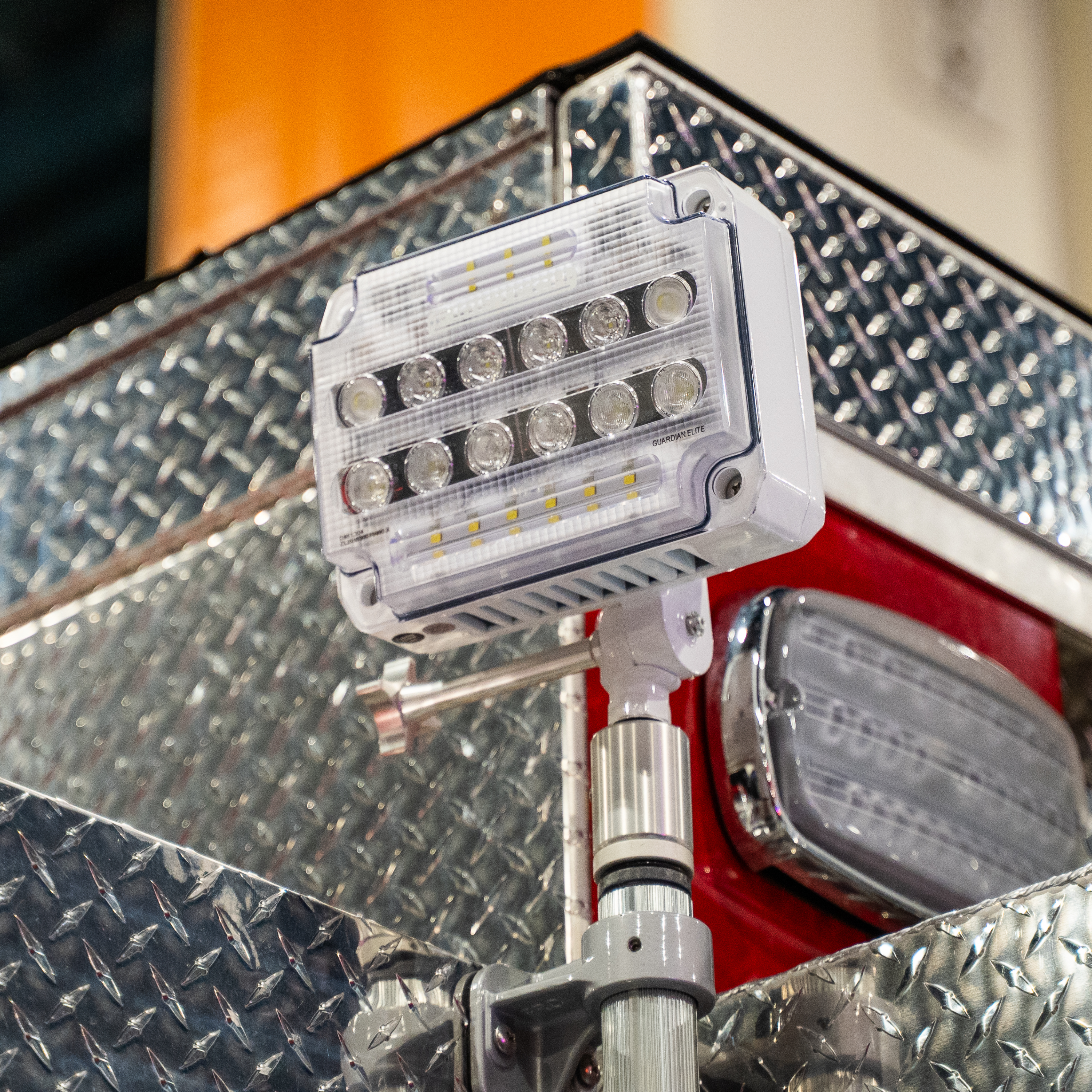

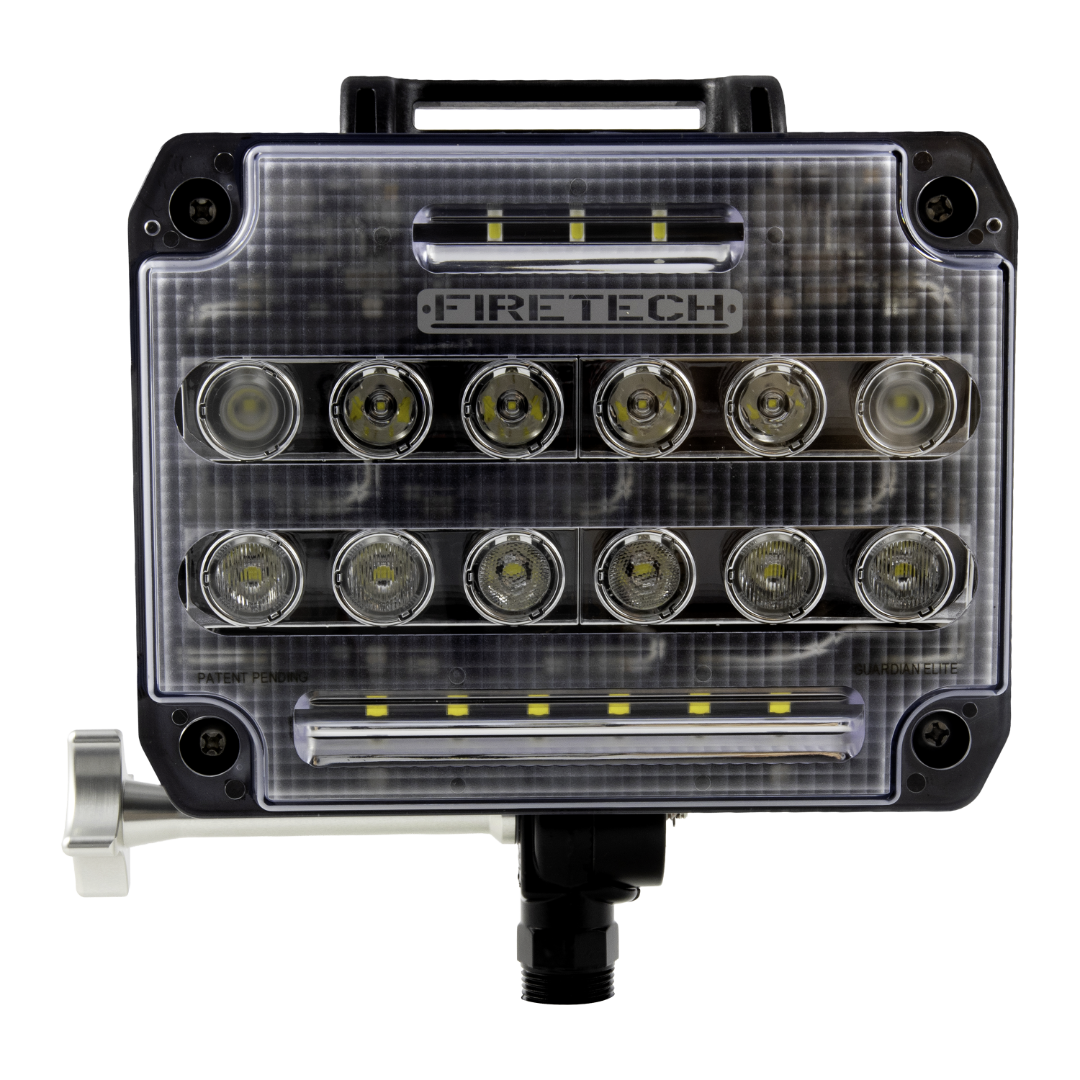

Transferring the maximum light from the source to the scene
The SL-GSM Pole Mounted Scene Light is available in a sun-shaming 20,000 equivalent lumen configuration for times when you simply can't be left to get the job done in the dark.
The Pole Mounted Guardian series fixtures use large LEDs, under-driven for extreme luminous efficacy, and articulated circuit boards so that our symmetrical collimator optics can transfer the maximum light from the SOURCE to the SCENE.
Specifications
Pole Mounted Guardian Elite (all models): 120W peak, IP68/69K, 21 GRMS vibration rating.
Pole Mounted Guardian Elite (No Switch)
| Model | Part Number | Dimensions (LxWxH) | Raw Lumens | Housing Color | Max. Amp. | Input Voltage |
|---|---|---|---|---|---|---|
| Pole Mounted Guardian Elite (DC) | FT-SL-GESM-B | 8.66" x 5.31" x 9.70" | 20,500 lm | Black | 10.41A @12.8V DC | 9-32V DC |
| Pole Mounted Guardian Elite (DC) | FT-SL-GESM-W | 8.66" x 5.31" x 9.70" | 20,500 lm | White | 10.41A @12.8V DC | 9-32V DC |
| Pole Mounted Guardian Elite (AC) | FT-SL-GESM-110-B | 8.66" x 5.31" x 9.70" | 20,500 lm | Black | 1.04A @120V AC | 0-277V AC |
| Pole Mounted Guardian Elite (AC) | FT-SL-GESM-110-W | 8.66" x 5.31" x 9.70" | 20,500 lm | White | 1.04A @120V AC | 0-277V AC |
Pole Mounted Guardian Elite (With Switch)
| Model | Part Number | Dimensions (LxWxH) | Raw Lumens | Housing Color | Max. Amp. | Input Voltage |
|---|---|---|---|---|---|---|
| Pole Mounted Guardian Elite: With Switch (AC) | FT-SL-GESM-110-SW-B | 8.66" x 5.31" x 9.70" | 20,500 lm | Black | 1.04A @120V AC | 0-277V AC |
| Pole Mounted Guardian Elite: With Switch (AC) | FT-SL-GESM-110-SW-W | 8.66" x 5.31" x 9.70" | 20,500 lm | White | 1.04A @120V AC | 0-277V AC |
| Pole Mounted Guardian Elite: With Switch (DC) | FT-SL-GESM-SW-B | 8.66" x 5.31" x 9.70" | 20,500 lm | Black | 10.41A @12.8V DC | 9-32V DC |
| Pole Mounted Guardian Elite: With Switch (DC) | FT-SL-GESM-SW-W | 8.66" x 5.31" x 9.70" | 20,500 lm | White | 10.41A @12.8V DC | 9-32V DC |
