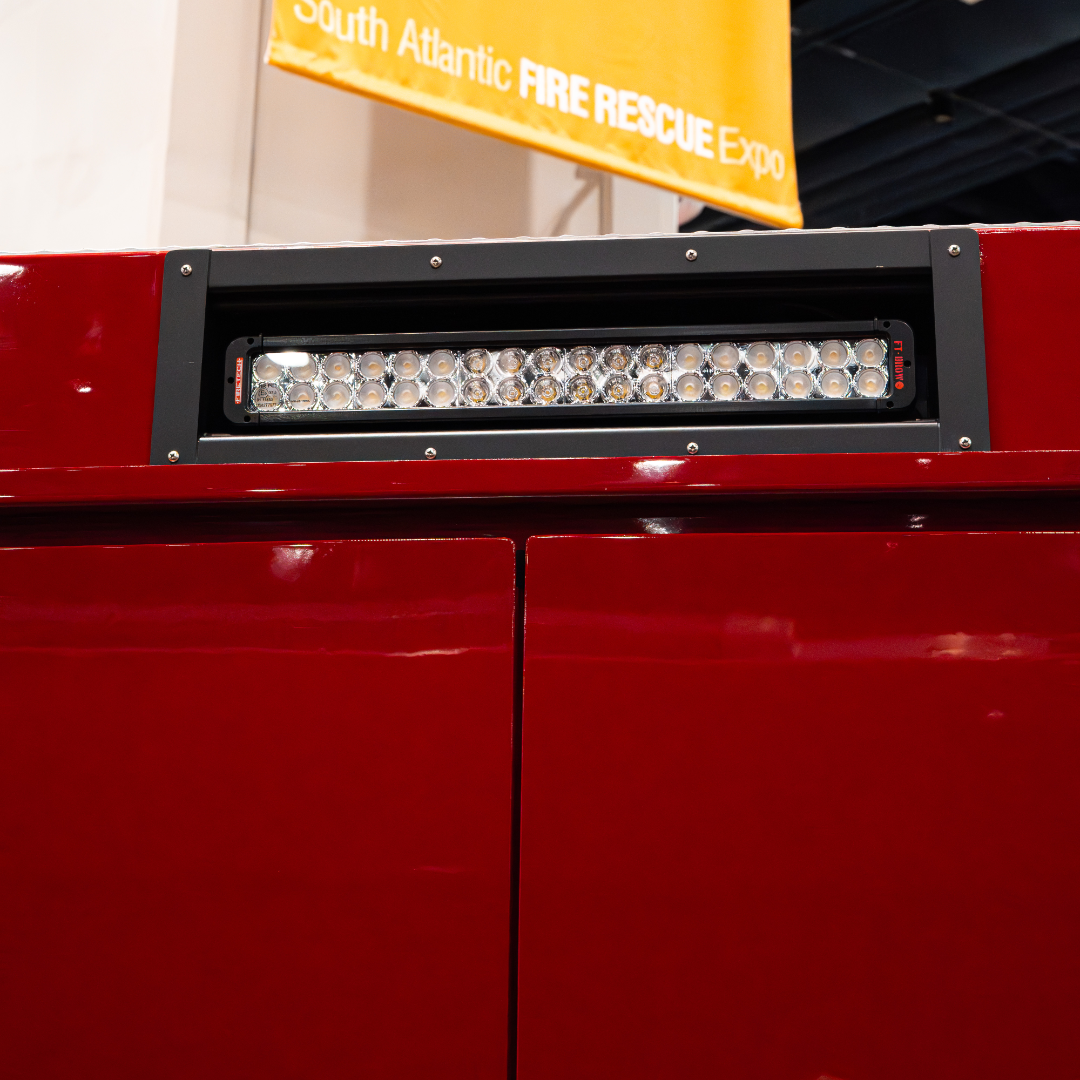

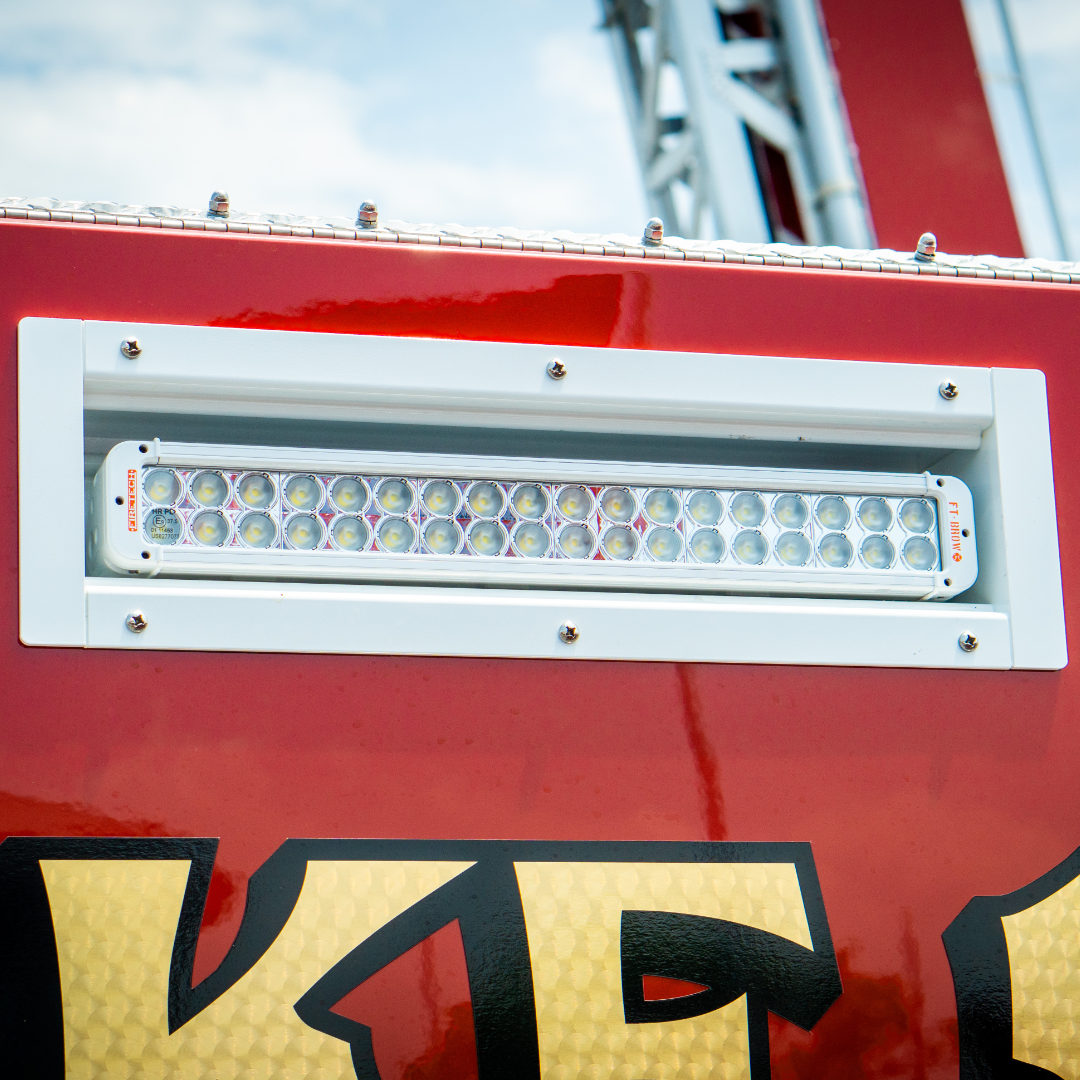

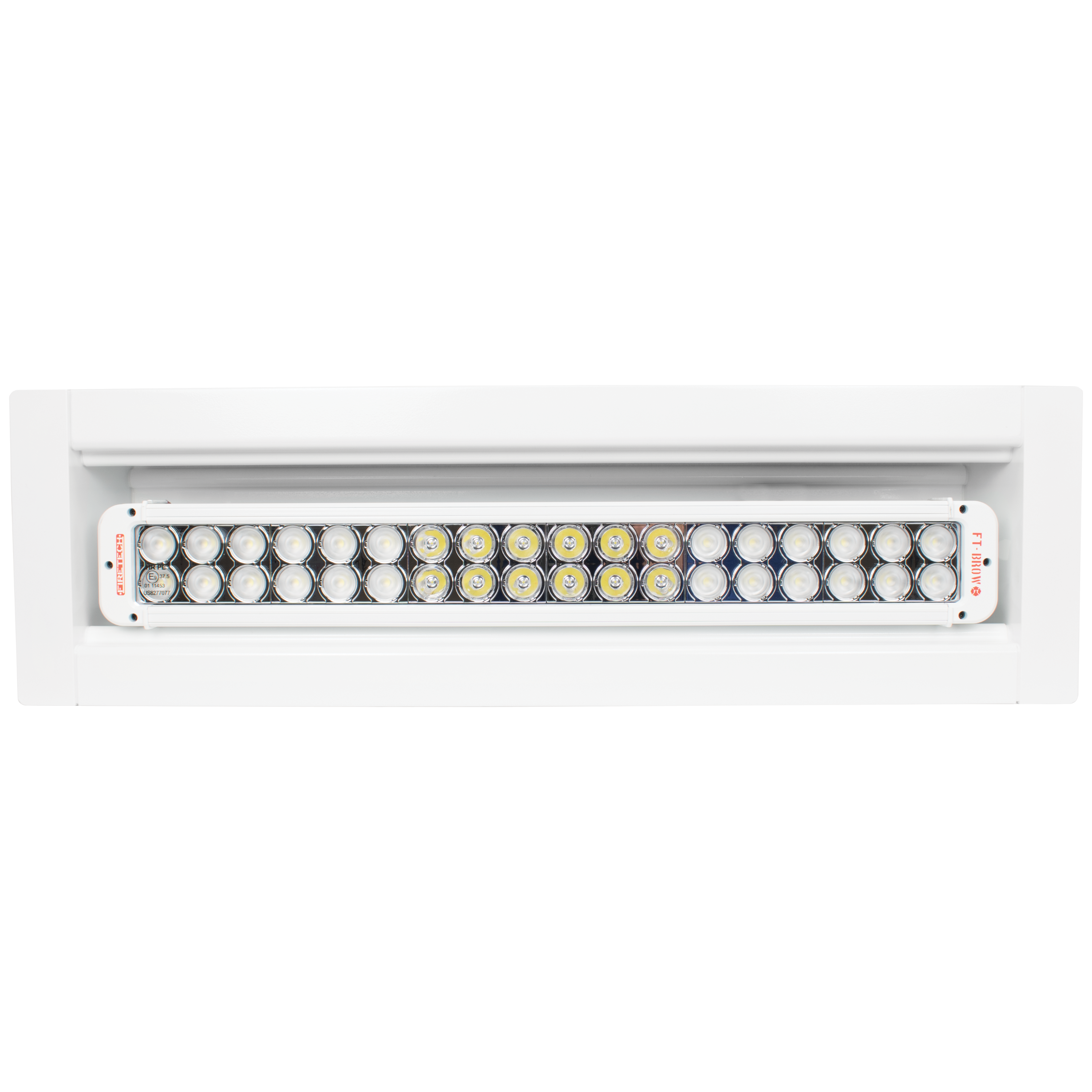

With output that rivals 20,000-lumen fixtures, the 19,000 Lumen MiniBrow is available in spot, flood, or combination optics and in a white or black housing. This fixture can be adjusted once installed and is guaranteed for the life of your apparatus.
Need a configuration tip? Flood optics are preferred around the rear of the apparatus, while combination optics often do a better job on areas towards the front (think "spotting addresses").This fixture can be adjusted once installed and is guaranteed for the life of your apparatus.
Specifications
Raw lumens: 19,008 lm
Max. amp. @12.8V: 15A
Peak watt.: 180W
Input voltage: 9–32V DC
IP rating: IP68/69K
Vibration rating: 21 GRMS
| Model | Part number | Dimensions (L×W×H) | Optics |
|---|---|---|---|
| Recessed 36 LED MiniBrow | FT-MB-2.18-REC-FT-* |
24.53" × 4.72" × 7.28" | Combination |
| Recessed36 LED MiniBrow † | FT-MB-2.18-REC-F-* |
24.53" × 4.72" × 7.28" | Flood |
† — Special build item with an MOQ of 20 or a 10% short run surcharge.
* — Housing color options: “B” — Black, “W” — White.
