Architect Compact 8-Button Light Controller
Architect Compact 8-Button Light Controller

FireTech

Architect Compact 8-Button Light Controller

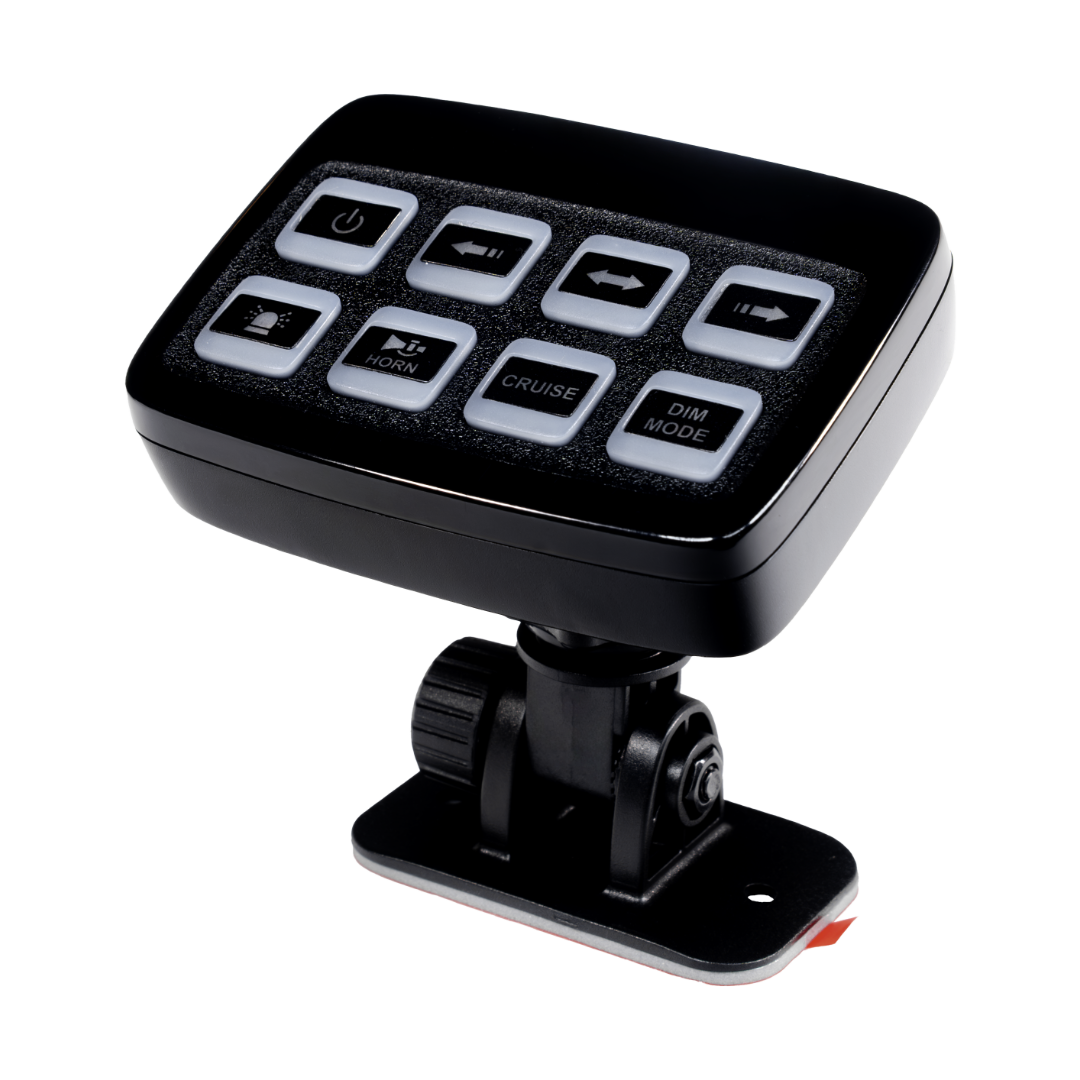

Architect is a compact control panel for operating vehicle lighting without adding a siren controller. Eight buttons and an integrated relay give installers a straightforward way to assign and control lighting functions in volunteer, utility, and other response-vehicle applications.

$250.00

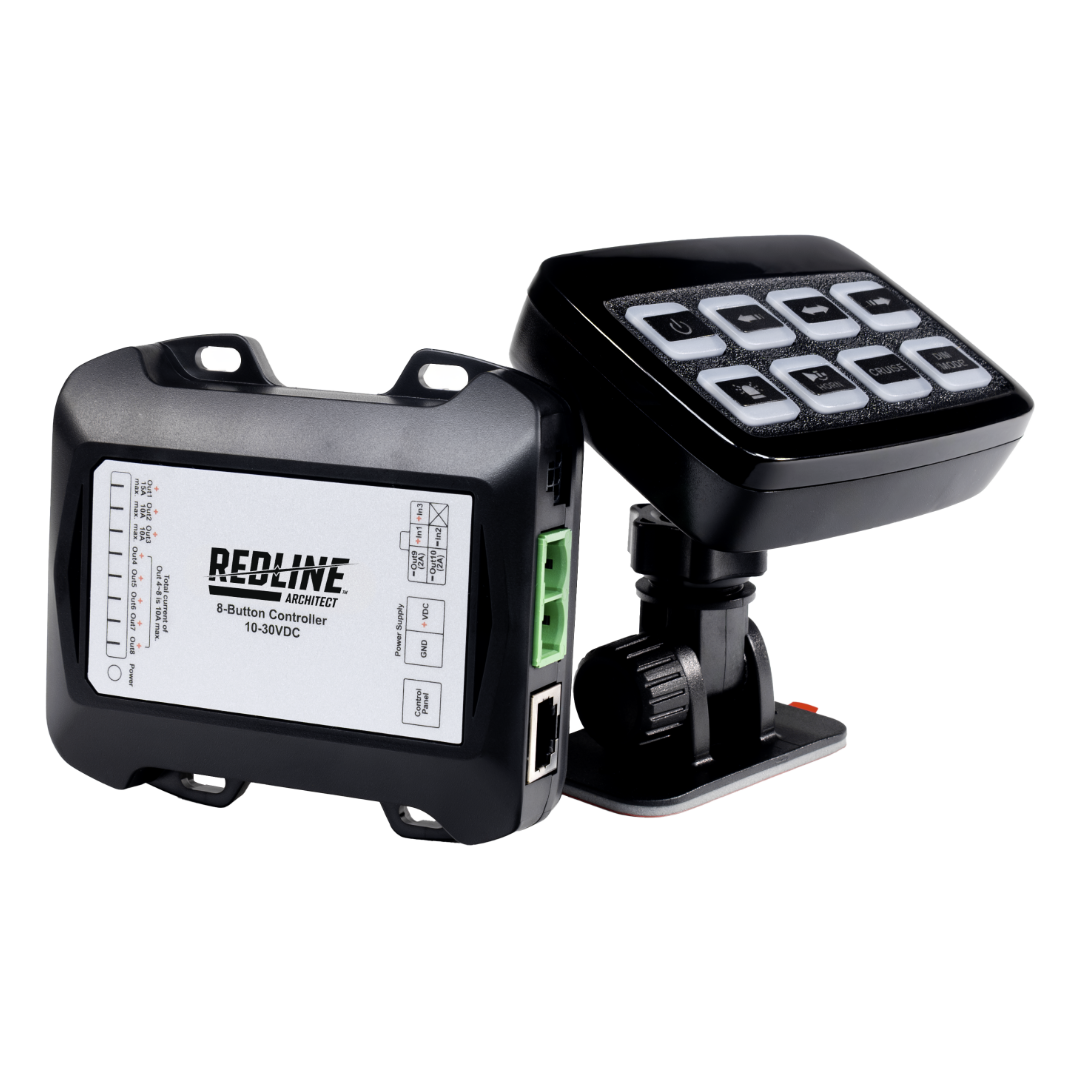

Featuring a simple control panel with 8 switches and an integrated relay for precise command, this controller includes a 12-foot data cable for flexible installation and a suction cup bracket for easy mounting.

  • Eight-button control panel.
  • Integrated relay for light-control applications.
  • Designed to control lighting without a siren system.
  • Compact format for vehicle installations.
  • Suction-cup mounting.
  • Useful for simple, dedicated lighting control where a full siren system is not required.
  • Standby power saving mode
  • 3 inputs
  • One 15A output
  • Seven 10A outputs

Specifications

ARCHITECT SWITCH PANEL:
LED / color: N/A
Dimensions (L, W, D): 3.74" × 3.61" × 0.99"
Max Amp. @12V DC: 45A
Peak Watt.: N/A
Power: 10-30V DC
Fuse rating @12V DC: 50A
Mount: VHB Mount
Certifications: N/A

Product Part Number
ARCHITECT SWITCH PANEL RL-ARCT

Downloads

Architect Instruction Manual
