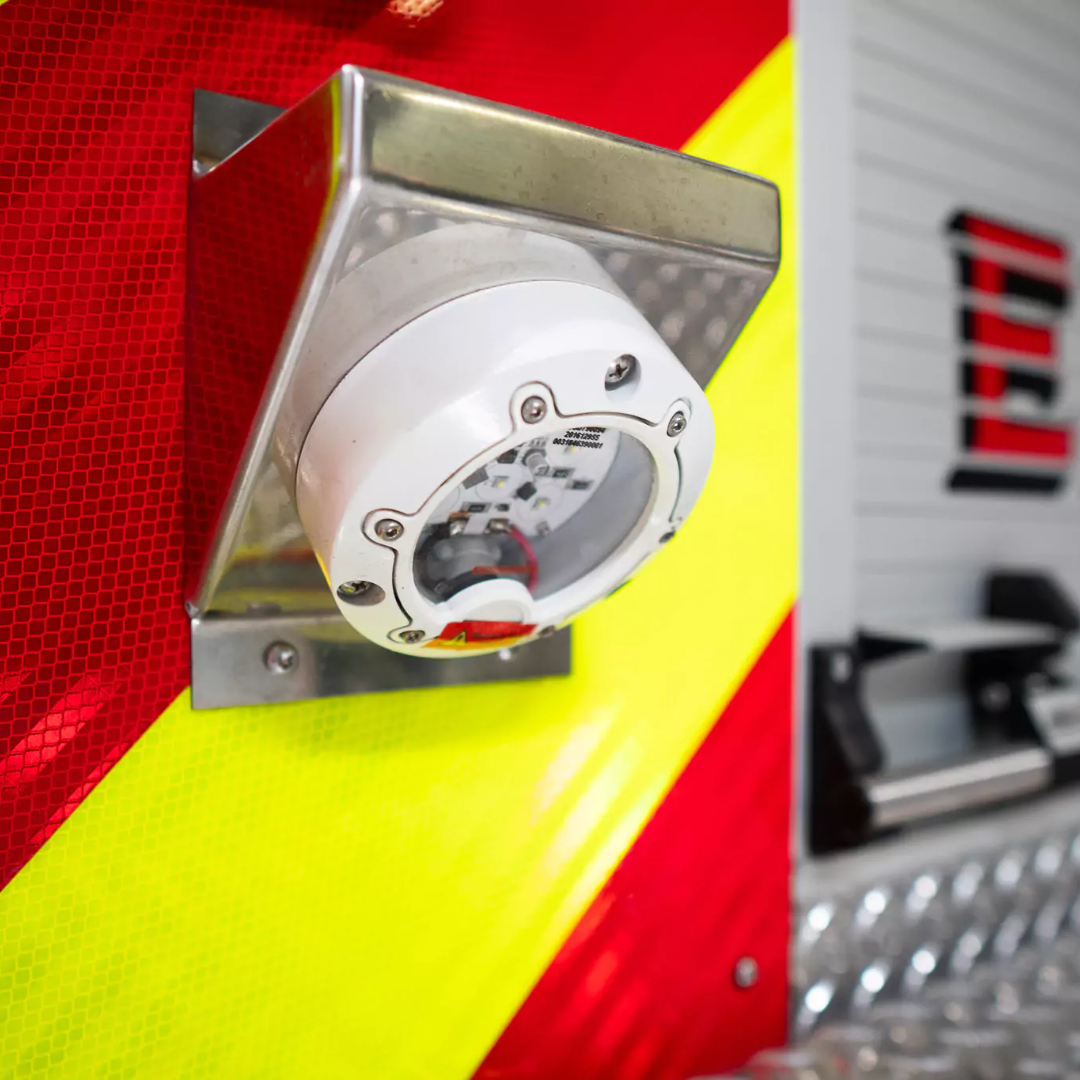

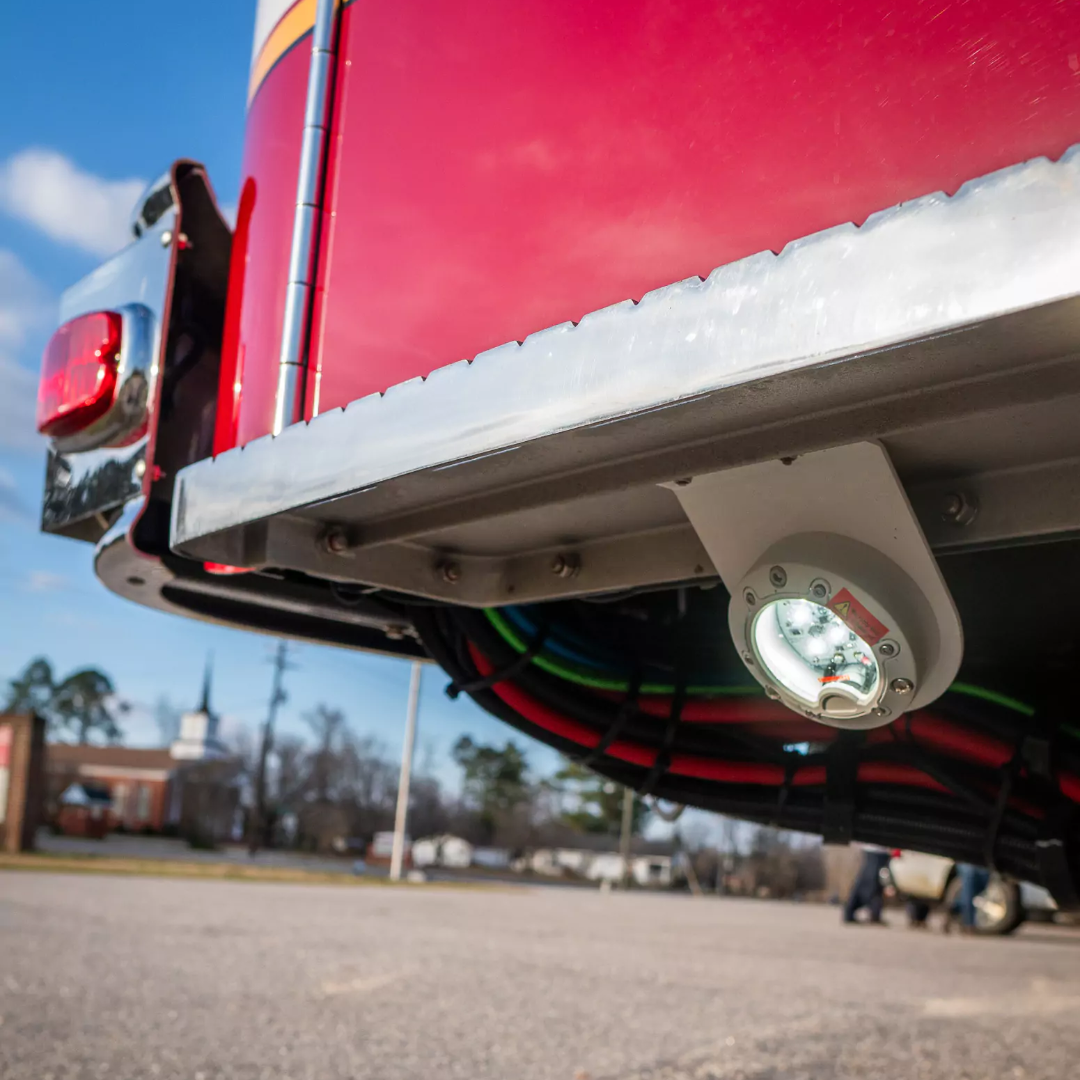

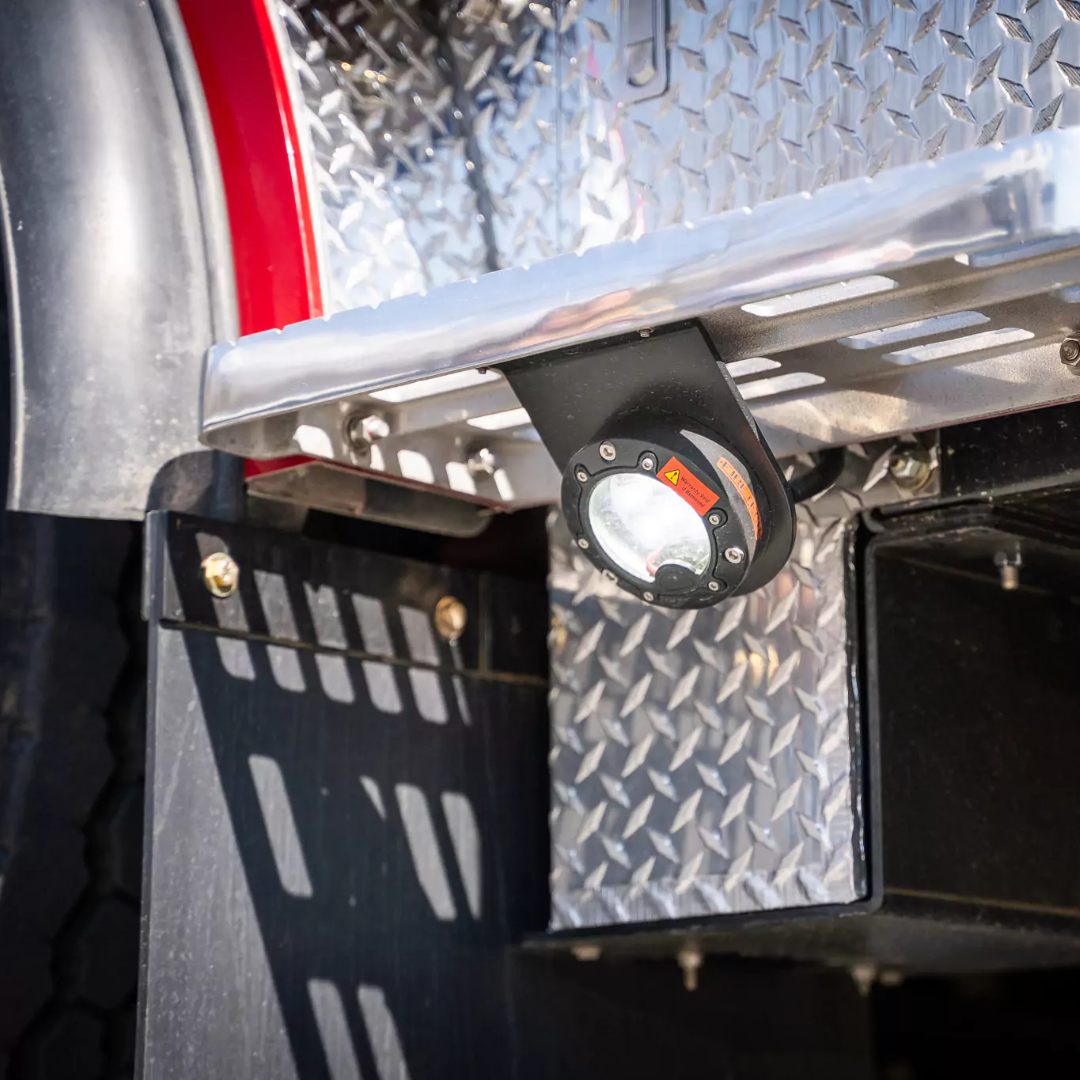

Despite being festooned with scene lights, brow lights, compartment lights, and work lights, one area of the firetruck often overlooked is the undercarriage. NFPA 1901 and 1917 both require adequate illumination in areas on ingress and egress of the apparatus. That’s where the FT-AQX Undercarriage Light comes in.
True to the FireTech brand, we’ve designed the ultimate undercarriage fixture guaranteed never to have a problem regardless of the mounting location. The FT-AQX is rated to handle submersion up to 100′ in water. If you submit a warranty claim on this sucker, we will probably have already seen your truck on the evening news!
Dual Red and White Output Functions

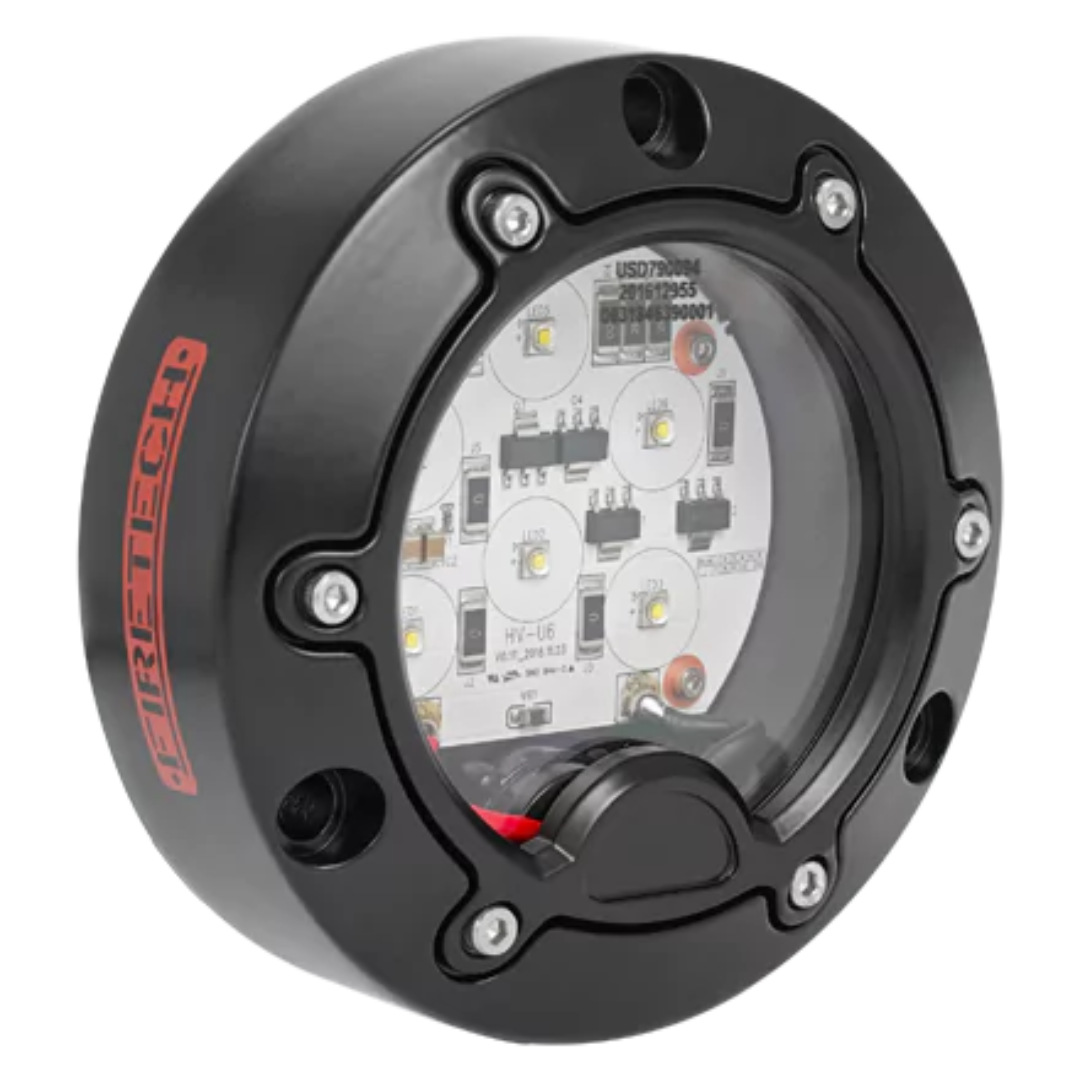

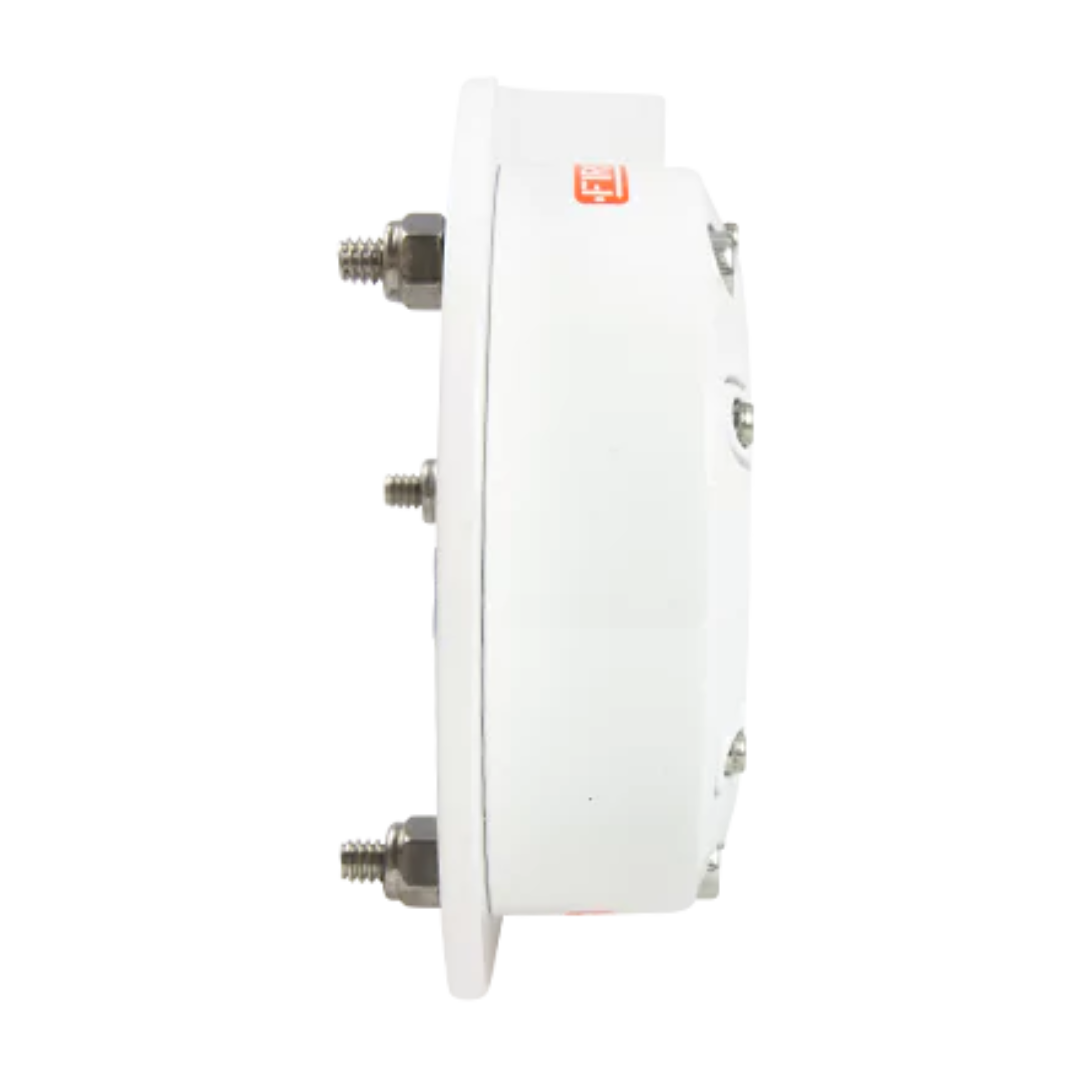

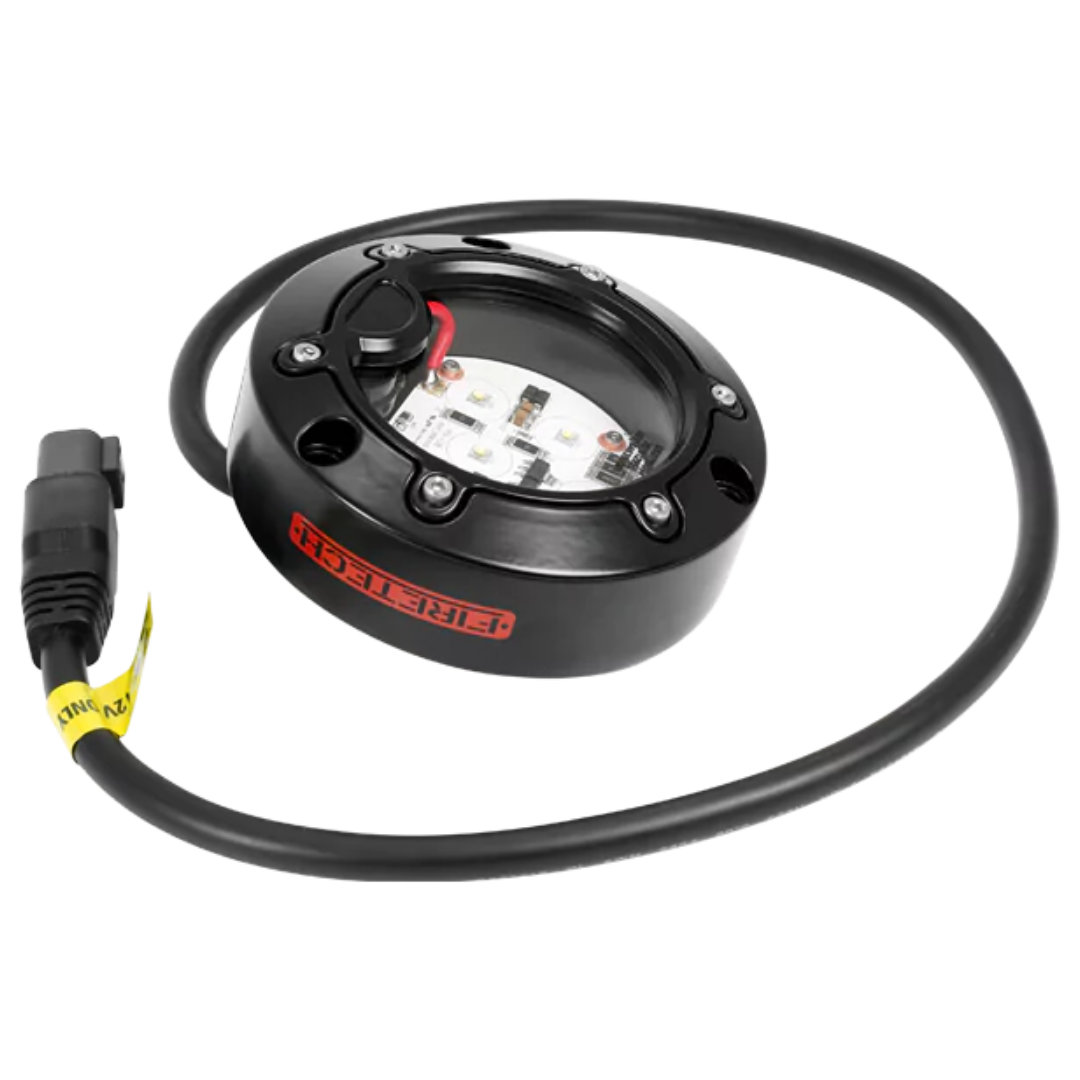

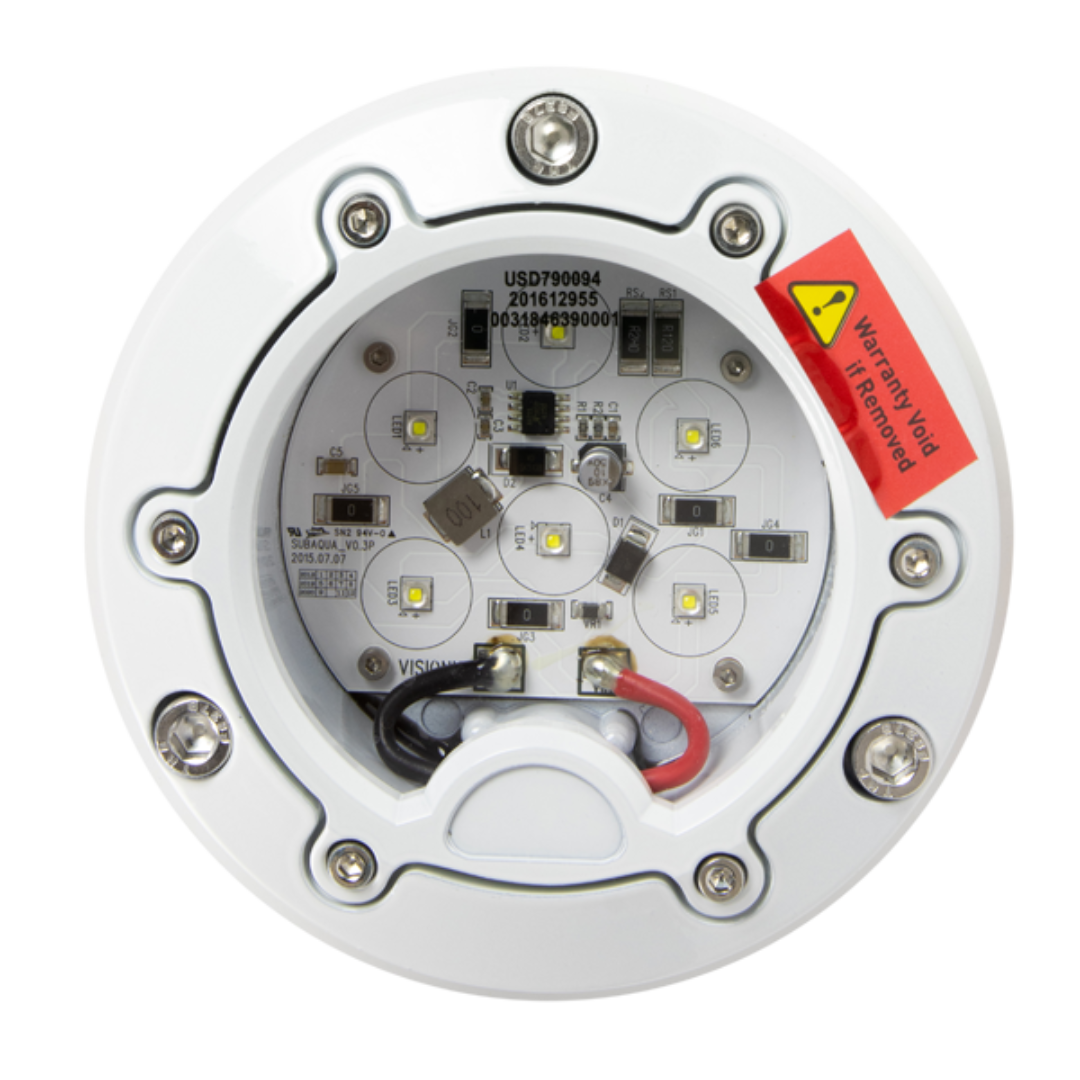

The most durable undercarriage light in the industry is packed with the added feature of dual red & white LEDs. Available in a black or white housing, the new Undercarriage light can now easily switch between a red and white output and function as a flashing (external flasher required) or static light to provide a smooth flood beam around your apparatus.
Specifications
Sub-Aqua Undercarriage Light (all SKUs): 1,500 lm raw lumens, 22W peak, 9-32V DC input, IP68/69K, 8.7 GRMS vibration rating.
| Model | LED Color | Part Number | Dimensions (LxWxH) | Weight | Max. Amp. @12.8V |
|---|---|---|---|---|---|
| Sub-Aqua Undercarriage Light | White | FT-CU-AQX-* | 4.13" x 1.25" | 1.25 lbs. | 1.833A |
| Sub-Aqua Undercarriage Light | Red/White | FT-CU-AQX-RW-* | 4.13" x 1.25" | 1.25 lbs. | 1.833A |
| Sub-Aqua Undercarriage Light † | Blue | FT-CU-AQX-BLUE-* | 4.13" x 1.25" | 1.25 lbs. | 1.833A |
| Sub-Aqua Undercarriage Light † | Green | FT-CU-AQX-GREEN-* | 4.13" x 1.25" | 1.25 lbs. | 1.833A |

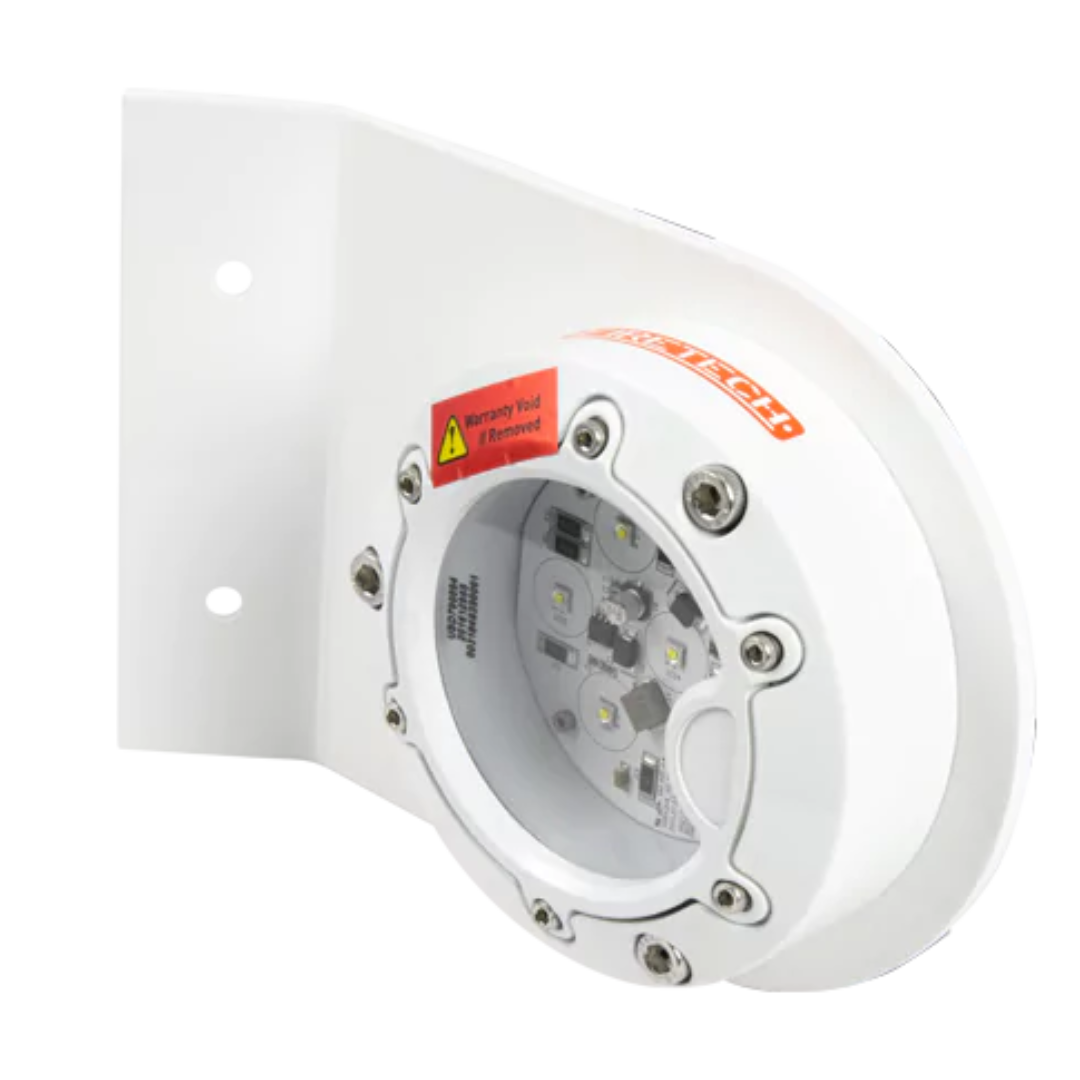

| Mounting Kit | — | FT-CU-AQX-**-*-KIT | 5" x 1.44" x 6.79" | 0.6 lbs. | — |
* - Housing color options: “B” - Black, “W” - White.
† - Special build item with an MOQ of 20 or a 10% short run surcharge.
