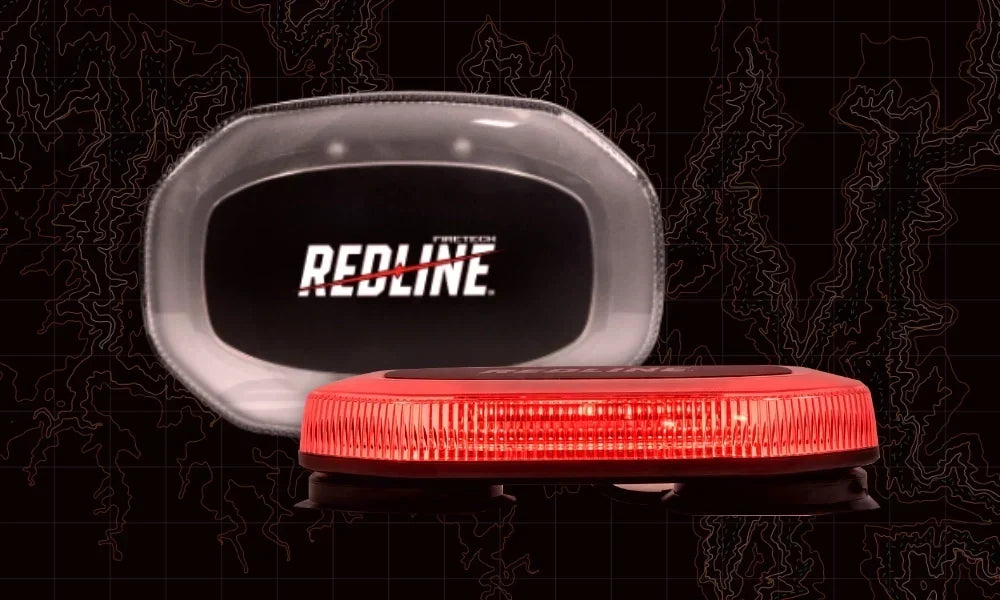

Meet the Redline Recon, a compact magnetic mini-bar built for volunteer POV trucks, chiefs, and light-duty rigs. Plug it in, get seen, no doubt about it.
The pager does not wait for a full upfit.
Most volunteer firefighters do not roll an engine to the first due. They roll the pickup they bought with their own money. The SUV that still has a car seat in the back. The work truck that was a plow yesterday and a response vehicle tonight. That is the reality Redline was built for and the Recon Compact Magnetic Mini-Bar is the first light a lot of those trucks should wear.
The Recon is a low-profile, single-color mini-bar that mounts with a magnetic base and suction assist, powers from a cigarette plug, and puts a serious warning signature on a steel roof in minutes. No drilling. No waiting on an installer. No excuse to run dark.
Born for the POV, not the catalog
FireTech built its name on apparatus lighting — the fixtures departments spec onto engines, ladders, and ambulances. Redline is the other half of that job: warning lights for volunteer firefighters, chiefs, and light-duty rigs headed to the same scenes.
The market already has cheap Amazon bars and corporate “trusted to perform” catalogs. Neither one was built by people who have stood in a bay at 2 a.m. and asked whether the truck in the driveway is ready. Redline is. The Recon is the no-BS version of that idea: a compact powerhouse you can put on the roof tonight.
No Doubt About It is the standard. The Recon exists so the first vehicle off your driveway is not the one people have to squint at.
Who the Recon is for
- The new volunteer standing up a first POV and needing a legitimate warning light before the permanent package is spec’d.
- The member whose existing bar died, looks cheap, or never belonged on the truck in the first place.
- Chiefs and officers who bounce between vehicles and need a bar that moves with them.
- Tow, plow, utility, and service trucks that need flexible warning equipment on a steel roof, not a permanent hole in the paint.
- Anyone building a Redline package who wants a temporary or secondary signature while the rest of the truck comes together.
If the roof is steel and the mission is real, Recon is the fastest way to look like you take both seriously.
What you get
This is not a toy light with a magnet glued to the bottom. Recon is a compact mini-bar with a clear lens over red, blue, or amber LEDs, 29 flash patterns, and a two-button cigar plug so you can power up and change patterns from the cab.
- Compact footprint: 9.88" L × 6.69" W × 1.65" D
- Magnetic mount with suction-cup assistance for steel-roof applications
- Cigarette-plug power included; hardwire later off the same fixture
- 12–24V DC · 40W peak · 3.33A max at 12V · 4A fuse
- 29 flash patterns, including split patterns, cruise/steady, and multi-unit sync
- Low-power mode on the white wire
- Colors: red (RL-RCN-MM-R), blue (RL-RCN-MM-B), amber (RL-RCN-MM-A)
Specs that matter
| Spec | Recon Compact Magnetic Mini-Bar |
|---|---|
| Part numbers |
RL-RCN-MM-R / RL-RCN-MM-B / RL-RCN-MM-A |
| LED color | Red, blue, or amber behind a clear lens |
| Dimensions (L × W × D) | 9.88" × 6.69" × 1.65" |
| Power | 12–24V DC |
| Peak wattage | 40W |
| Max amp draw @ 12V | 3.33A |
| Fuse rating @ 12V | 4A |
| Flash patterns | 29, from the plug or the yellow wire |
| Mount | Magnetic base with suction assist (steel roof) |
| Power connection | 2-button cigar plug included; hardwire capable |
| Certifications | ECE R10, ECE R65 (TA1). Amber: SAE J845 Class 1 |
Install it like a grown-up
Out of the box: clean a steel roof, set the magnet and suction assist, run the cigar plug, hit on/off. Pattern button cycles the 29 patterns. Three quick presses jumps back to pattern 1.
When you make it permanent, the four-wire cable is already there: red to fused +VDC, black to chassis ground, white for low power, yellow for pattern select and sync. Tie yellow wires together across units and set them to the same pattern if you want them talking.
One rule, no hedging: a magnetically mounted warning device on the outside of a vehicle in motion is not recommended and is the user’s responsibility. Recon is built for temporary and quick-install work on a suitable steel surface. If the truck is going down the road at response speed on a permanent basis, plan the hardwire and a mount that belongs there.
Do not stare into the LEDs. They are there so other people see you.
Where Recon sits in the Redline lineup
Recon is the grab-and-go bar. Need interior windshield coverage with no backflash? That’s the Explorer. Building a full programmable roof presence? Instinct. Perimeter modules, hideaways, traffic directors, and sirens fill in the rest.
Start with the light that gets you seen. Build the rest when the truck, and the budget, are ready. That is the point of Redline: spec what fits the vehicle, the mission, and the money coming out of your own pocket.
Why this one, not the bargain bin
Volunteer firefighters are used to being told to make do. Cheap bars that look “pro enough” in a photo and fold up on the first real winter. Legacy names designed for a career-department PO, not a Saturday in the driveway.
Redline does not win by being the loudest catalog or the lowest cart total. It wins because it is built by firefighters who live the same grind, backed by the company already trusted on fire apparatus, and supported by a team that will actually pick up the phone.
- Authenticity: by firefighters, for firefighters
- Readiness: a roof signature you can put on the truck the same day the pager gets real
- Identity: gear that signals you take the job seriously, without waiting for the department to buy it for you
The Recon is not the whole Redline story. It is the first chapter a lot of volunteers will actually use.
Get one on the roof
The Redline Recon Compact Magnetic Mini-Bar is live now at firetechlights.com/products/redline-recon. Pick red, blue, or amber. Read the manual. Check your state’s rules on POV warning lights before you light it up.
Then put it on the truck you actually drive. No Doubt About It.
Built for the work. Backed by the details. Redline by FireTech.
